Overview

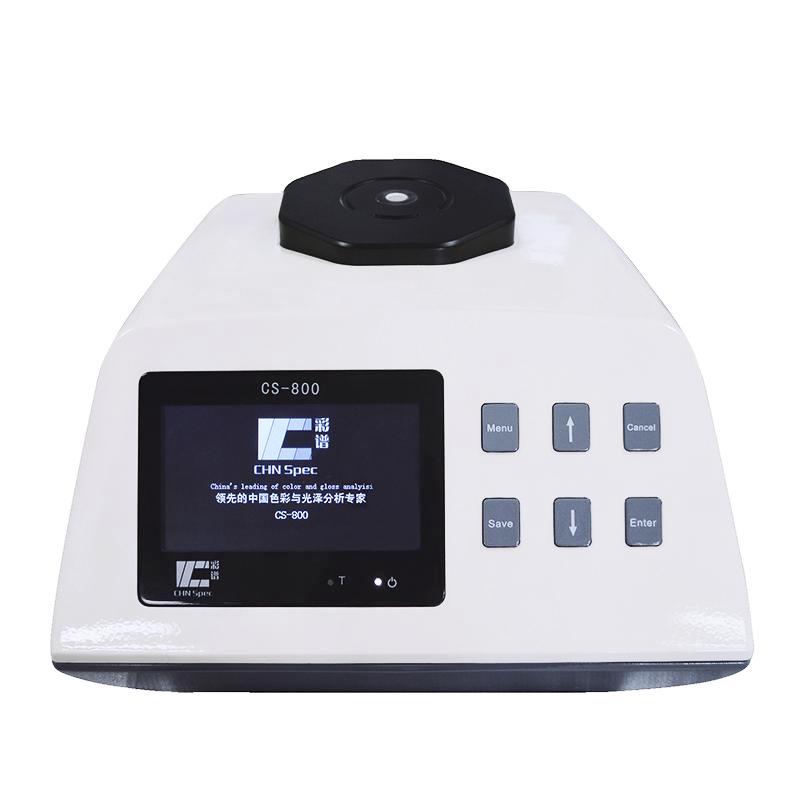

CHNSPEC CS-800C Benchtop 45/0 Colorimeter is a professional Color measuring instrument with 45/0 structure (45 ° ring illumination, 0 ° viewing angle), compatible with 60 ° gloss measurement, suitable for solid, particle, powder, paste and other samples. The instrument complies with CIE, ISO, ASTM, DIN and other international standards, standard Color management software, supports Data storage and report generation, and improves the digitalization level of Color management.
Features
1. With 45/0 construction, the circular lighting system eliminates direction dependence, improves accuracy and Repeatability, and is suitable for matte, textured and structured material surfaces.
2. Compatible with 60 ° gloss measurement, built-in High Accuracy Gloss Sensor, to achieve simultaneous measurement of Color and Gloss.
3. Loaded measurement design, test port facing up, convenient measurement of solid, granular, powder, paste and other samples.
4. Meet CIE, ISO, ASTM, DIN and other international Color measurement standards, to achieve professional level.
5. Color management software is standard, which supports quality monitoring, data management, historical data comparison, and test report generation.
6. After each instrument leaves the factory, it is sent to the trusted verification department for Measurement verification, and the data Traceability is sent to the National Measurement Institute to ensure the credibility of the test data.
7. High-capacity rechargeable lithium battery, high-resolution full-color real-color large screen, USB and Bluetooth connection, configurable micro-printer to enhance customer experience.
Principle
The instrument adopts a 45/0 structure, that is, a 45 ° ring illumination and a 0 ° observation angle. The sample reflectance is measured through a high-Sensitivity Silicon Photodiode Sensor and LED Available Light Sources. The built-in Gloss measurement Sensor realizes gloss measurement, and the data is transmitted to the software via USB or Bluetooth. It supports multiple color space and Color difference formula calculations.
Applications
Solid, granular, powder, paste sample measurement, sheet, cloth, tablet, Masterbatch, pigment, coffee, ketchup, etc
Standards
CIE-15-2004、ASTM-D523、ASTM-D2244、ASTM D2457
Steps
1. Place the sample on the test port, the solid sample is placed directly, and the granular, powder, and paste samples are placed in the Cuvette and then placed.
2. Turn on the instrument and select Measurement mode and parameters.
3. Carry out measurement, the instrument automatically collects Color and Gloss data.
4. Data can be transferred to computer software via USB or Bluetooth for storage, comparison, and report generation.
5. Optional micro printer can print test data directly.
Notice
• The operating environment should be kept at 0-45 ° C, with a relative humidity of 80% or less (35 ° C) to avoid condensation of water vapor.
• The instrument uses a rechargeable lithium battery with repeatability to ensure sufficient power.
• Make sure the sample and test port are clean before measurement to avoid contamination affecting the accuracy.
• Regularly calibrate and maintain instruments to ensure measurement accuracy.
• The data storage capacity is 20,000 pieces, and the data is exported and backed up in time.
