Overview

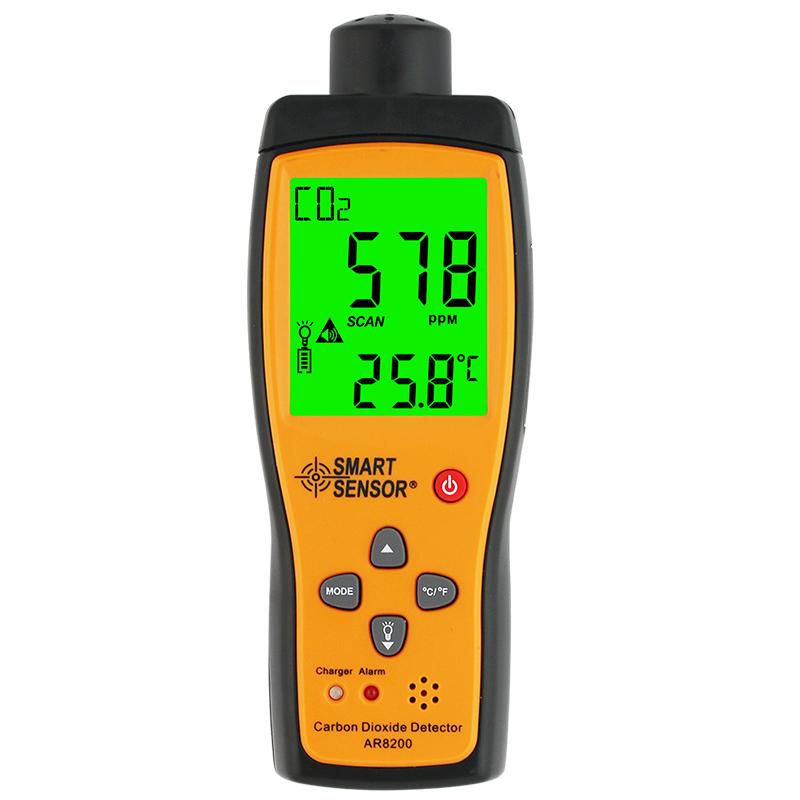

The SMART SENSOR AR8200 Carbon Dioxide Detector is a Portable Gas detection device designed to detect CO2 gas concentrations. The instrument has a range of 350~ 9999ppm and features high resolution, fast Response and sound and light alarm for carbon dioxide concentration monitoring in a variety of environments.
Features
1. The detection gas is CO2, the range is 350~ 9999ppm, the resolution is 5ppm, and the intrinsic error is +/- (30PPM + 5% reading).
Response Time is about 90 seconds and Recovery Time is less than 120 seconds to ensure fast detection.
3. Alarm mode includes sound and light alarm to remind users in time.
4. Ambient Temperature -10~ 50 ℃, Humidity 0~ 95% RH no condensation, adaptability.

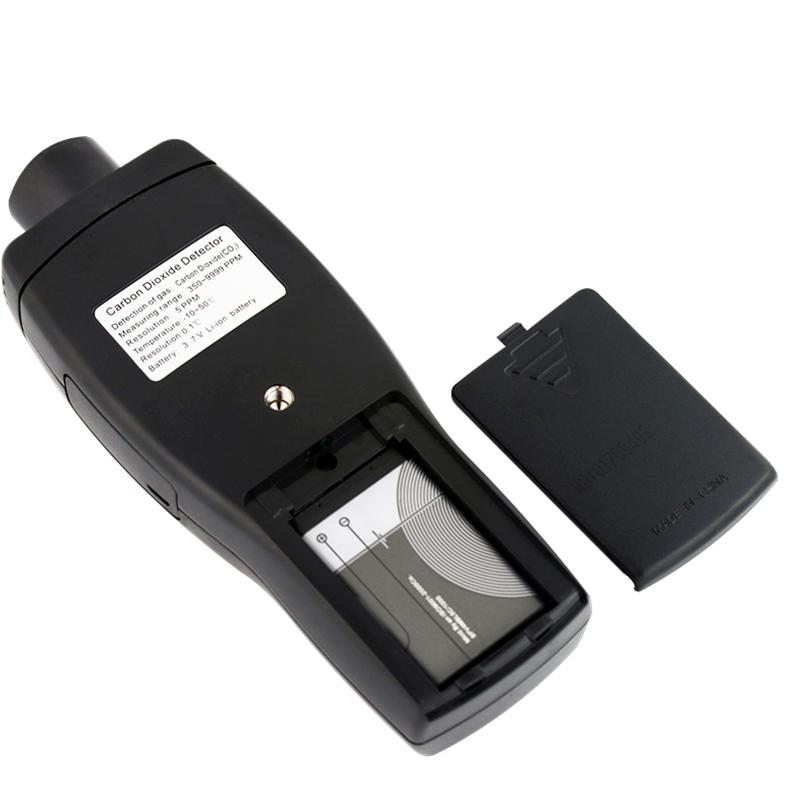

5. Built-in temperature measurement function, power supply is 3.7V lithium battery, portable and lightweight, weight 170 grams, Dimension 177 * 63 * 30mm.
Principle
The detector detects the concentration of carbon dioxide gas in the environment through the built-in Sensor, converts the detected signal into an electrical signal, and displays the concentration value on the display screen after processing. When the concentration exceeds a preset threshold, the sound and light alarm system is triggered.
Applications
Industrial safety, environment monitoring, indoor air mass testing, laboratory research
Steps
1. Turn on the power switch of the device.
2. Wait for the equipment to self-test and enter the working state.
3. Place the detector in the test environment and observe the CO2 concentration reading on the display screen.
4. If the concentration exceeds the standard, the equipment will issue a sound and light alarm and take corresponding measures in time.
5. Turn off the power after use.
Notice
• Avoid long-term use in extreme temperatures or Humidity environments to prevent accuracy.
Periodically calibrate equipment to ensure measurement accuracy.

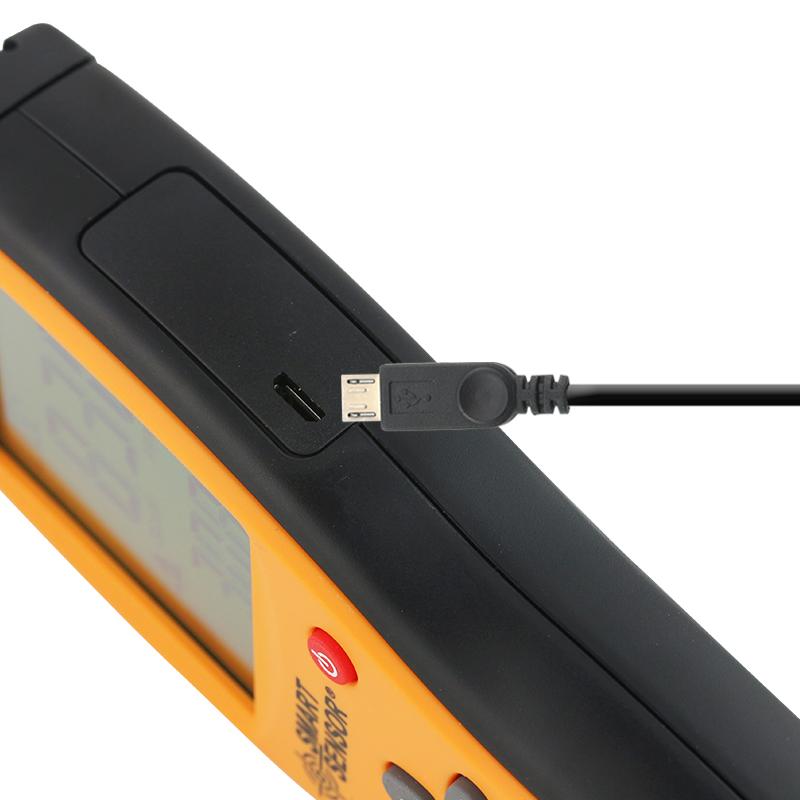

• Pay attention to the battery power when using it and charge it in time.
• Keep the Sensor clean to avoid clogging or contamination.
Please immediately check the environment and take safety measures when calling the police.
