Overview

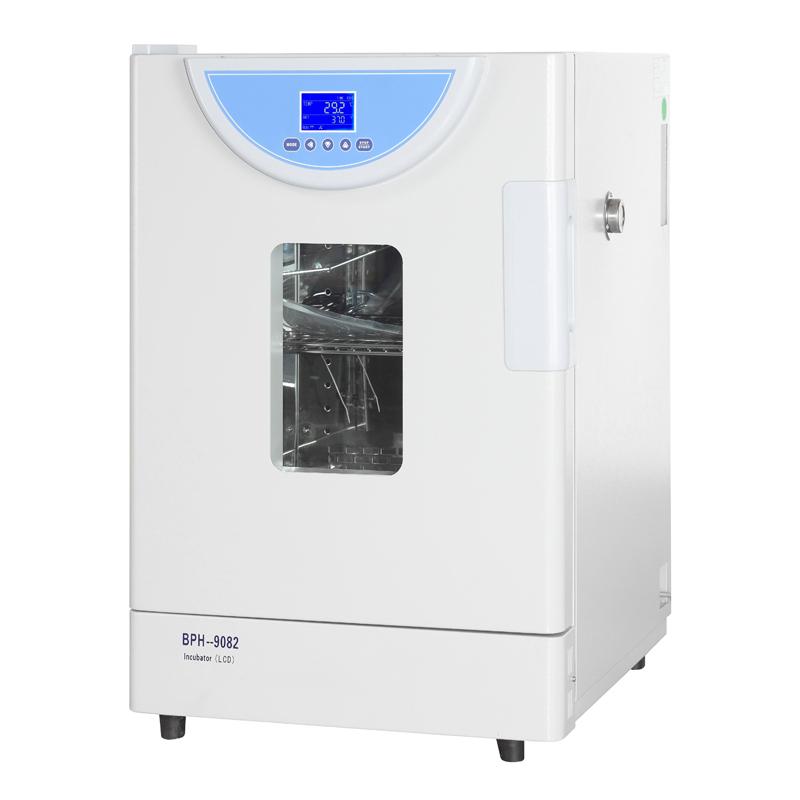

YIHENG BPH-9042 Precision thermostatic incubator is a professional thermostatic equipment with mirror stainless steel liner. Temperature range RT + 5~ 80 ℃, Temperature resolution 0.1 ℃, Fluctuation +/- 0.2 ℃. Equipped with a large LCD screen and a unique air duct circulation system to ensure Temperature uniformity, suitable for precision experimental environments such as cell foster.
Features
1. Humanized design: large screen LCD display multiple sets of data on one screen, menu Operating interface is simple and easy to understand; mirror stainless steel liner four corners and half arc transition, shelf bracket free loading and unloading for easy cleaning; unique air duct circulation system to ensure uniform temperature; 25mm test hole on the right side of the box for easy wiring
2. Precise temperature control: Fuzzy PID controller has accurate temperature control and small fluctuations, with timing function (maximum 99 hours and 59 minutes); multi-stage programmable control realizes automatic operation
3. Intelligent wind speed control: the speed of the circulating fan is automatically adjusted, and the wind speed is reduced when thermostatic to avoid sample volatilization
4. Self-diagnosis function: the LCD screen displays fault information when the fault occurs
5. Data processing function (optional): can be connected to printer, 485 Communication interface or USB interface, support data storage and playback
6. Safety protection: independent temperature limit alarm system (optional), sound and light alarm prompt, high/low temperature and over-temperature alarm
7. Advanced programming: Multi-stage programmable controller, can set temperature, wind speed, time and heating rate, support 7 groups of 63-step Program settings
8. UV sterilization system (optional): regular disinfection to prevent cell fostering contamination
Principle
The fuzzy PID controller is used to precisely adjust the temperature, and the unique air duct circulation system ensures uniform temperature distribution in the studio. The circulating fan speed can be automatically adjusted according to the thermostatic state, and the wind speed can be reduced to adapt to the needs of cell growth when thermostatic. The system has multi-stage programming function, and complex temperature control programs can be preset for automatic operation.
Applications
Cell fostering, biological experiment, scientific research and teaching, pharmaceutical research and development
Steps
1. Connect the AC220V power supply
2. Operating interface settings such as temperature and time
3. Set up multi-stage programming programs as needed (up to 7 groups of 63 steps)
4. Start the device running
5. Monitor the running status through the LCD screen
6. Clean the liner after use
Notice
• Ambient Temperature should be kept within the range of + 5~ 35 ℃
• Regularly clean the inside of the box, and use the removable shelf bracket to facilitate cleaning
• Pay attention to the alarm prompt and deal with the temperature abnormality in time
• Optional functions need to be selected according to actual needs (U disk, RS485/232, printer choose one of three)
• Follow the instructions when using the UV sterilization system (optional)
• Use the 25mm test hole on the right side of the box when wiring, and pay attention to safety specifications
