Overview

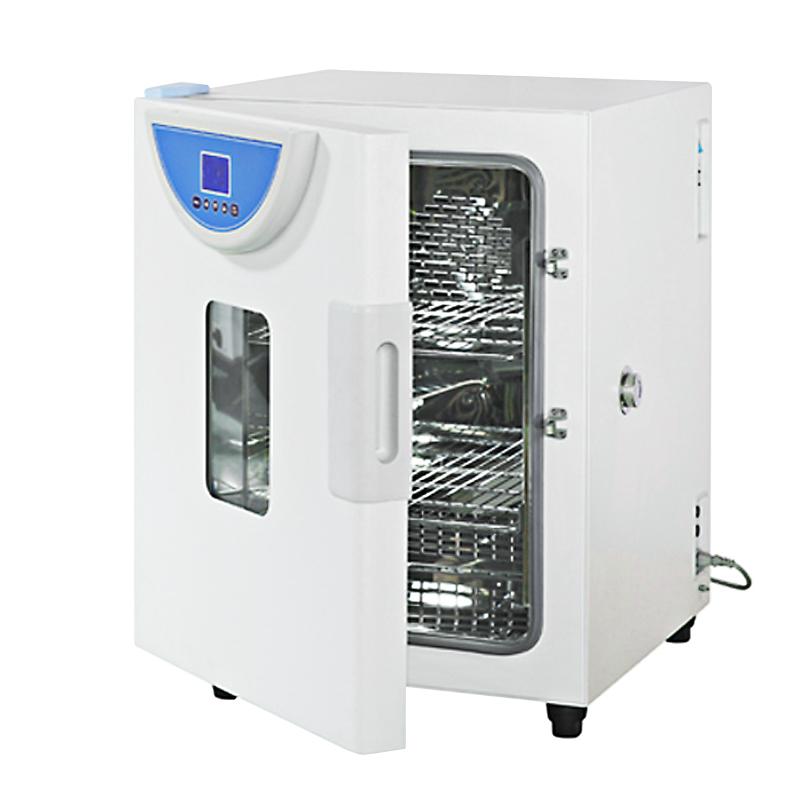

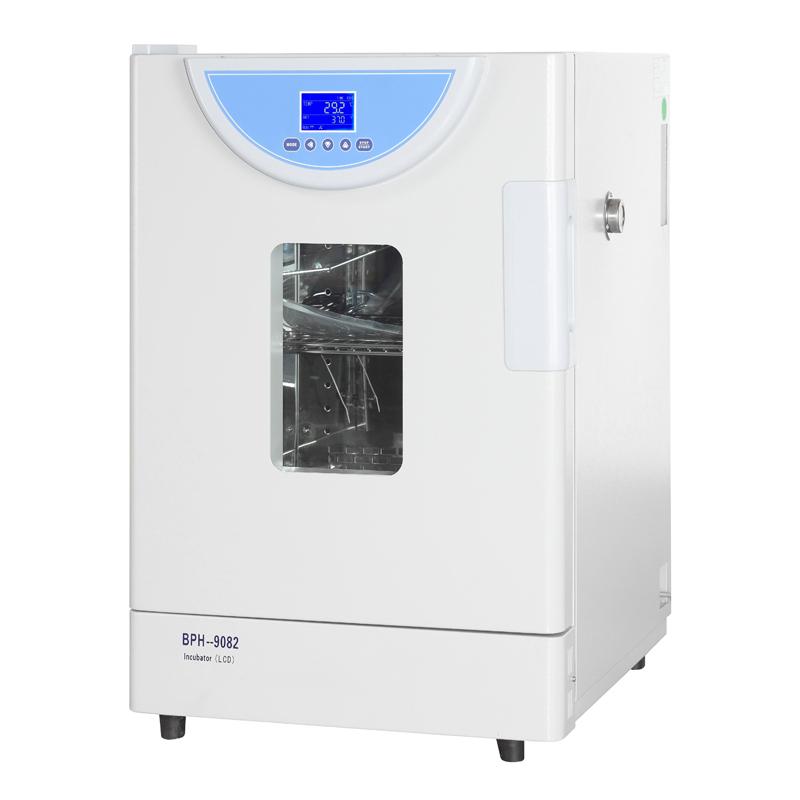

The YIHENG BPH-9082 Precision thermostatic incubator is a professional device with a mirrored stainless steel liner and an intelligent Control system that provides precise temperature control and uniform temperature distribution for scientific experiments such as cell fostering.
Features

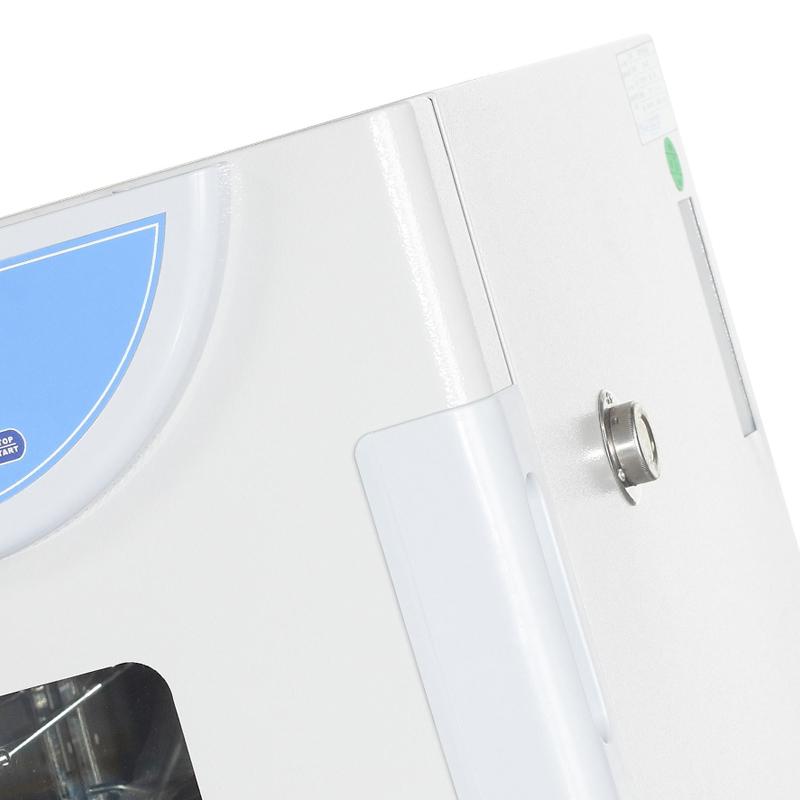

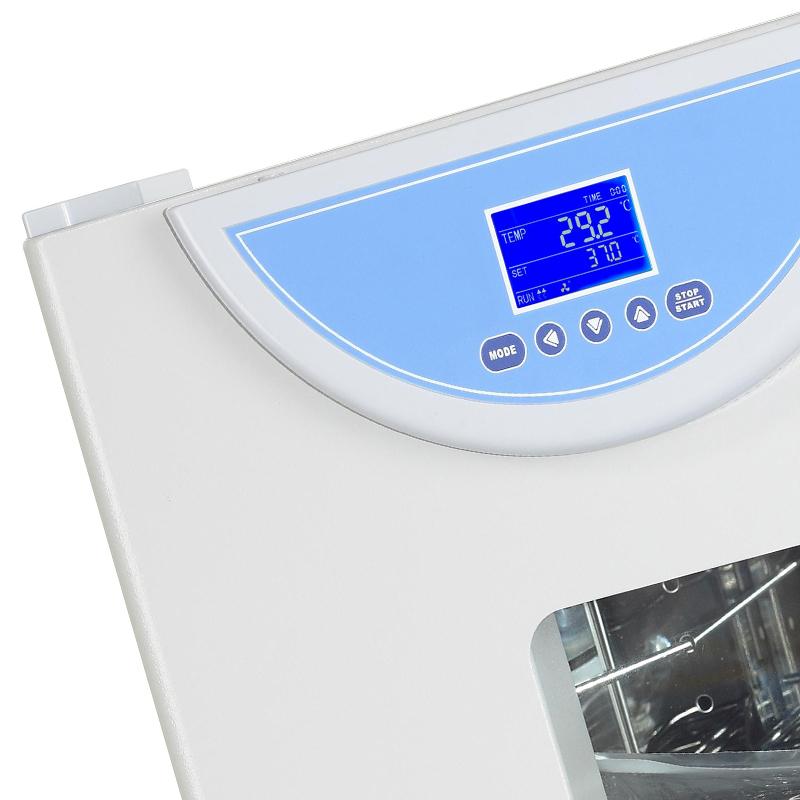

1. Humanized design: large LCD screen, multiple sets of data one-screen display, menu Operating interface; Mirror stainless steel liner, four corners and half arc transition, shelf bracket can be freely loaded and unloaded; unique air duct circulation system to ensure uniform temperature; The right side of the box is equipped with 25mm test hole.
2. Quality assurance: Fuzzy PID controller, with accurate temperature control and small fluctuations, with timing function, the maximum time setting value is 99 hours and 59 minutes; multi-stage programmable control to achieve automatic control and operation.
3. Automatic control of circulating fan speed: the speed is automatically adjusted, and the wind speed is reduced when thermostatic to avoid sample volatilization.
4. Self-diagnosis function: When the LCD screen malfunctions, the fault information appears.
5. Convenient data processing (optional): can be connected to the printer or 485 Communication interface, USB data transfer interface, support computer and printer to record temperature and time.
6. Safety function (optional): independent temperature limit alarm system, sound and light alarm prompt; high temperature, low temperature and over-temperature alarm.
7. Multi-segment programmable controller: multi-segment LCD programmable, a variety of parameters can be displayed on one screen; temperature, circulating wind speed, time, heating rate and other parameters can be set; 7 sets of 63 steps can be programmed, each set of 9 steps, setting time 0~ 5999 minutes.
8. Ultraviolet sterilization system (optional): regularly disinfect the inside of the box to kill floating bacteria and prevent contamination.
Principle
The incubator precisely adjusts the temperature with a fuzzy PID controller, combined with a unique air duct circulation system to ensure uniform temperature in the studio. The circulating fan speed is automatically controlled to reduce the wind speed in the thermostatic state to adapt to the needs of cell growth. The multi-stage programmable controller allows the user to set complex parameters for automatic operation and layer heating.
Applications
Cell fostering, scientific experiments
Steps
1. Connect the power supply to AC 220V 50Hz.
2. Set temperature, time and other parameters through the large-screen LCD screen and menu Operating interface.
3. Load and unload shelf brackets and place samples as needed.
4. Start the device, and the system automatically controls the temperature and fan speed.
5. Optional data processing function, connect the printer or USB interface to record data.
6. After use, clean the studio.
Notice
• Ambient Temperature should be maintained at + 5~ 35 ℃.
• To avoid sample volatilization caused by excessive air volume, the system automatically adjusts the wind speed.
• When malfunctioning, pay attention to the fault information prompt of the LCD screen.
• Optional functions such as independent temperature limit alarm and UV sterilization system require additional configuration.
• You can only choose one of three U disks, RS485/232, and printers among the options.
• Regularly clean the liner to prevent contamination.
