Overview

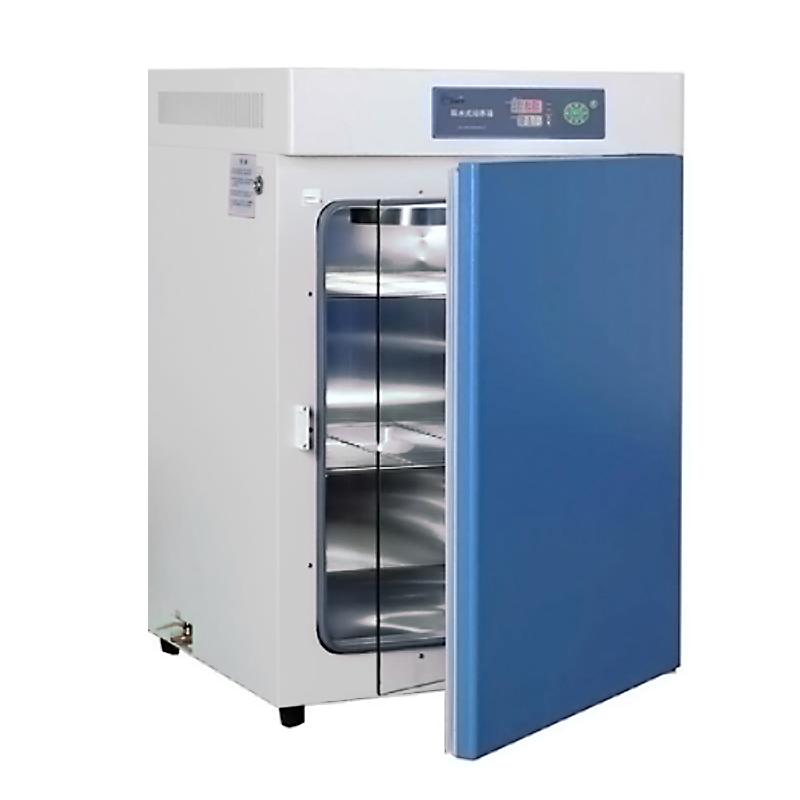

YIHENG GHP-9160 Water-Jacketed thermostatic incubator adopts Water-jacketed Heating mode, Temperature range is RT + 5~ 65 ℃, Temperature Fluctuation is +/- 0.3 ℃, Uniformity is +/- 0.5 ℃ (37 ℃). The product volume is 160L, and the liner size is 500 * 500 * 650mm. The design is user-friendly for easy cleaning and operation.
Features
1. Humanized design: brushed stainless steel liner, four corners and half circle arc transition, shelf free loading and unloading; Water-Jacketed heating to ensure uniform temperature, after power off can still maintain thermostatic; Glass door inside the box for easy observation, open the door automatically suspend work and cut off heating and circulation fan; Microcomputer controller with self-tuning PID technology, to avoid temperature overshoot, support temperature, water level and door alarm.
2. Automatic control of circulating fan speed: automatically adjust the wind speed according to the temperature state to avoid sample volatilization.
3. LCD multi-segment programmable controller (with "N" model): multi-segment parameter one-screen display, menu-type Operating interface, can set temperature, circulating wind speed, time, heating rate, etc., support layer control and automatic switch function.
4. Safety function: independent temperature limit alarm system, sound and light alarm prompt; support low temperature, high temperature, over temperature, water shortage and long door opening time alarm.
5. Ultraviolet sterilization system (optional): can be regularly disinfected to prevent cell fostering contamination.
Principle
The incubator uses Water-Jacketed Heating mode, which ensures uniform temperature in the studio through Water-jacketed structure, and can still maintain thermostatic after power failure. The microcomputer controller uses self-tuning PID technology to precisely control the temperature and avoid sudden changes. The circulating fan speed automatically adjusts according to the temperature to optimize the cell growth environment.
Applications
Cell fostering, microbial fostering, biological experiments, medical research
Notice
• Ambient Temperature should be maintained at + 5~ 35 ℃.
• The incubator automatically suspends work when opening the door, and attention should be paid to operation safety.
• Check the water level before use to avoid water shortage alarms.
• When selecting an ultraviolet sterilization system, regular disinfection is required to prevent contamination.
• RS485/232 and printer are two options, pay attention to the choice.
