Overview

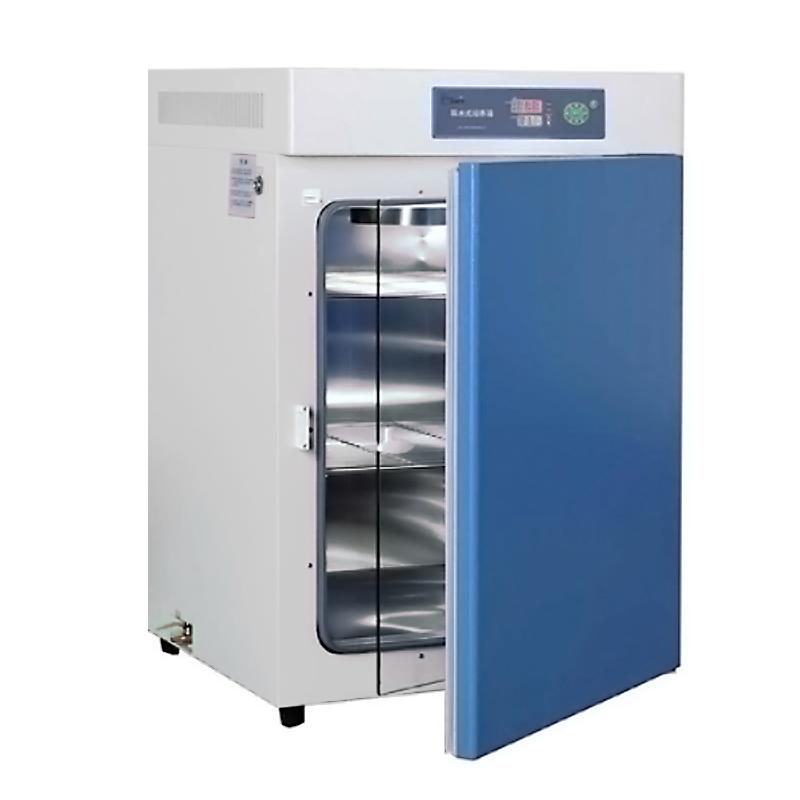

YIHENG GHP-9160N Water-Jacketed thermostatic incubator adopts Water-jacketed Heating mode, Temperature range is RT + 5~ 65 ℃, Temperature resolution 0.1 ℃, Fluctuation +/- 0.3 ℃, Uniformity +/- 0.5 ℃ (37 ℃). The device has user-friendly design, automatic fan control, multi-stage programmable controller and security alarm function, suitable for thermostatic experiments such as cell foster.
Features
1. Humanized design: brushed stainless steel liner, four corners and a half arc transition, shelf free loading and unloading; Water-Jacketed heating to ensure uniform temperature and long-term thermostatic after power failure; Glass door can be opened at any time and automatically suspend work; Microcomputer controller with self-tuning PID technology to avoid temperature overshoot.
2. Automatic control of circulating fan speed: automatically reduce the wind speed when thermostatic to avoid sample volatilization.
3. LCD multi-segment programmable controller: multi-segment parameter one-screen display, menu Operating interface; can set temperature, wind speed, time and heating rate, realize layer control and automatic switch machine.
4. Safety function: independent temperature limit alarm system, sound and light alarm; with low temperature, high temperature, over temperature, water shortage and long door opening time alarm.
5. Ultraviolet sterilization system (optional): regular disinfection to prevent cell fostering contamination.
Principle
The incubator features Water-Jacketed Heating mode, which evenly transfers heat through the water jacket, ensuring a stable temperature in the studio. The microcomputer controller utilizes self-tuning PID technology to precisely adjust the temperature and avoid overshoot. The circulating fan speed is automatically adjusted according to the temperature state, and the wind speed is reduced when thermostatic to reduce sample volatilization. The multi-segment programmable function allows the user to set complex parameters for automated operation.
Applications
Cell fostering, microbial fostering, biological experiment, medical research, laboratory thermostatic environment control
Steps
1. Connect the power supply to AC220V 50Hz.
2. Set parameters such as temperature, wind speed, and time through the LCD controller.
3. Program multi-stage temperature control or automatic switch function as required.
4. Start the device and monitor the running status.
5. After the experiment, turn off the power.
Notice
• Ambient Temperature should be maintained at + 5~ 35 ℃.
• When opening the door, the device automatically suspends work, and be careful to avoid opening the door for a long time.
• Regularly check the water level to prevent water shortage alarms.
• When using the optional UV sterilization system, follow the disinfection procedures.
• Power supply voltage AC220V 50Hz to avoid overload.
