Overview

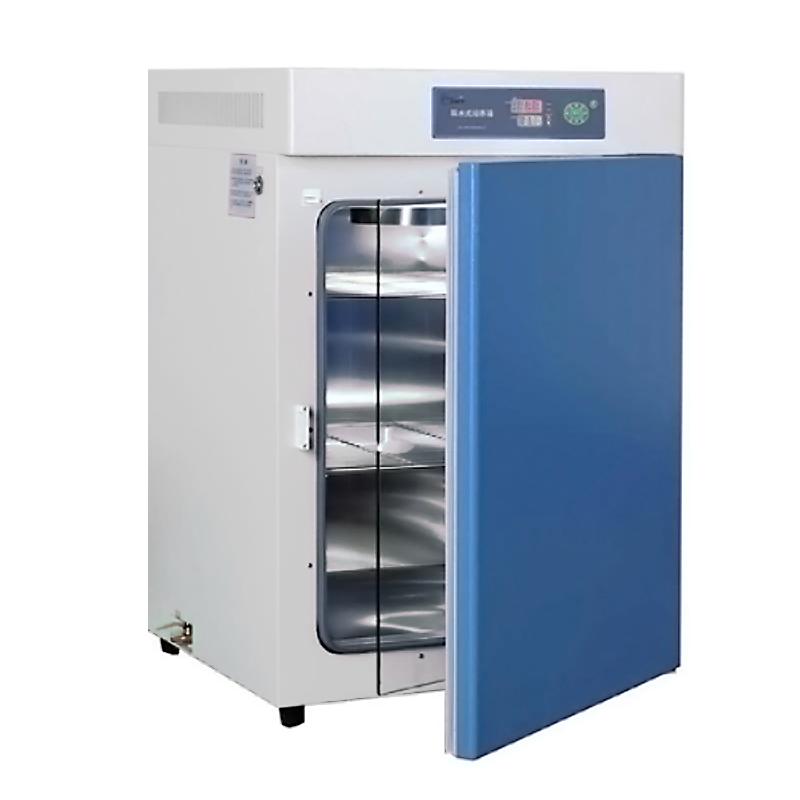

YIHENG GHP-9270 Water-Jacketed thermostatic incubator adopts Water-jacketed Heating mode, Temperature range is RT + 5~ 65 ℃, Temperature Fluctuation +/- 0.3 ℃, Uniformity +/- 0.5 ℃ (37 ℃). With user-friendly design, automatic cyclic wind speed control, multi-stage programmable controller and safety functions, it is suitable for experimental environments such as cell foster.
Features
1. Brushed stainless steel liner, four corners and half circle arc transition, free loading and unloading of shelves for easy cleaning
2. Water-Jacketed heating ensures uniform temperature and can still maintain thermostatic after power failure
3. Glass doors can be opened at any time, automatically suspend work and cut off heating and fan
4. Microcomputer controller with PID self-tuning, temperature, water level and door opening alarm function
5. Automatic control of circulating fan speed, reduce wind speed when thermostatic to avoid sample volatilization
6. Multi-stage programmable controller can set temperature, wind speed, time and heating rate
7. Independent temperature limit alarm system, with abnormal temperature, water shortage and long door opening alarms
8. Optional UV sterilization system to prevent cell fostering contamination
Principle
Adopt Water-Jacketed Heating mode to transfer heat evenly through the water jacket to ensure stable temperature in the studio. The microcomputer controller adopts PID self-tuning technology to precisely control the temperature, and the circulating fan speed is automatically adjusted according to the temperature state. Reduce the wind speed during thermostatic to protect the sample.
Applications
Cell fostering, microbial fostering, biological experiments, medical research
Steps
1. Connect the AC220V power supply
2. Set temperature, time and other parameters through the microcomputer controller
3. Place the sample on the shelf
4. Start the device and start working
5. Glass doors can be opened at any time during the experiment
6. Turn off the device after the experiment
Notice
• Ambient Temperature should be kept at + 5~ 35 ℃
• Pay attention to the water level alarm to avoid water shortage operation
The opening time should not be too long, otherwise the alarm will be triggered
• Regularly clean the studio to maintain hygiene
• Follow the instructions when selecting a UV sterilization system
• Power supply voltage AC220V 50Hz
