Overview

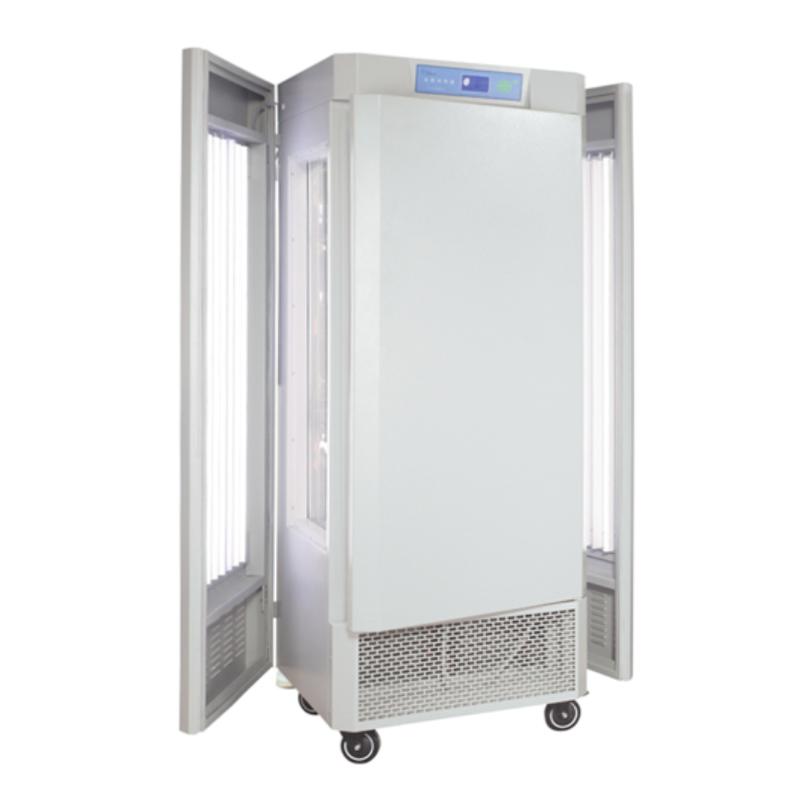

YIHENG LED Illuminant light chamber (model: MGC-100BP-2L) is a kind of special test equipment suitable for plant growth and tissue fostering, seed germination, seedling raising, microbial fostering test, insect small animal feeding, water quality monitoring BOD determination, medicinal materials wood building materials aging and service life test, etc., providing light, thermostatic, constant humidity environment.
Features
1. Humanized design: fluorine-free green environmental protection, touch button menu operation, mirror stainless steel liner easy to clean, large-screen LCD display, 30 sets of programs can be set.
2. LED Illuminant Advantages: No Thermal Interference, Energy Saving and Environmental Protection, Small Size, Long Stable Life, Fast Response Speed.
3. Intelligent control technology: simulate natural temperature changes and Illuminant, power outage automatic storage parameters, automatic control of circulating wind speed, equipped with LED Illuminant suitable for plant growth.
4. Intelligent multi-stage programmable control: Program control temperature, Humidity, Illumrination degree, time, to achieve automatic operation.
5. Continuous operation technology: two sets of Compressors are automatically switched in turn to ensure long-term operation.
6. Safety functions: independent temperature limit alarm, fault information display, temperature alarm.
7. Data Control system: RS485 or USB interface and software, support data recording, communication, graphic display, failure analysis.
Principle
The device provides light without thermal interference through LED Illuminant, combined with intelligent Control system to simulate the temperature, Humidity and light changes of the natural environment, and uses two sets of Compressors to automatically switch to achieve continuous operation to ensure stable experimental conditions.
Applications
Plant growth and tissue fostering, seed germination, seedling raising, microbial fostering test, insect and small animal feeding, water quality monitoring BOD determination, medicinal materials wood building materials aging and service life test
Steps
1. Perform menu operation by touching the button to set parameters such as temperature, Humidity, Illumrination degree, etc.
2. Programmable to set up to 30 sets of programs, each with a time range of 1 to 99 hours and 59 minutes.
3. Start the equipment, automatically control the operation, and monitor the experimental process.
Notice
• Equipment Ambient Temperature should be + 5~ 30 ℃.
• Avoid blowing down plant seedlings with too fast circulating wind speed.
• Pay attention to the temperature limit alarm system to prevent the temperature from exceeding the limit.
• Check the fault information of the LCD screen when it fails.
• Optional features such as CO2 controller require additional configuration.
