Overview

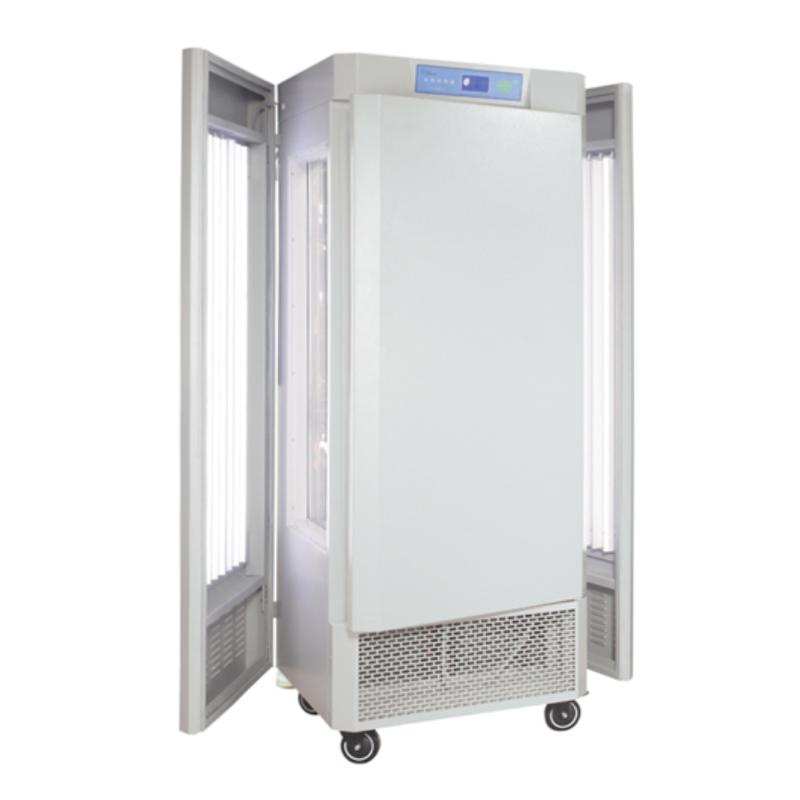

YIHENG MGC-450BP-2L LED Illuminant light chamber is a special test equipment suitable for plant growth and tissue fostering, seed germination, seedling raising, microbial fostering test, insect small animal feeding, water quality monitoring BOD determination, medicinal materials wood building materials aging test and other fields. It provides light, thermostatic, constant humidity environment, support long-term continuous operation.
Features
1. Humanized design: fluorine-free environmental protection, touch button menu operation, mirror stainless steel liner easy to clean, large-screen LCD display, 30 sets of programs can be set.
2. LED Illuminant Advantages: No Thermal Interference, Energy Saving and Environmental Protection, Small Size, Long Stable Life, Fast Response Speed.
3. Intelligent control technology: simulate natural temperature changes and Illuminant, automatic storage of parameter power failure, automatic control of circulating wind speed, equipped with LED Illuminant suitable for plant growth.
4. Intelligent multi-stage programmable control: Program control temperature, Humidity, Illumrination degree, time, to achieve automatic operation.
5. Continuous operation technology: two sets of Compressors are automatically switched in turn to ensure long-term operation.
6. Safety functions: independent temperature limit alarm, fault information display, temperature alarm.
7. Data Control system: RS485 or USB interface, data recording, graphic display, failure analysis, printer system meets GMP standards.
Principle
The LED lighting chamber provides heat-free and energy-saving light through the LED Illuminant. Combined with the intelligent Control system to simulate the natural environment and multi-stage programs, it automatically adjusts the temperature, Humidity, Illumrination degree and time. Two sets of Compressors are used to switch in turn to achieve continuous operation to ensure experimental Stability and conformity.
Applications
Plant growth and tissue fostering, seed germination, seedling raising, microbial fostering test, insect small animal feeding, water quality monitoring BOD determination, medicinal materials wood building materials aging test
Steps
1. Connect the power supply and turn on the device.
2. Set parameters such as temperature, Humidity, Illumrination degree by touching the button, and programmable 30 sets of programs.
3. Start operation, the equipment automatically controls environmental conditions.
4. Monitor the running status, and check the LCD screen information if there is any failure.
5. Turn off the equipment after the experiment.
Notice
• Equipment Ambient Temperature should be in the range of + 5~ 30 ℃.
• Avoid blowing down plant seedlings with too fast circulating wind speed.
• Regularly clean the liner and disinfect with a tool removable Shelf.
• Optional features such as CO2 controller require additional configuration.
• The parameters are automatically stored during a power outage, and the original program is restored after power on.
• Pay attention to the temperature limit alarm to ensure the safety of the experiment.
