Overview

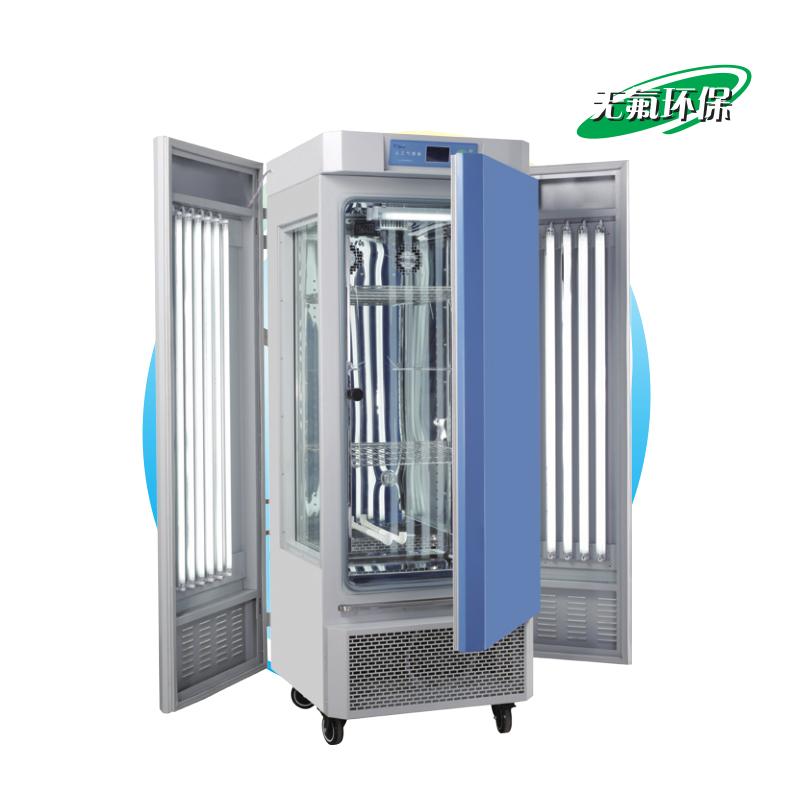

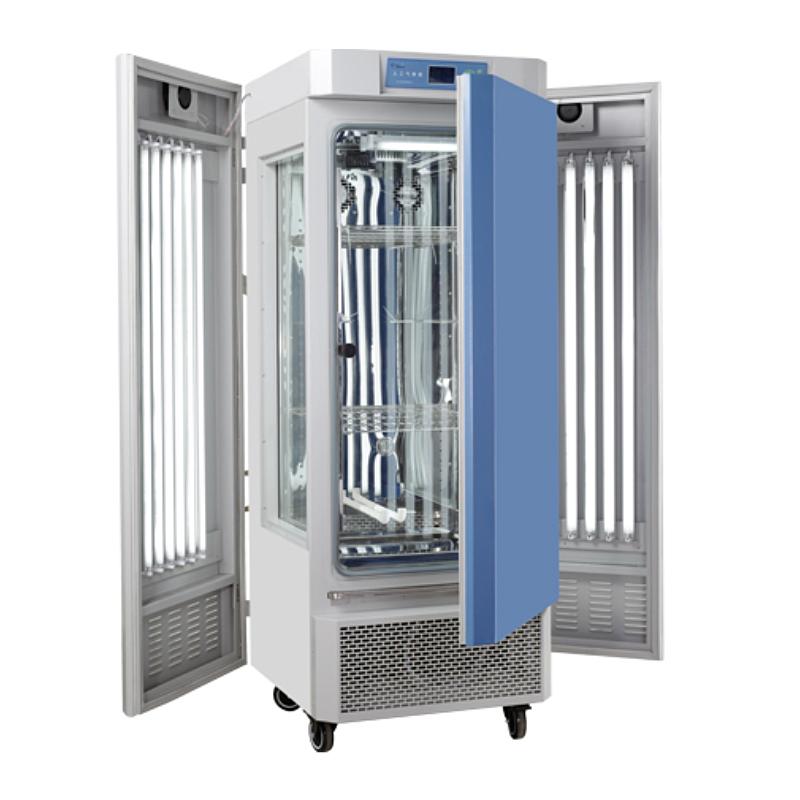

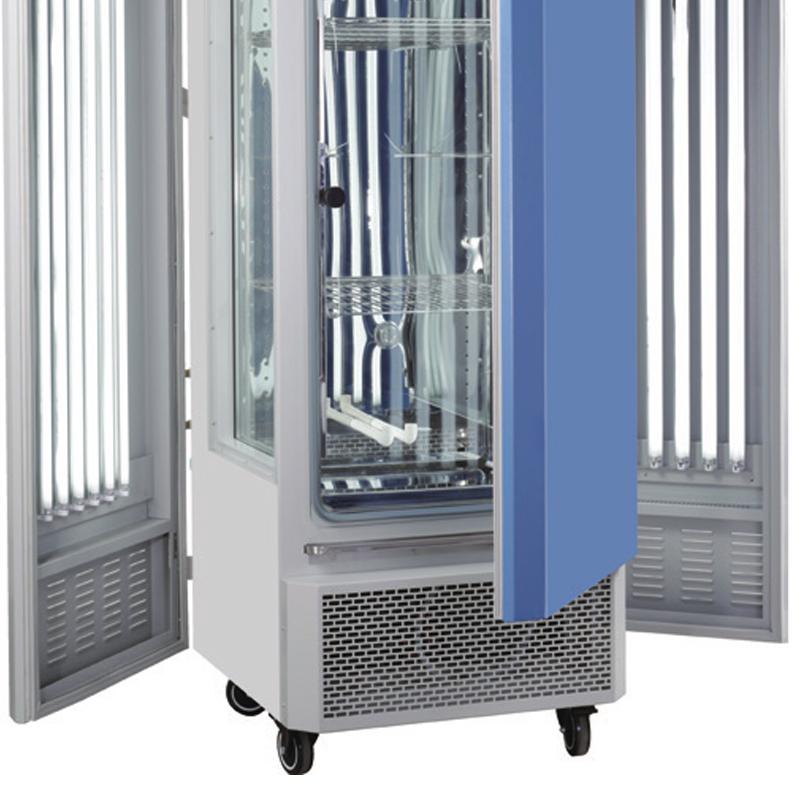

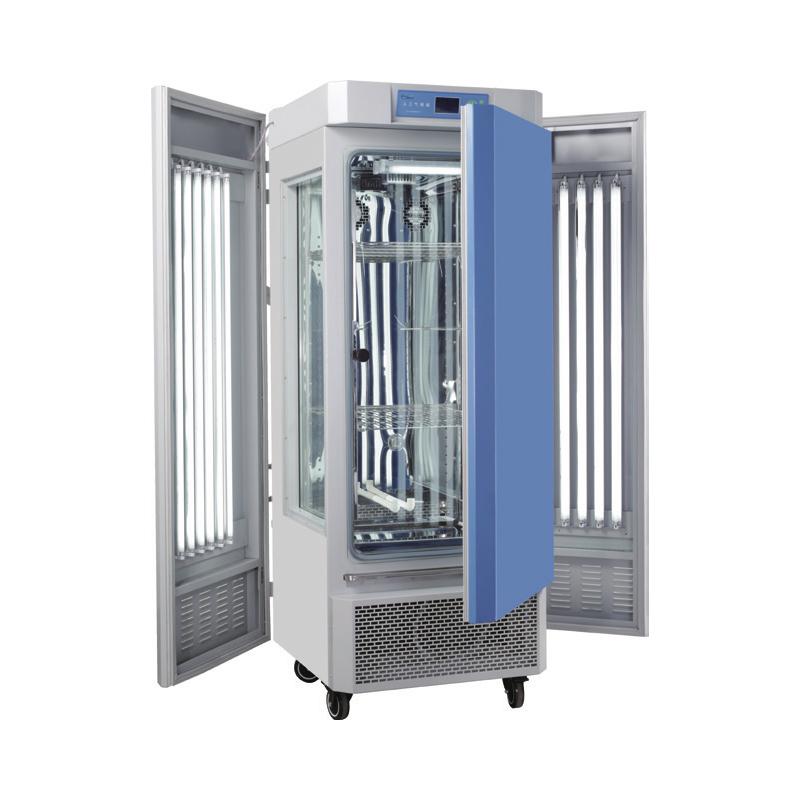

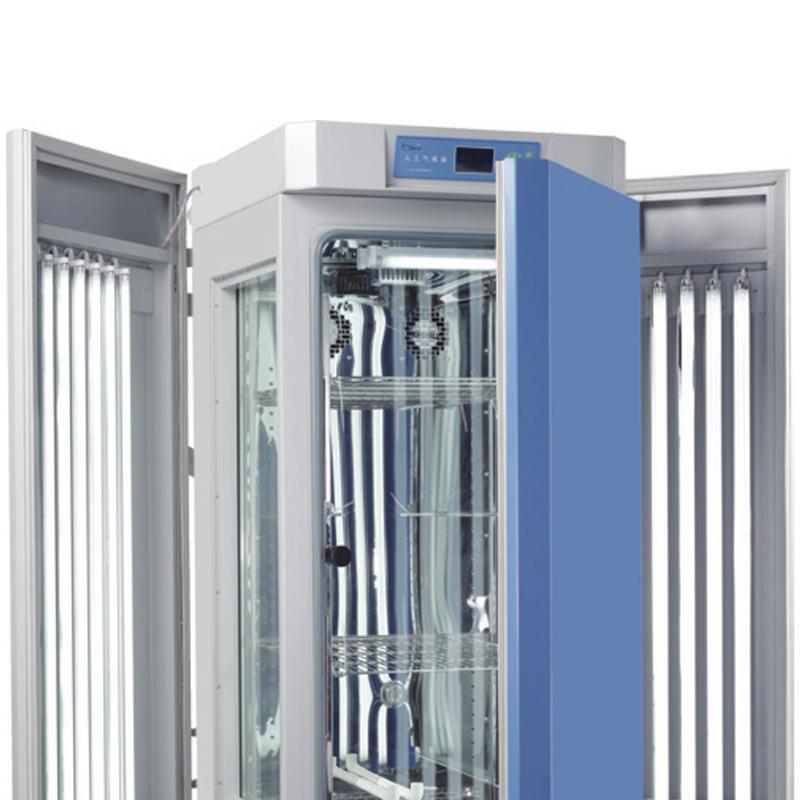

YIHENG MGC-350BP-2 light chamber is an intelligent programmable light chamber/Artificial climate box developed by the company's many years of experience in the field of constant temperature and humidity. It breaks through the defect that China equipment cannot operate continuously for a long time, supports uninterrupted operation for 3 to 6 months or more, and has the characteristics of safe, reliable, stable and long-term continuous operation.
Features
1. Continuous operation for a long time to ensure uninterrupted plant fostering.
2. Illumrination degree automatic control, reduce the impact of lamp aging.
3. Wireless alarm system, notification via SMS in case of failure.
4. CO2 concentration monitoring and control, the range can be selected from 0 to 10%.
5. Humanized design, including fluorine-free design, touch buttons and easy-to-clean liners.
6. Intelligent control technology to simulate natural temperature changes and Illuminants.
7. Multi-stage programmable control to simplify the complex testing process.
8. Self-diagnosis function, LCD display fault information.
9. Safety function, independent temperature limit alarm and sound and light prompt.
10. Data Control system is optional to support data recording and communication.
11. Shelf lighting system is optional to improve lighting uniformity and flexibility.
Principle
The light chamber simulates the temperature changes and multi-directional Illuminants of nature during the day and night through intelligent control technology, and uses two sets of imported Compressors to automatically switch to ensure long-term continuous operation. Illumrination degree is automatically monitored and controlled by light Sensor, CO2 concentration is quickly and accurately controlled by infrared Sensor, and the program can set temperature, Humidity, Illumrination degree and time to achieve automatic operation.
Applications
Plant fostering, crop research, seed germination, tissue fostering, environment simulation experiment
Steps
Connect the power supply and ensure that the voltage is AC 220V 50Hz.
2. Perform menu operation by touching the button to set temperature, Humidity, Illumrination degree and time parameters.
3. Select and start the program, and the device will run automatically.
4. Monitor the running status. If there is any failure, the LCD screen will display information.
5. When using optional features such as data logging or alarm systems, configure interfaces and software as required.
Notice
Equipment should be used at Ambient Temperature + 5~ 30 ℃.
• Avoid blowing down plant seedlings with too fast circulating wind speed.
• Regularly clean liners and Shelves to ensure hygiene.
• Optional functions such as U disk, RS485/232, and printer need to choose one of three.
• Check the alarm information and deal with it in time when the fault occurs.
• Check Compressor and system status before long operation.
