Overview

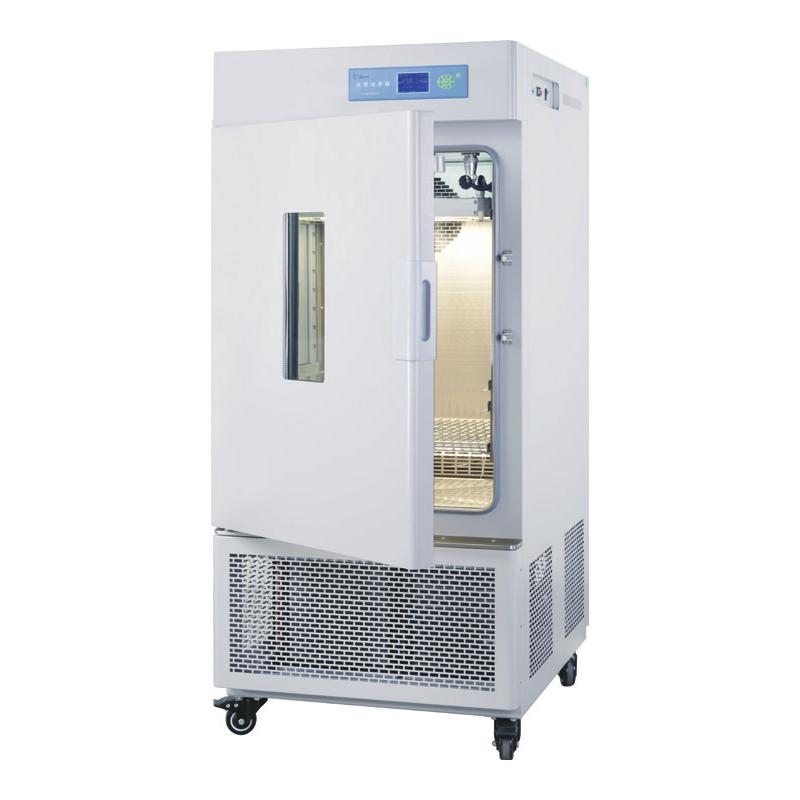

YIHENG MGC-800BP-2 light chamber is an intelligent programmable light chamber/Artificial climate box, combining the company's many years of successful experience in the field of constant temperature and humidity, breaking through the defects of the existing China light chamber can not run continuously for a long time, It has the characteristics of safety, reliability, stability and long-term continuous operation, and is suitable for scenes such as plant and crop foster that require uninterrupted operation for 3 to 6 months or longer.
Features
1. Continuous operation for a long time
2. Illumrination degree automatic control
3. Wireless alarm system
4. CO2 concentration monitoring and control
5. Humanized design: Fluorine-free design, touch button, mirror stainless steel liner, easy to remove Shelf
6. Intelligent Control Technology: Simulation of Natural Temperature Changes and Illuminants, Automatic Parameter Storage, Automatic Control of Circulating Wind Speed
7. Intelligent multi-stage programmable control: Program control Temperature, Humidity, Illumrination degree, Time
8. Self-diagnosis function: LCD screen fault information display
9. Safety function: independent temperature limit alarm system, high or low temperature alarm
10. Data Control system: RS485 or USB interface, data recording, graphic dynamic display, failure analysis
11. Shelf type lighting system: adjustable Shelf distance, multi-layer lighting, different lamp selection
12. Illumrination degree automatic detection and control: light sensing monitoring, reduce Illumrination degree attenuation
13. Wireless alarm system: SMS alarm, timely troubleshooting
14. CO2 concentration monitoring and control: Infrared Sensor, Fast Response, Reliable accuracy
Principle
The light chamber simulates the temperature changes and multi-directional Illuminants of nature during the day and night through an intelligent Control system, and uses two sets of imported Compressors to automatically switch to ensure long-term continuous operation. It uses light sensing for Illumrination degree monitoring and control to reduce Illumrination degree attenuation caused by lamp aging, and monitors CO2 concentration through infrared Sensor to quickly respond to changes and achieve precise control. User programmable setting of temperature, Humidity, Illumrination degree and time parameters, the system automatically runs and stores the settings to ensure stable and reliable test process.
Applications
Plant fostering, crop fostering, scientific research, laboratory experiments
Steps
1. Connect the power supply and ensure that the voltage is AC 380V 50Hz
2. Menu operation by touch button, set temperature, Humidity, Illumrination degree and time parameters
3. Adjust Shelf Distance and Light Level as Needed
4. Start the program, the system automatically runs and monitors the parameters
5. Use the data logging function (such as optional RS485 interface or printer) for data storage
6. During operation, check the fault information through the self-diagnosis function
7. After the operation, the Shelf in the removable box is disinfected and cleaned
Notice
• Ensure that the Working Ambient Temperature is within the range of + 5~ 30 ℃
• Power supply voltage check before use meets AC 380V 50Hz requirements
• Avoid Temperature range lower than 0 ° C when there is no light, and not lower than 10 ° C when there is light
• Regularly clean liners and Shelves to prevent contamination
• When selecting a wireless alarm system, make sure the mobile phone signal is normal to receive text messages
• Monitor Compressor and lighting system status during long operation
• When selecting a CO2 controller, pay attention to the selection of CO2 control range (0~ 1%, 0~ 2% or 0~ 10%)
• When using the data logging function, ensure that the interface connection is stable
• Avoid blowing down plant seedlings with too fast circulating wind speed, the system will automatically control the wind speed
