Overview

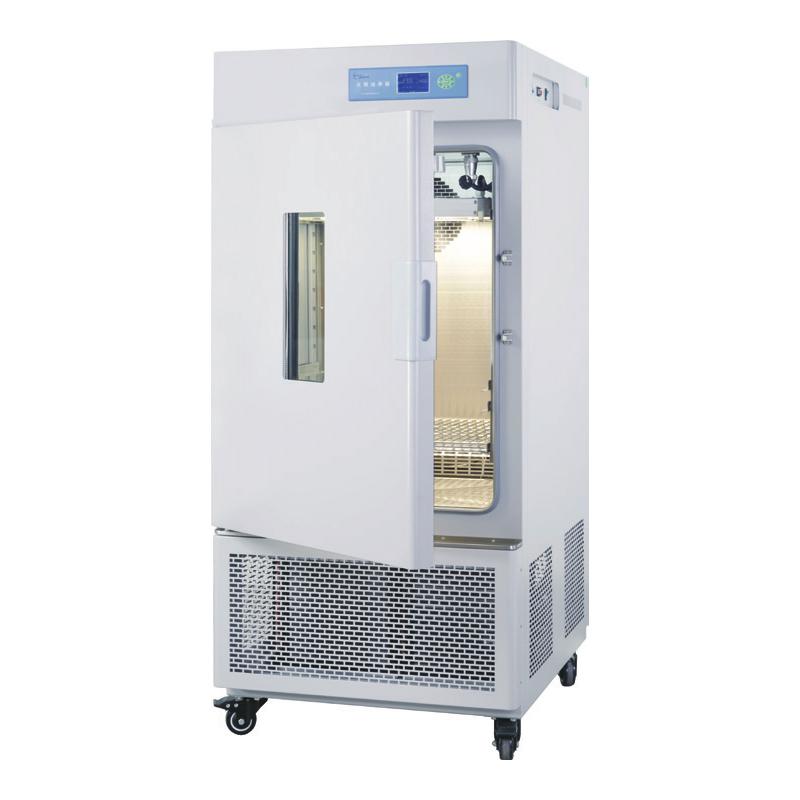

YIHENG MGC-1000BP-2 light chamber is an intelligent programmable light chamber/Artificial climate box, integrating the company's many years of successful experience in the field of constant temperature and humidity, breaking through the defects of the existing China light chamber can not run continuously for a long time, It has the characteristics of safety, reliability, stability and long-term continuous operation, and is suitable for long-term foster needs of plants and crops.
Features
1. Continuous operation for a long time
2. Illumrination degree automatic control
3. Wireless alarm system
4. CO2 concentration monitoring and control
5. Humanized design: fluorine-free design, touch button operation, mirror stainless steel liner
6. Intelligent Control Technology: Simulation of Natural Temperature Changes and Illuminants, Automatic Storage of Power Outage Parameters, Automatic Control of Circulating Wind Speed
7. Intelligent multi-stage programmable control: Program control Temperature, Humidity, Illumrination degree, Time
8. Continuous operation technology: two sets of imported Compressors automatically switch in turn
9. Self-diagnosis function: LCD screen fault information display
10. Safety function: independent temperature limit alarm system, high or low temperature alarm
11. Data Control system: RS485 or USB interface and software, data recording, graphic dynamic display, failure analysis
12. Shelf lighting system: adjustable Shelf distance, multi-layer lighting system, different lamp selection
13. Illumrination degree automatic detection and control: light sensing monitoring, reduce Illumrination degree attenuation
14. Wireless alarm system: SMS alarm, remote fault notification
15. CO2 concentration monitoring and control: Infrared Sensor, Fast Response, Reliable accuracy
Principle
The lighting chamber simulates the natural environment through an intelligent Control system, including changes in temperature, Humidity, Illumrination degree and time. Two sets of imported Compressors are automatically switched to ensure long-term continuous operation. Light sensing technology monitors and controls Illumrination degree, and infrared Sensor monitors CO2 concentration to achieve accurate environment control. The program can set multi-stage parameters to automatically run complex test processes.
Applications
Plant fostering, crop fostering, scientific research, laboratory experiments
Steps
1. Turn on the power supply and ensure that the voltage is AC 380V 50Hz
2. Menu operation by touching the button, setting parameters such as temperature, Humidity, Illumrination degree
3. 30 programs can be set, each setting time range is 1 to 99 hours and 59 minutes
4. Start operation, the equipment automatically controls the environment parameters
5. When using optional functions such as data logging or alarm system, configure according to the instructions
6. After the operation, turn off the power and perform cleaning and maintenance
Notice
• Ensure that the Working Ambient Temperature is within the range of + 5~ 30 ℃
• Check whether the Power supply voltage meets AC 380V requirements before use
• Avoid blowing down plant seedlings with too fast circulating wind speed
• Regularly clean liners and Shelves to prevent contamination
Optional features such as a wireless alarm system require additional configuration and testing
• Check the LCD screen information in case of failure and deal with it in time
• When selecting CO2 control, choose the appropriate range according to your needs
• Pay attention to the automatic switching state of the Compressor during long-term operation
• Options U disk, RS485/232, printer can only choose one of three
