Overview

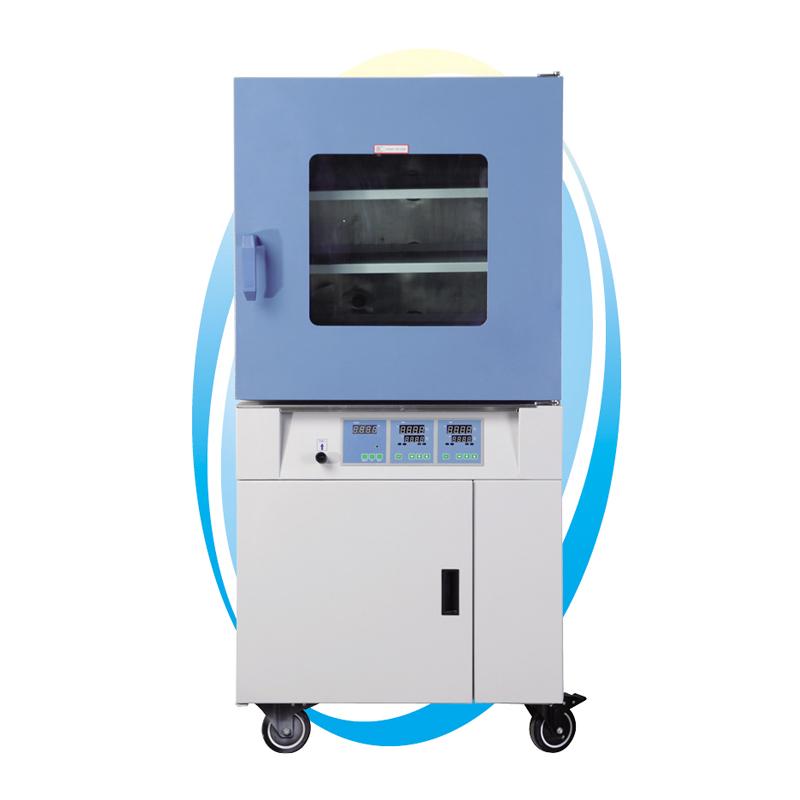

The BPZ-6093LCB Vacuum oven produced by YIHENG Instrument has the characteristics of short heating time, accurate control, safety and reliability, and can smoothly dry heat-sensitive substances and easy oxidation substances. The product adopts digital pressure sensor and microcomputer automatic control Vacuum Level and vacuum pump.
Features
1. Cuboid studio, with large effective volume utilization rate, accurate and reliable temperature control by microcomputer temperature controller.
2. Tempered, bulletproof double-decked Glass doors are easy to observe indoor objects and can be filled with inert gas.
3. The box door is closed and elastic and adjustable, and the integrated silicone rubber door seal ensures a high Vacuum Level.
4. Stainless steel plate studio material, durable and easy to clean.
5. It can be stored, heated, tested and dried in an oxygen-free or inert gas environment to avoid oxidation.
6. The drying time is shortened by more than 50% compared with the traditional Vacuum oven.
Principle
The Vacuum oven automatically controls the Vacuum Level via a digital pressure sensor and microcomputer, providing a programmed vacuum cycle to accelerate the drying process. The Vacuum Level control uses digital technology and automatically adjusts through a digital vacuum gauge to ensure that the stable pressure value is not affected by the airflow. The temperature control supports programmable functions, including traditional mode and slope mode, for precise rate control of heating, thermostatic and cooling processes.
Applications
Thermal drying, oxidation treatment, material storage, heating test, inert gas environment operation
Steps
1. Set the highest and lowest Vacuum Level values as required, such as the minimum Vacuum Level 50Pa and the maximum Vacuum Level 900Pa.
2. Set the number of cycles, such as 6, up to a maximum of 99.
3. Operating interface direct programming, preset 7 groups of 63 steps can be programmed.
4. Each set time is 1-99 hours and 59 minutes, and the preset boot and shutdown time.
5. Control the Vacuum Level through the panel in the range of 10~ 105Pa, with an accuracy of +/- 1%.
6. Use the temperature programmable function to set the temperature, thermostatic time or slope mode.
Notice
• Ensure the door is properly closed to maintain a high Vacuum Level.
• Pay attention to the number of cycles and Vacuum Level settings when programming.
• Follow safe operating procedures when using inert gases.
• Use appropriate methods to avoid damage to stainless steel when cleaning the studio.
