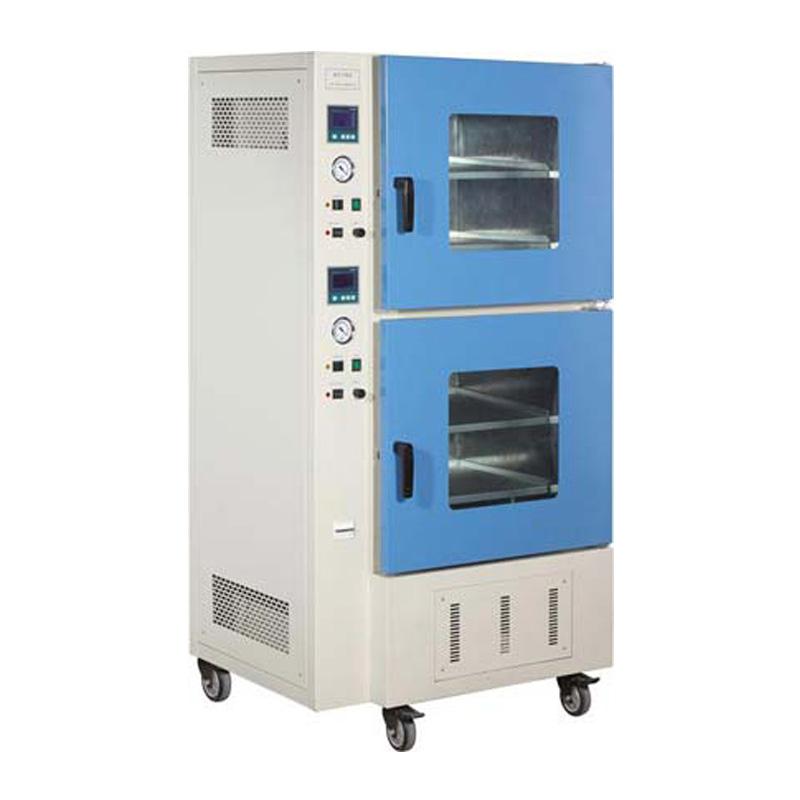

YIHENG BPZ-6120-2 Vacuum Oven double-decked independent temperature control Vacuum Level 133Pa

Name: YIHENG BPZ-6120-2 Vacuum Oven double-decked independent temperature control Vacuum Level 133Pa
Brand: YiHeng
SKU: NB012888
Price: 6273.0 USD
Availability: InStock

$ 6273.00Ex works

Double-decked independent heating and vacuuming design, Vacuum Level up to 133Pa, temperature fluctuation +/- 1 ℃, stainless steel studio and tempered Glass door, support programmed control stoving process.

Model

BPZ-6120-2

Get Quote

Category : Drying Oven

Brand : YiHeng

SKU : NB012888

Service :The delivery and service By NBCLab.Com

Overview

YIHENG BPZ-6120-2 Multi-box Vacuum oven is suitable for heat treatment in vacuum state such as defoaming, dehydrating, hardening and drying after washing in the production process of electronic products. It is widely used in vacuum drying treatment of lithium-ion batteries, LED photoelectric components, crystal oscillators and other electronic product production processes.

Features

1. The studio is made of stainless steel plate to ensure that the product is durable and easy to clean. 2. The rectangular vacuum chamber makes the effective volume utilization rate high and can make full use of space. 3. Resilience Double-decked Tempered Glass Door Observation of indoor objects at a glance. 4. The box door is closed and elastic and adjustable, and the integrally formed synthetic silicone rubber door sealing ring ensures a high Vacuum Level in the box. 5. Add an over-temperature protection temperature control port to effectively prevent complete problems such as temperature runaway. (optional) 6. Each layer of the box can be heated independently, vacuumed independently, and injected with nitrogen independently, without interfering with each other. 7. Program control operation, heating, vacuum holding and nitrogen holding time can be set according to the process requirements to ensure the stoving conformity of each batch and reduce the stoving difference of the product as much as possible (optional).

Principle

The equipment is heat treated in a vacuum state, and the pressure in the box is reduced to 133Pa by an independent vacuum system. At the same time, the independent heating system controls the temperature in the range of RT + 10~ 200 ° C. Optional program control realizes the precise setting of heating, vacuum holding and nitrogen holding time to ensure the conformity and efficiency of the drying process.

Applications

Vacuum drying treatment for the production process of lithium-ion batteries, LED photoelectric components, crystal oscillators and other electronic products

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Temperature Range
RT+10~200℃
Temperature Fluctuation
±1℃
Temperature resolution
0.1℃
Inner chamber dimensions
450 * 450 * 450 (single layer) mm
Liner material
Stainless steel 304 (1Cr~ 18Ni9Ti)/electrostatic spraying process
shelves (max)
2 pieces (independent temperature control) * 2
Vacuum Level
133Pa
vacuum gauge
Mechanical Dial
vacuum gauge
Imported vacuum meter
Power supply Voltage
AC 220V 50HZ
Input Power
2200W
Operating temperature
＋5~40℃
Dimension
740*810*1470mm
