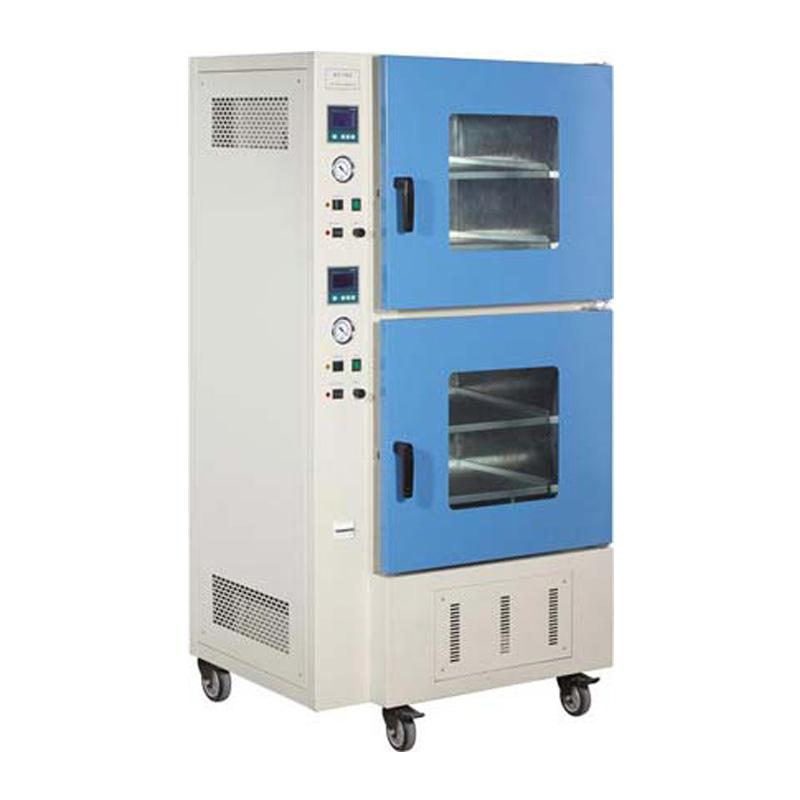

YIHENG BPZ-6120-2B Vacuum Oven double-decked independent temperature control Vacuum Level 133Pa

Name: YIHENG BPZ-6120-2B Vacuum Oven double-decked independent temperature control Vacuum Level 133Pa
Brand: YiHeng
SKU: NB012889
Price: 6994.0 USD
Availability: InStock

$ 6994.00Ex works

Double-decked independent heating and vacuuming do not interfere with each other, rectangular vacuum Chamber improves space utilization, resilience silicone rubber door seal ensures high Vacuum Level, Temperature range RT + 10~ 200 ℃ and temperature fluctuation +/- 1 ℃.

Model

BPZ-6120-2B

Get Quote

Category : Drying Oven

Brand : YiHeng

SKU : NB012889

Service :The delivery and service By NBCLab.Com

Overview

YIHENG BPZ-6120-2B multi-box Vacuum oven is suitable for heat treatment in vacuum state such as defoaming, dehydrating, hardening and drying after washing in the production process of electronic products. It is widely used in vacuum drying treatment of lithium-ion batteries, LED photoelectric components, crystal oscillators and other electronic product production processes.

Features

1. The studio is made of stainless steel plate to ensure that the product is durable and easy to clean. 2. The rectangular vacuum chamber makes the effective volume utilization rate high and can make full use of space. 3. Resilience Double-decked Tempered Glass Door Observation of indoor objects at a glance. 4. The box door is closed and elastic and adjustable, and the integrally formed synthetic silicone rubber door sealing ring ensures a high Vacuum Level in the box. 5. Add an over-temperature protection temperature control port to effectively prevent complete problems such as temperature runaway. (optional) 6. Each layer of the box can be heated independently, vacuumed independently, and injected with nitrogen independently, without interfering with each other. 7. Program control operation, heating, vacuum holding and nitrogen holding time can be set according to process requirements to ensure the stoving conformity of each batch and reduce the stoving difference of the product as much as possible. (optional)

Principle

The product is heat treated in a vacuum state. By independently controlling the heating, vacuuming and nitrogen injection processes of each layer of the box, the process requirements such as defoaming, dehydrating and hardening can be realized. The program control function can set specific time parameters to ensure the treatment conformity.

Applications

Vacuum drying treatment for the production process of lithium-ion batteries, LED photoelectric components, crystal oscillators and other electronic products

Temperature Range
RT+10~200℃
Temperature Fluctuation
±1℃
Temperature resolution
0.1℃
Inner chamber dimensions
450 * 450 * 450mm (single layer)
Liner material
Stainless steel 304 (1Cr~ 18Ni9Ti)/electrostatic spraying process
shelves (max)
2 pieces (independent temperature control) * 2
vacuum gauge
Mechanical Dial
Vacuum Level
133Pa
Power supply Voltage
AC 220V 50HZ
Input Power
3350W
Operating temperature
＋5~40℃
Dimension
740*810*1470mm

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
