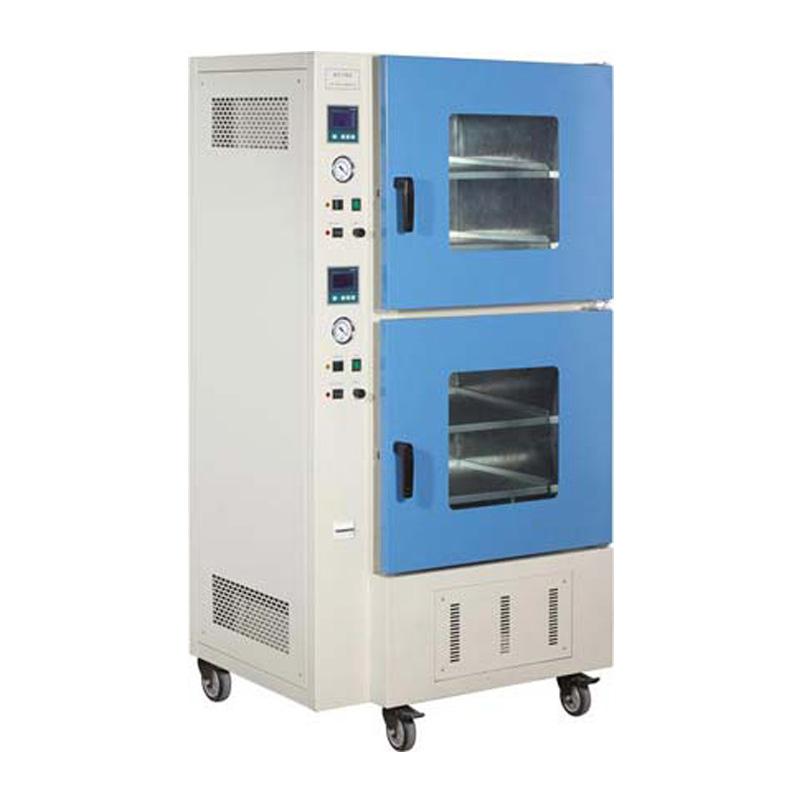

YIHENG BPZ-6210-2 Vacuum Oven independent vacuum temperature control

Name: YIHENG BPZ-6210-2 Vacuum Oven independent vacuum temperature control
Brand: YiHeng
SKU: NB012890
Price: 7782.0 USD
Availability: InStock

$ 7782.00Ex works

The effective volume utilization rate of rectangular vacuum Chamber is high, each layer can be independently heated and vacuumed to inject nitrogen without interfering with each other, the temperature control accuracy is +/- 1 ℃, the Vacuum Level is 133Pa, and the double-decked tempered Glass door is easy to observe.

Model

BPZ-6210-2

Get Quote

Category : Drying Oven

Brand : YiHeng

SKU : NB012890

Service :The delivery and service By NBCLab.Com

Overview

YIHENG BPZ-6210-2 multi-box Vacuum oven is suitable for heat treatment in vacuum state such as defoaming, dehydrating, hardening and drying after washing in the production process of electronic products. It is widely used in vacuum drying treatment of lithium-ion batteries, LED photoelectric components, crystal oscillators and other electronic product production processes.

Features

1. The studio is made of stainless steel plate to ensure that the product is durable and easy to clean. 2. The rectangular vacuum chamber makes the effective volume utilization rate high and can make full use of space. 3. Resilience Double-decked Tempered Glass Door Observation of indoor objects at a glance. 4. The box door is closed and elastic and adjustable, and the integrally formed synthetic silicone rubber door sealing ring ensures a high Vacuum Level in the box. 5. Add an over-temperature protection temperature control port to effectively prevent complete problems such as temperature runaway. (optional) 6. Each layer of the box can be heated independently, vacuumed independently, and injected with nitrogen independently, without interfering with each other. 7. Program control operation, heating, vacuum holding and nitrogen holding time can be set according to process requirements to ensure the stoving conformity of each batch and reduce the stoving difference of the product as much as possible. (optional)

Principle

Vacuum oven heat treatment in a vacuum state, through independent control of each layer of the box heating, vacuuming and nitrogen injection functions, to achieve electronic products defoaming, dehydrating and hardening process.

Applications

Vacuum drying treatment for the production process of lithium-ion batteries, LED photoelectric components, crystal oscillators and other electronic products

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Temperature Range
RT+10~200℃
Temperature Fluctuation
±1℃
Temperature resolution
0.1℃
Inner chamber dimensions
560 * 600 * 640mm (single layer)
Liner material
Stainless steel 304 (1Cr~ 18Ni9Ti)/electrostatic spraying process
shelf (std.)
3 pieces (independent temperature control) * 2
Vacuum Level
133Pa
Power supply Voltage
AC 220V 50HZ
Input Power
3200W
Operating temperature
＋5~40℃
Dimension
880*960*1770mm
vacuum gauge
Imported vacuum meter

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
