Overview

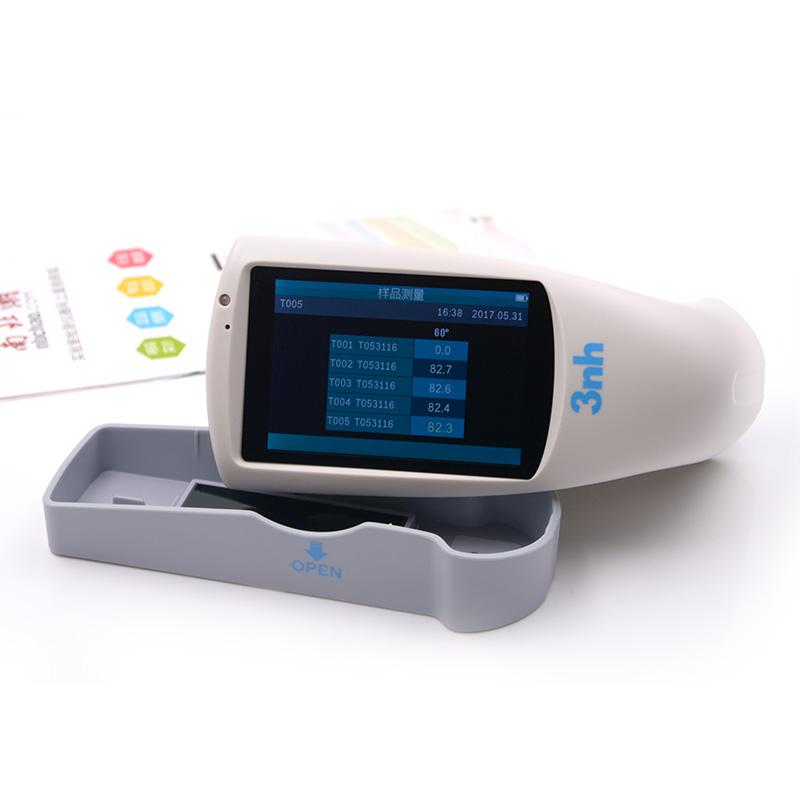

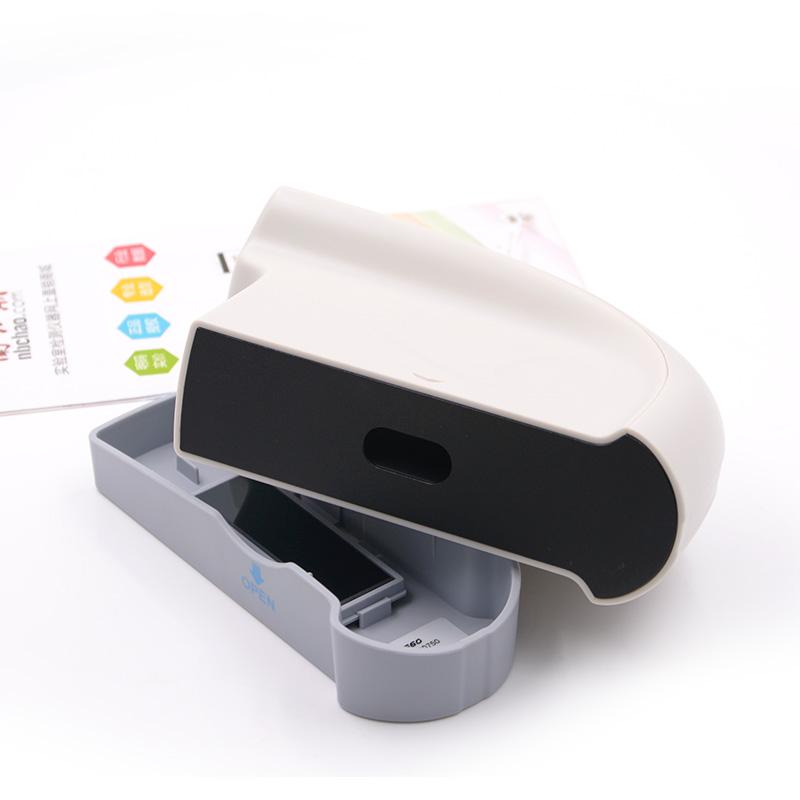

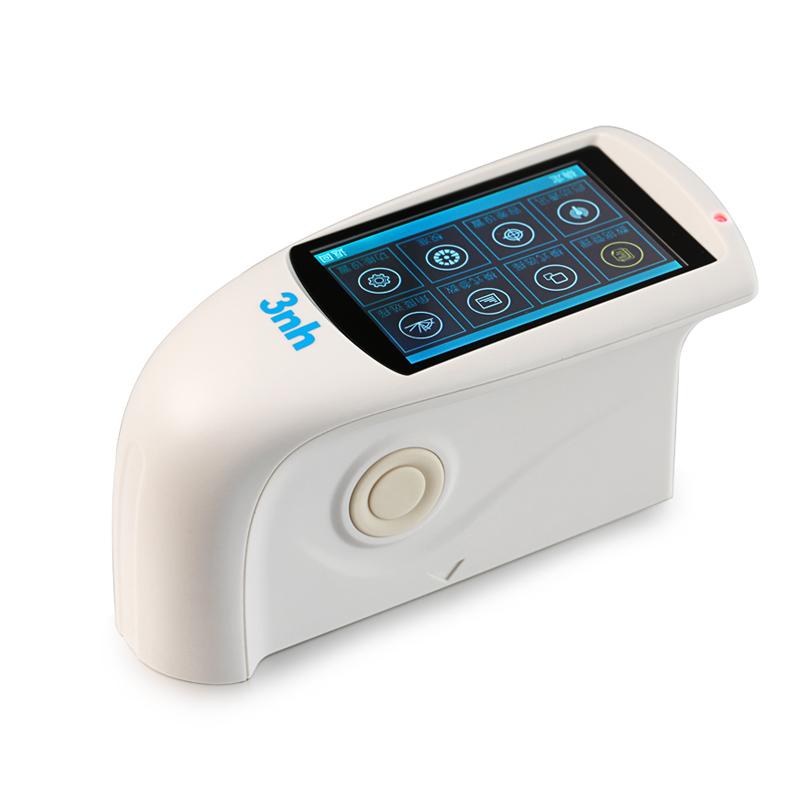

The 3NH HG60 single angle glossmeter is a 60 degree projection Portable gloss measurement device with a white plastic case. Appearance is beautiful and ergonomic. The instrument is equipped with high-quality management software, which can display 5 sets of Gloss measurement data at the same time, providing basic Measurement mode, and has the characteristics of stable performance, easy use and accurate measurement.
Features

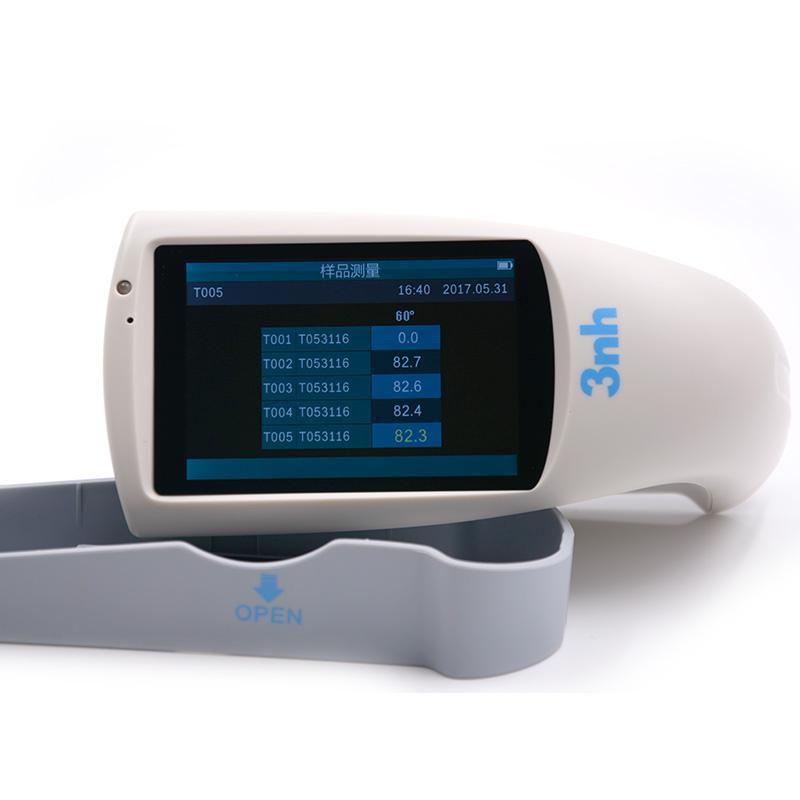

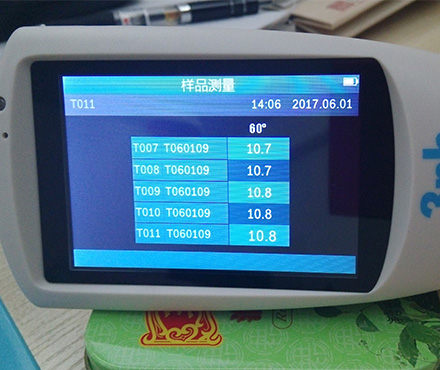

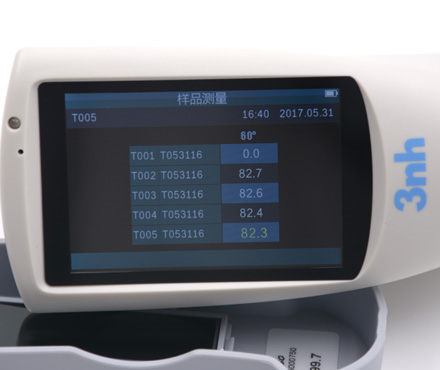

Large color screen 3.5 inches, high resolution (480 * 320) full viewing angle display, can display 5 sets of measurement data at the same time.
2. Appearance design simple atmosphere, ergonomic structural design.
3. Flexible choice Automatic calibration, simple and convenient operation.
4. Built-in rechargeable battery.
5. Comply with standards ISO2813, GB/T9754, ASTMD523, and ASTMD2457.
6. High-quality hardware configuration, incorporating a number of innovative technologies.
7. With automatic shutdown function, saving power consumption.
Principle
The HG60 single-angle glossmeter uses a 60-degree projection angle to measure the surface Glossiness of the sample. The built-in Sensor and Optical inspection system capture the reflected light signal, and display the measurement result on the display screen after processing. The instrument supports USB connection to PC for data communication and control to achieve accurate gloss measurement.
Applications
Coatings, paints inks, furniture, paper printing, ceramics, plastic electronics, Eletroplating, Hardware, marble
Standards
ISO2813、GB/T9754、ASTMD523、ASTMD2457
Steps
1. Turn on the HG60 single-angle glossmeter first, and then plug in the USB cable to connect to the PC, so that the HG60 single-angle glossmeter can be charged or automatically connected to the host computer software.
2. Glossmeter measurement control through the host computer software. (Note: Provided that the host computer software has been correctly installed on the PC, the host computer software and installation instructions are in the accompanying CD-ROM).
3. Print, single angle glossmeter connected to a dedicated micro printer, during measurement, can automatically print measurement data.
Notice
• Modifying the calibrated value requires careful operation, and it is better to operate it by the manufacturer or a qualified Measurement Institute.
• Make sure that the upper computer software has been correctly installed on the PC before use.
• Operating environment requires operating temperature 0~ 40 ℃ and relative humidity < 85% RH without condensation.
• Avoid storage in a temperature environment outside -20~ 50 ° C.
