Overview

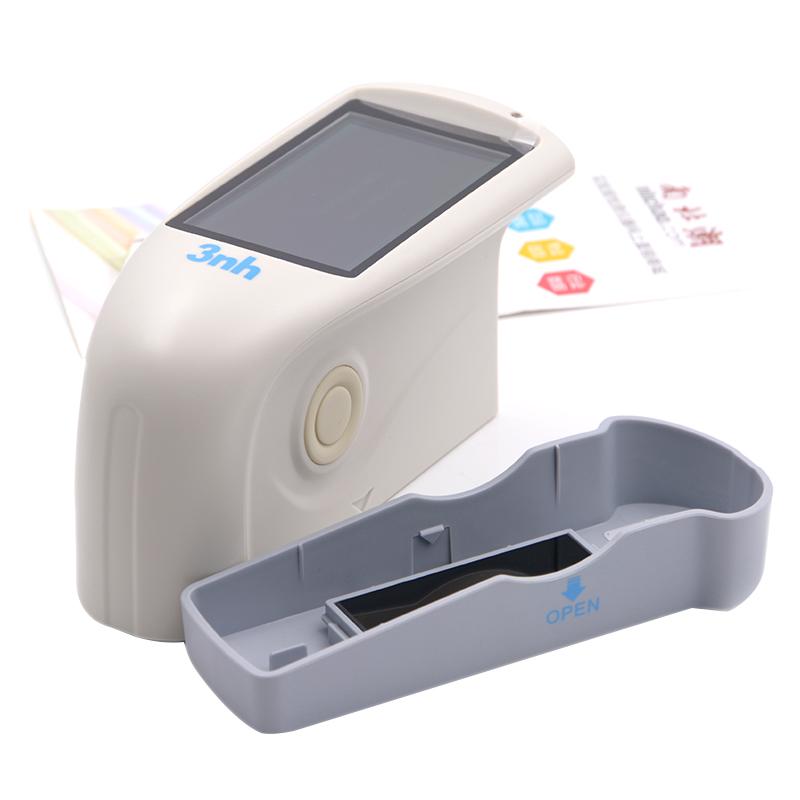

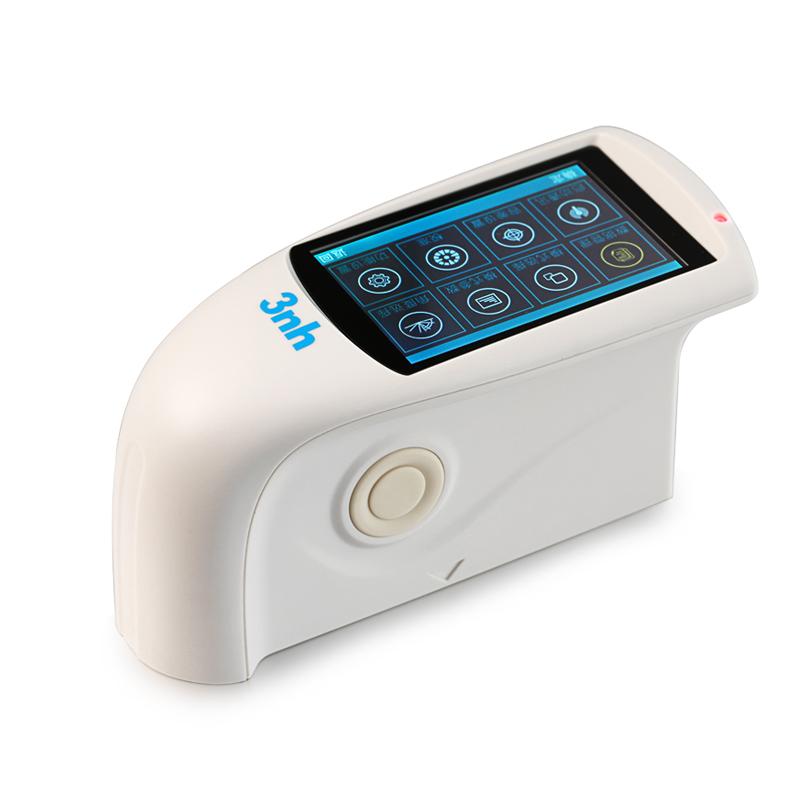

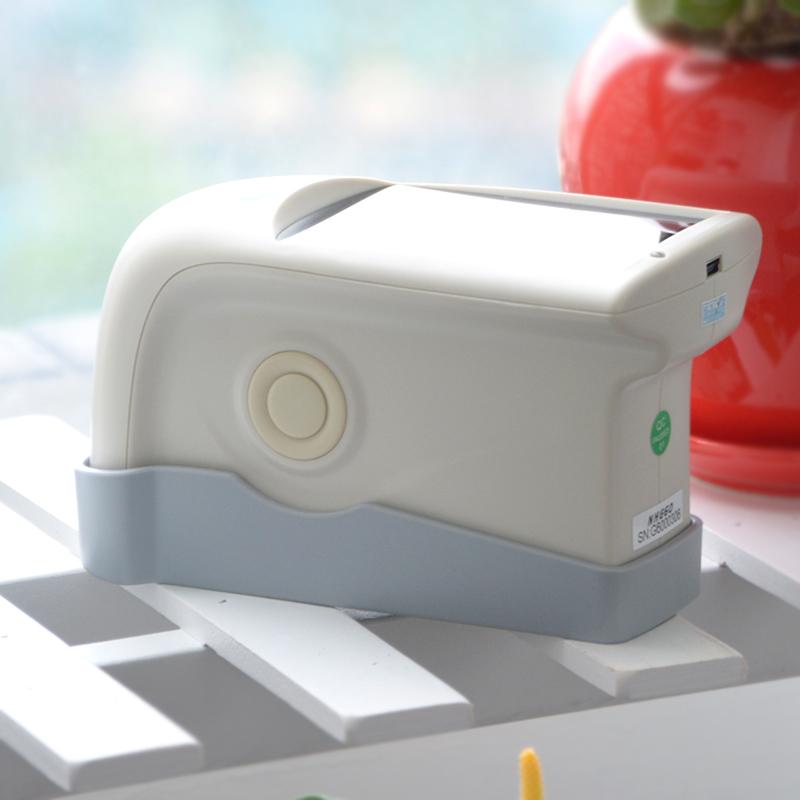

The 3nh HG268 glossmeter is a professional instrument with three Measurement Angles of 20 °, 60 ° and 85 °. It is equipped with a large color display screen and supports multi-angle measurement. It is suitable for different gloss measurement occasions. The instrument adopts Keypad Operation operation, bilingual interface in Chinese and English, easy to operate, and is equipped with PC software for data management.
Features
1. Adopt a 3.5-inch large color display, providing a clear and intuitive display.
Provide 20 °, 60 °, 85 ° three Measurement Angles to adapt to a variety of measurement needs.
3. Built-in rechargeable lithium battery, environmentally friendly and energy-saving, with long service life.
4. Equipped with automatic shutdown function, effectively saving power.
5, Simple and atmospheric Appearance design combined with ergonomic structure, comfortable operation.

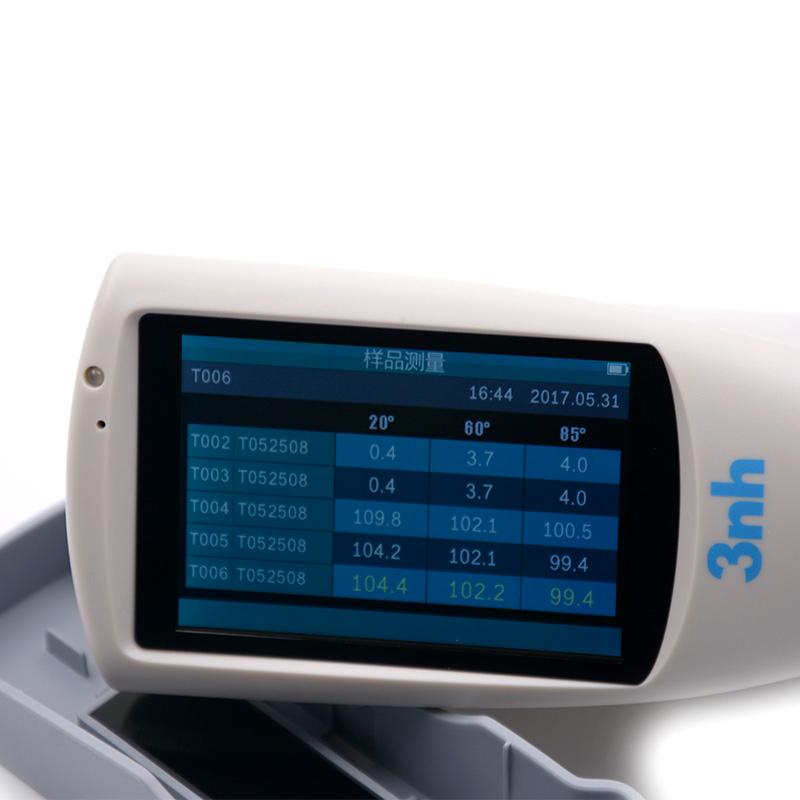

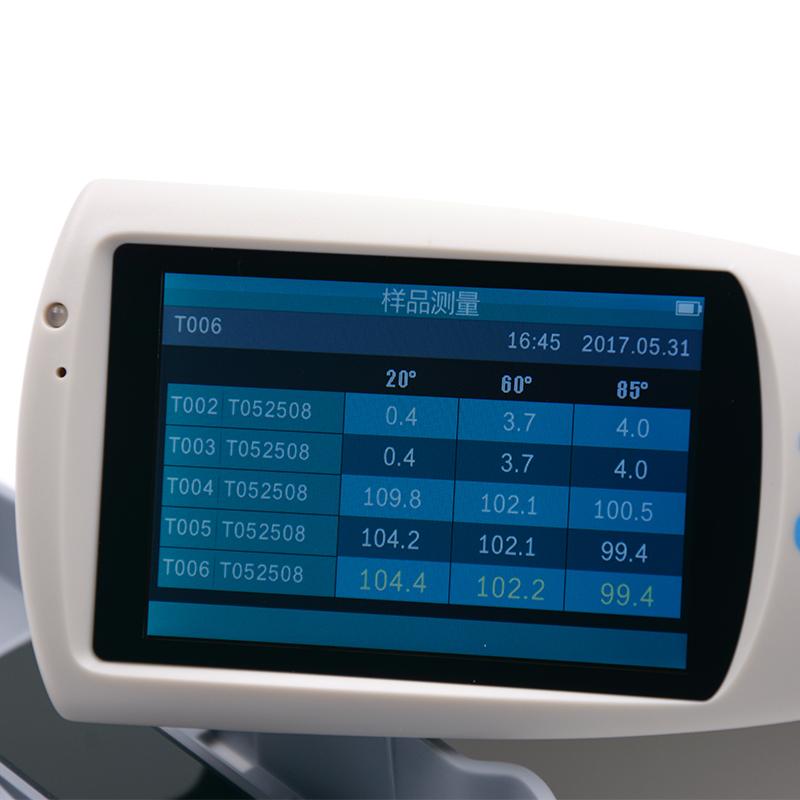

6. Support 5 sets of measurement data to be displayed at the same time, which is convenient for data comparison and analysis.
7. Automatic calibration function, easy to operate.
8. PC-side quality management software is powerful and scalable.
Principle
The HG268 tri-angle glossmeter evaluates the surface mass of an object by measuring the Glossiness of the reflected light on its surface. Standard light sources and photoelectric detectors are used to measure the reflected light intensity at angles of 20 °, 60 °, and 85 °, and are converted to Glossiness Units (GU) to ensure the accuracy and Repeatability of measurement results.
Applications
Leather, Hardware, Automotive, Plastic, Plastic, Jade, Stone
Standards
ISO 2813、ASTM D 523、GB/T 9754、ASTM D 2457
Steps
1. Turn it on and select Measurement Angles.
2. Select Automatic calibration or Manual calibration as required.

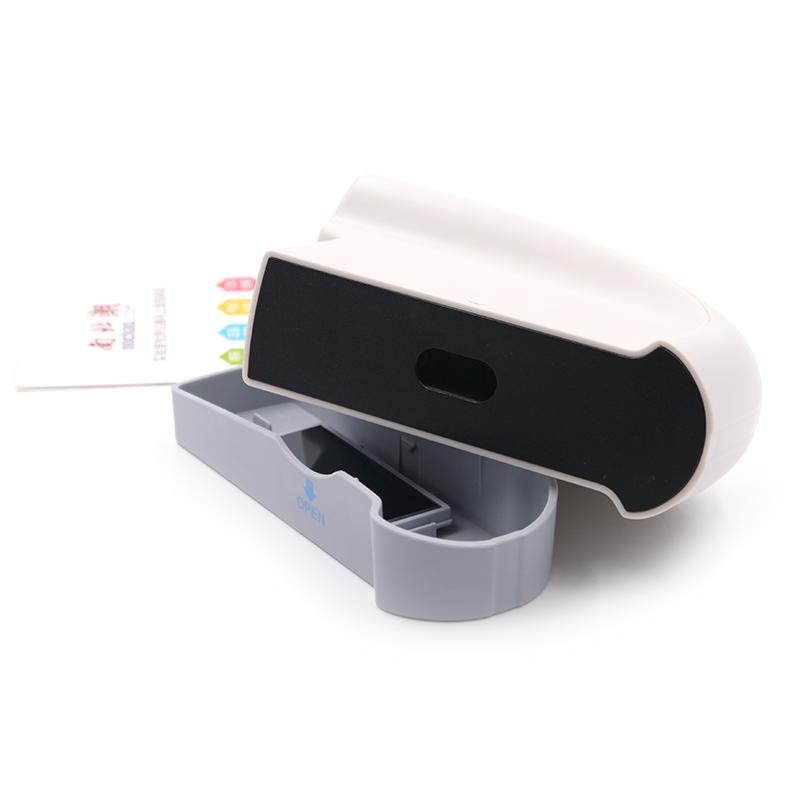

3. Align the instrument measurement port with the surface of the object to be measured.
4. Press the measurement button for measurement.
5. Read and record measurement data.
6. Connect to the PC through the USB interface, and use GQC66 software for data management and export.
Notice
• Make sure the instrument is calibrated before use to ensure measurement accuracy.
• Avoid use in high temperature, high humidity or strong light direct environment, Operating temperature range is 0~ 40 ℃.
• Keep the instrument stable during measurement to avoid shaking affecting the results.
• Regularly clean measurement windows and standard boards to prevent stains from interfering.
Store in a drying environment to avoid temperatures below -20 ° C or above 50 ° C.
• Use original accessories such as Power Adapters and data cables to ensure safety.
• If not used for a long time, please charge it regularly to maintain Battery life.
