Overview

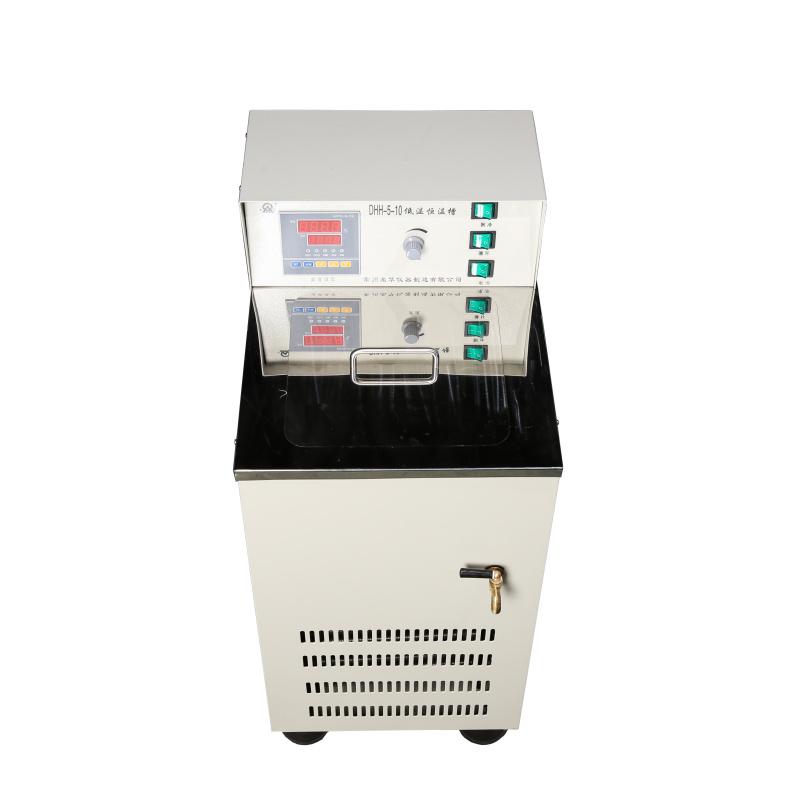

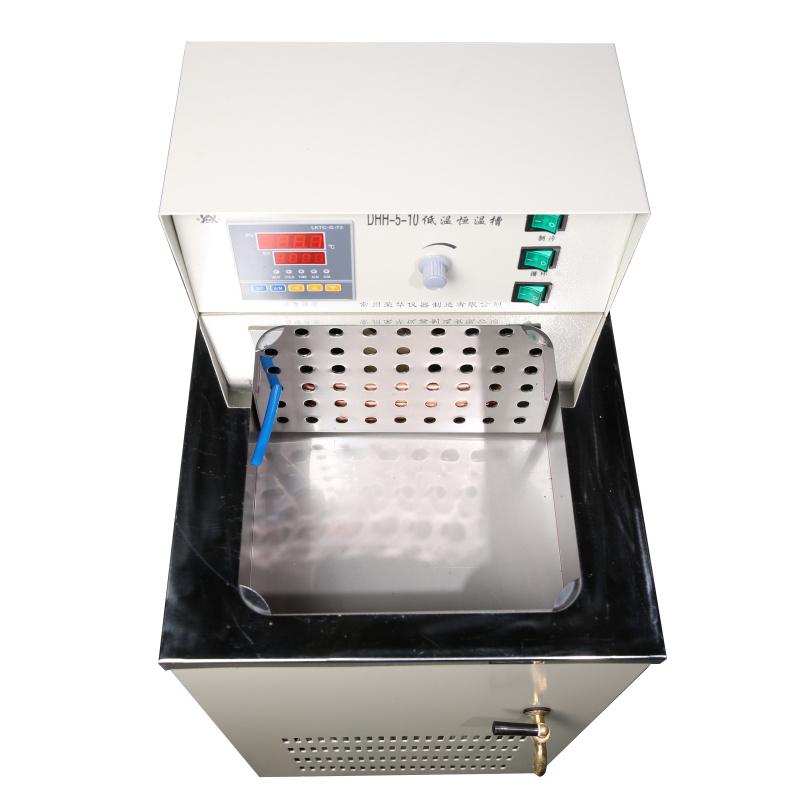

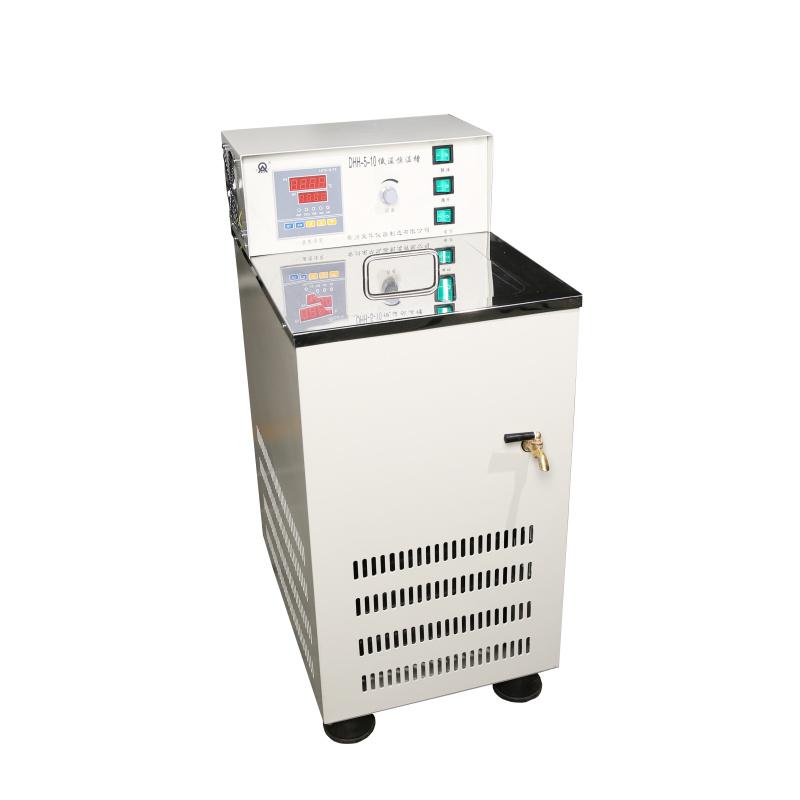

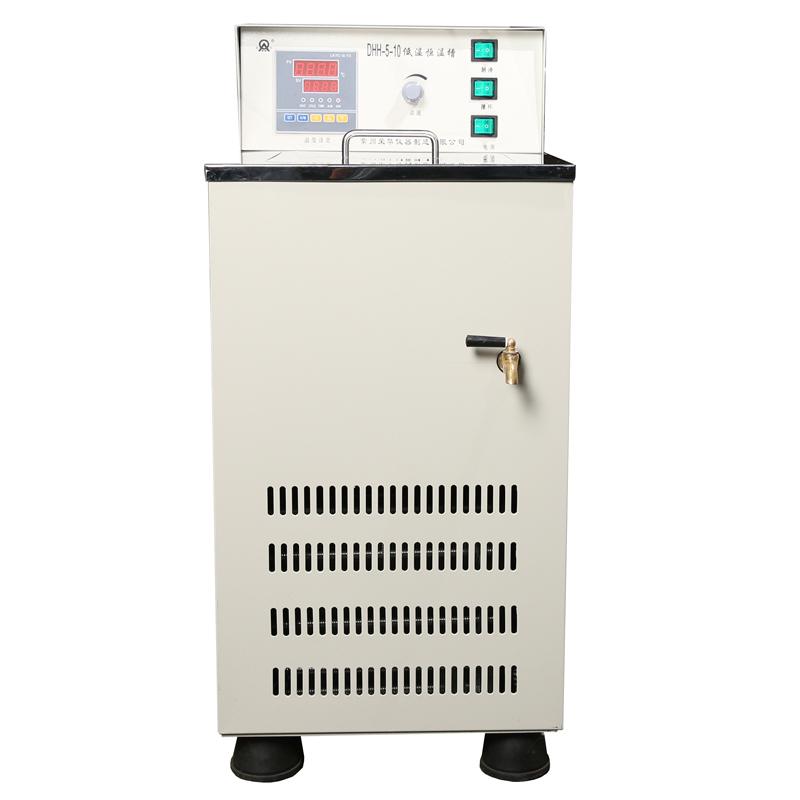

RONGHUA INSTRUMENT DHH-5-10 Low Temperature Circulating Bath is a thermostatic device with a Temperature range of -5 ° C to 100 ° C, Temperature Fluctuation of +/- 1 ° C, 10L working volume (250 * 200 * 200mm), opening dimensions of 250 * 200mm.
Features
1. Temperature range -5 ℃ to 100 ℃, to meet a variety of low temperature thermostatic requirements
2. Temperature Fluctuation Control at +/- 1 ℃ to Ensure Temperature Stability
3. The working volume is 10L, suitable for medium-scale experiments
4. Flow rate of circulating pump is adjustable from 0~ 6L, providing flexible fluid control
5. Using alcohol as the refrigeration medium, environmentally friendly and efficient
Principle
Low Temperature Circulating Bath reduces the temperature in the tank through the refrigeration system, and uses a circulating pump to circulate the refrigeration medium (alcohol) to maintain the uniformity and Stability of the temperature in the tank and achieve accurate temperature control.
Applications
Laboratory, scientific research, industrial testing, chemical analysis, biological experiments
Steps
1. Place the device in a smoothly ventilated place and connect it to the power supply
2. Add an appropriate amount of alcohol as a refrigeration medium
3. Set the required Temperature range (-5 ℃~ 100 ℃)
4. Start the equipment and adjust the Flow rate of the circulating pump to 0~ 6L
5. Monitor temperature fluctuations to ensure stability within +/- 1 ° C
6. Turn off the power after use and clean the tank body
Notice
• Make sure the power connection is stable before use to avoid leakage
• The refrigeration medium is alcohol, which needs to be kept away from the fire source to prevent fire
• Pay attention to the temperature setting during operation to avoid exceeding the range of -5 ° C to 100 ° C
• Regularly check the circulating pump and tank body to prevent leakage or blockage
• Dimension of equipment is 470 * 350 * 760mm to ensure sufficient installation space
