Overview

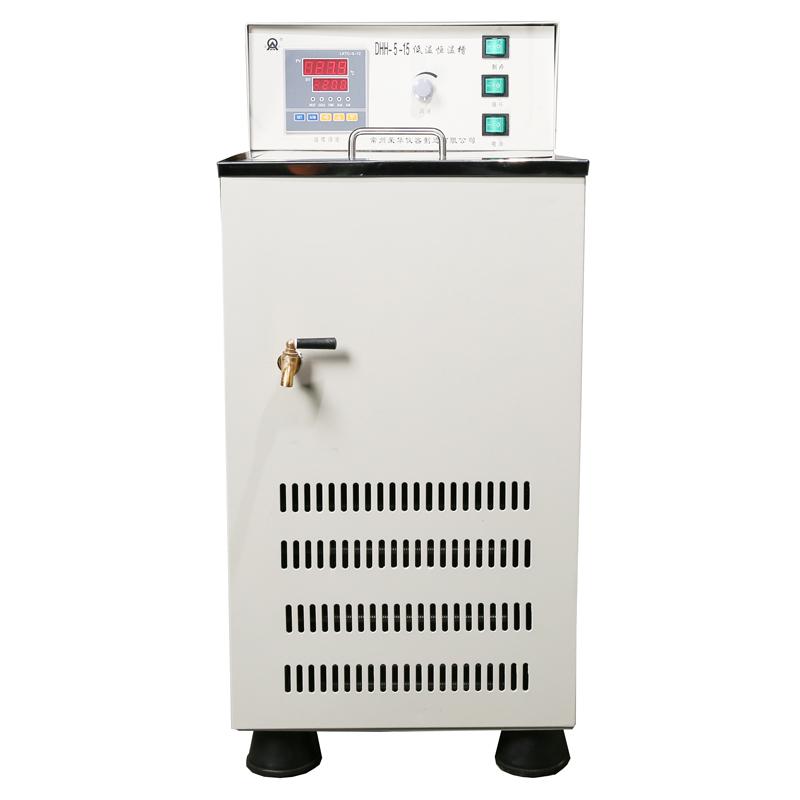

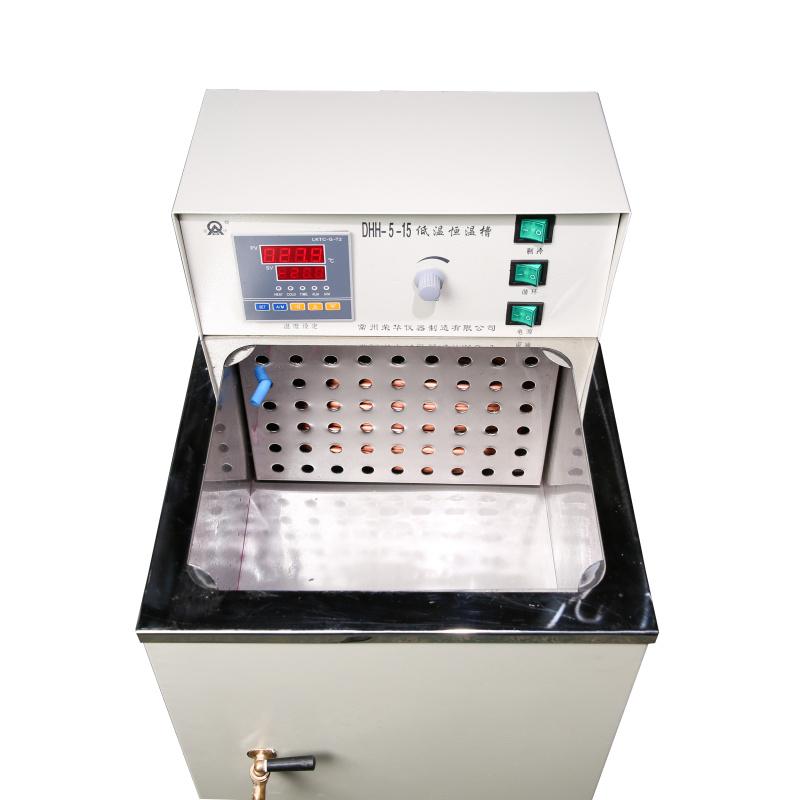

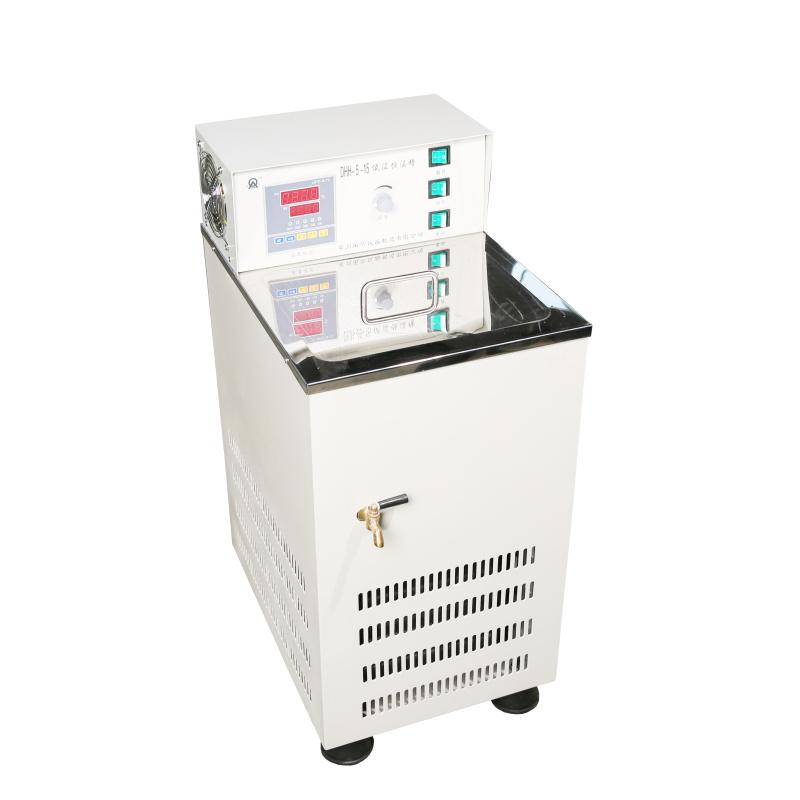

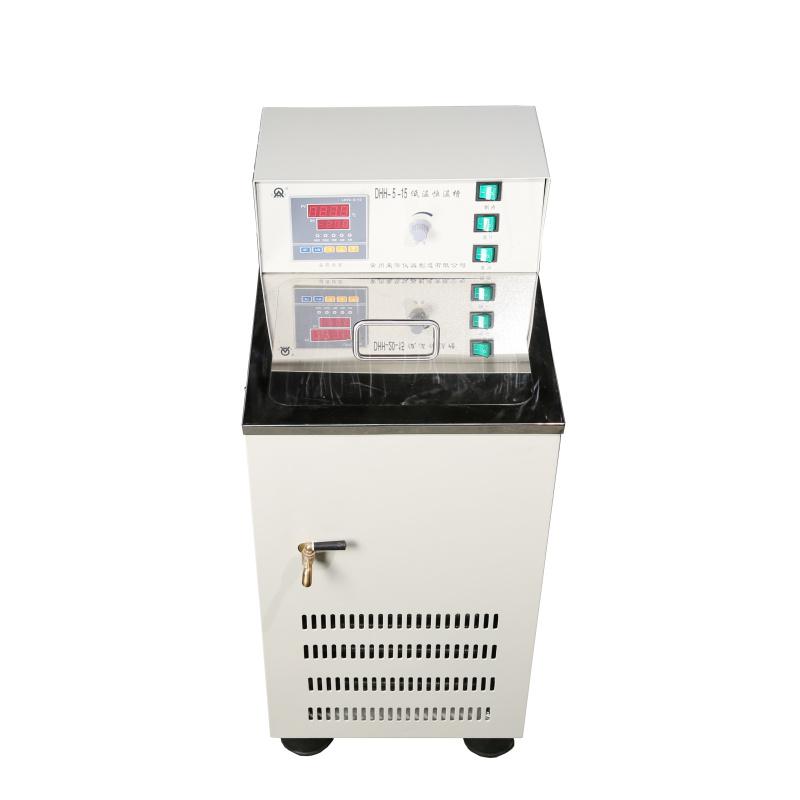

RONGHUA INSTRUMENT DHH-5-15 Low Temperature Circulating Bath is a thermostatic device with a Temperature range of -5 ° C to 100 ° C, Temperature Fluctuation of +/- 1 ° C, 15L working volume (300 * 250 * 200mm), opening dimensions of 300 * 250mm.
Features
1. Temperature range -5 ℃~ 100 ℃, suitable for a variety of low temperature thermostatic requirements
2. Temperature Fluctuation Control at +/- 1 ℃ to Ensure Temperature Stability
3. Provide 15L working volume to meet larger Sample Handling
4. Flow rate of circulating pump adjustable from 0~ 6L, flexible to adapt to different applications
5. Using alcohol as a refrigeration medium, environmentally friendly and efficient
Principle
Low Temperature Circulating Bath reduces the temperature in the Tank through the refrigeration system, uses the circulating pump to make the medium flow evenly in the tank, and combines the temperature Control system to maintain the stability of the set temperature to achieve an accurate low temperature thermostatic environment.
Applications
Laboratory thermostatic experiments, low temperature treatment of samples, material performance testing, chemical reaction control
Standards
The product information does not mention specific compliance standards
Steps
1. Check whether the Appearance and connection of the device are normal
2. Add an appropriate amount of alcohol as a refrigeration medium
3. Turn on the power supply and set the required temperature
4. Start the device and observe the temperature stability
5. Adjust the circulating pump Flow rate as needed
6. Turn off the power after use and clean the equipment
Notice
• Ensure that the medium in the Tank is sufficient before use
• Avoid use beyond Temperature range
• Regularly check the operation status of the refrigeration system and circulating pump
• Keep equipment well ventilated
• Clean and maintain equipment promptly after use
