Overview

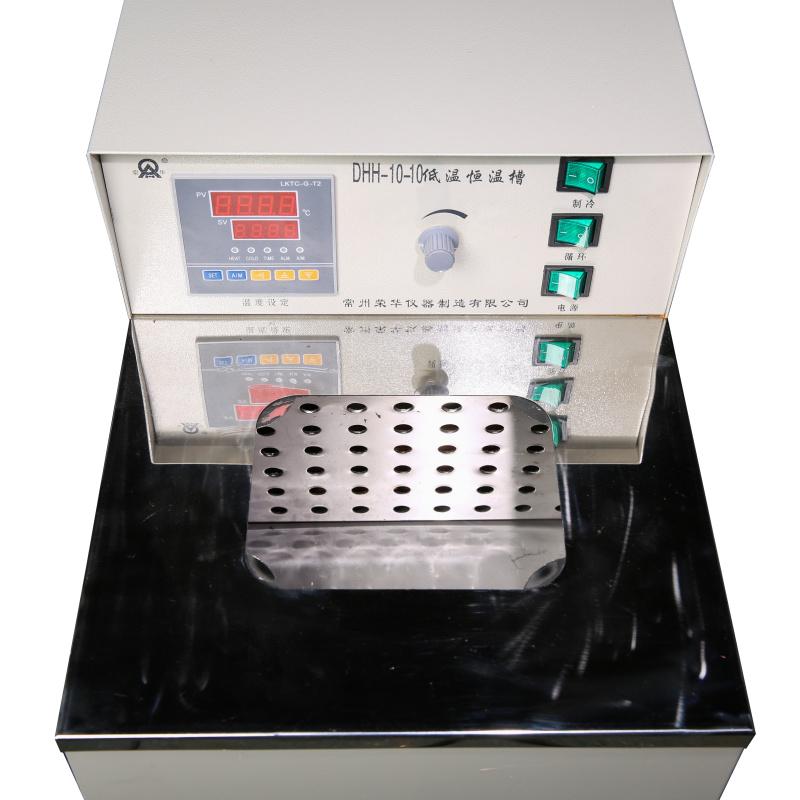

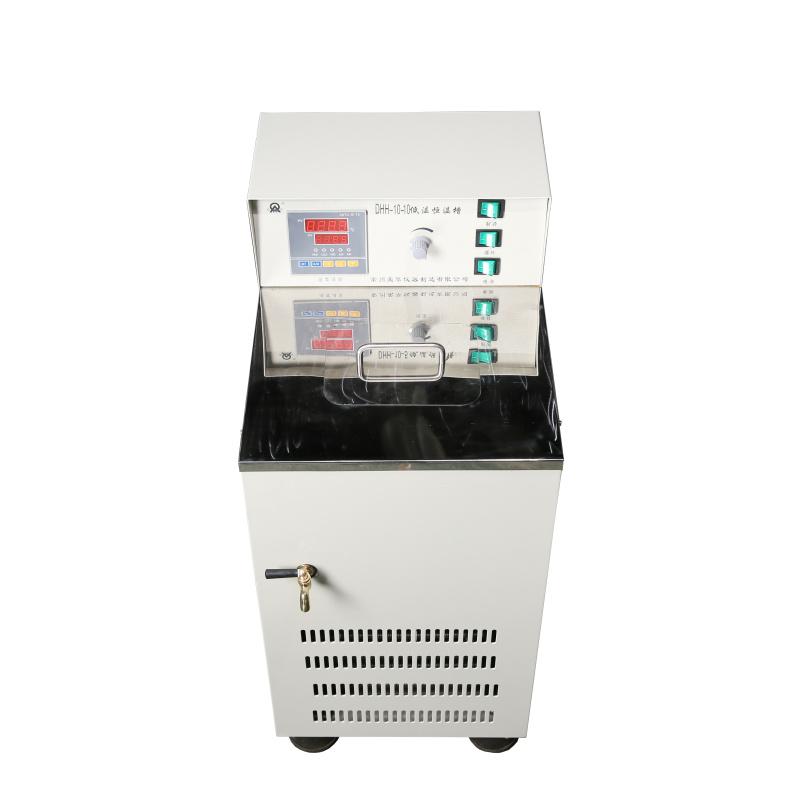

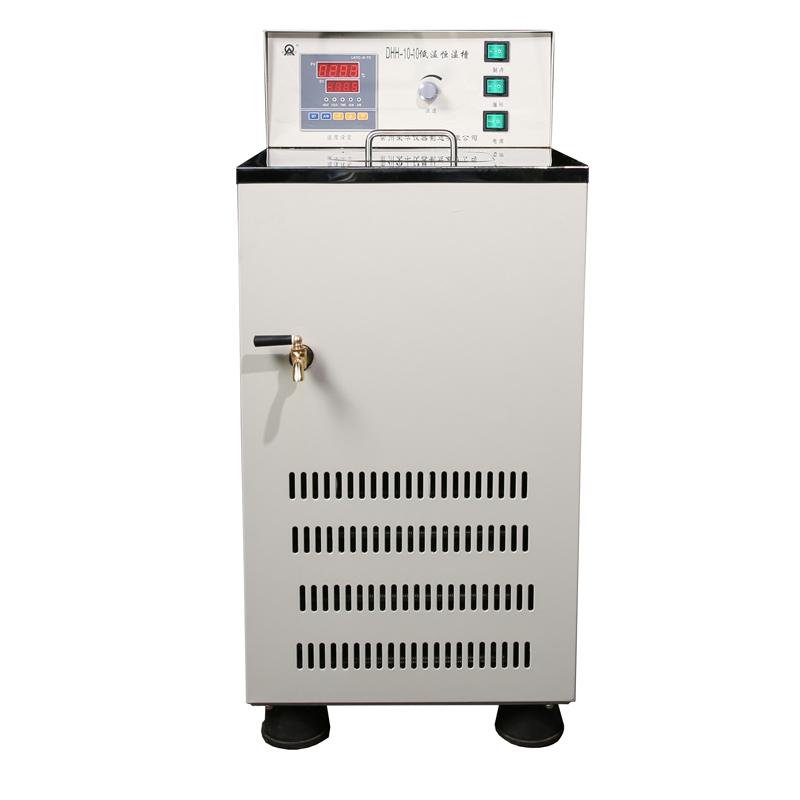

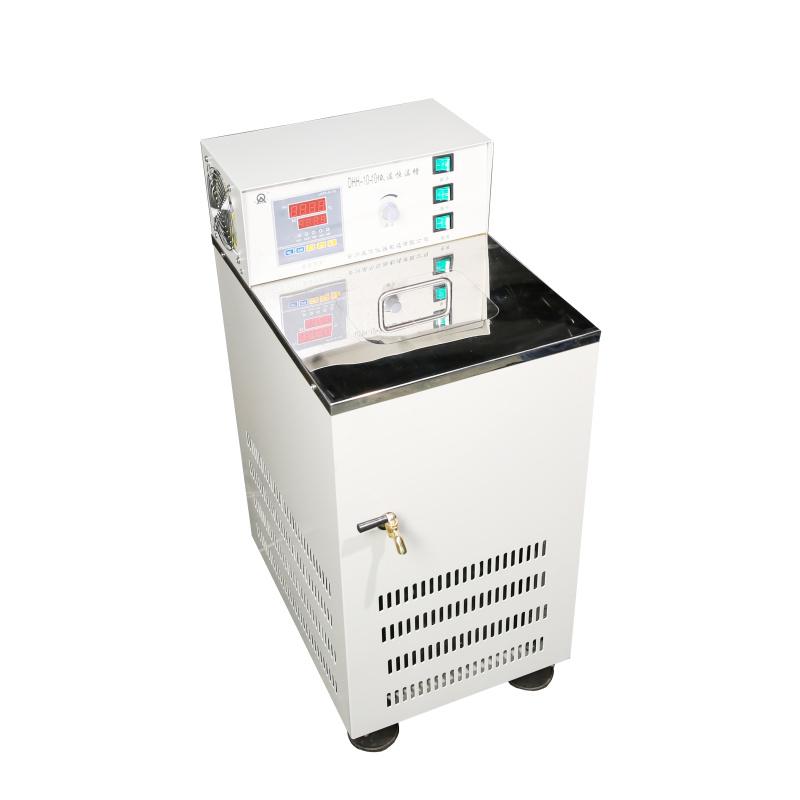

RONGHUA INSTRUMENT DHH-10-10 Low Temperature Circulating Bath is a thermostatic device with a Temperature range of -10 ° C to 100 ° C, providing a 10L working volume, Tank opening dimensions of 250 * 200mm, Tank depth of 200mm.
Features
1. Wide Temperature range from -10 ℃ to 100 ℃
2. Temperature Fluctuation controlled within +/- 1 ℃
3. Provide 10L standard working volume
4. Flow rate of circulating pump 0~ 6L adjustable
5. Use alcohol as the refrigeration medium
Principle
Low Temperature Circulating Bath chills down the medium in the tank to the set temperature through the refrigeration system, and uses a circulating pump to keep the medium flowing to ensure that the temperature is uniform and stable within the fluctuation range of +/- 1 ° C.
Applications
Laboratory temperature control, material testing, biological sample preservation, chemical reaction thermostatic
Standards
The product information does not mention the specific standards met
Steps
1. Turn on the power supply and turn on the device switch
2. Set the required temperature value
3. Adjust the Flow rate of the circulating pump to the appropriate level
4. Wait for the temperature in the tank to reach the set value
5. Put in the sample to be treated for thermostatic operation
6. Turn off the power after use
Notice
• Make sure the medium level in the tank is sufficient before use
• Avoid use outside the range of -10 to 100 ° C
• Regularly check the status of the refrigeration medium
• Keep equipment well ventilated
• Non-professionals should not disassemble the equipment
