Overview

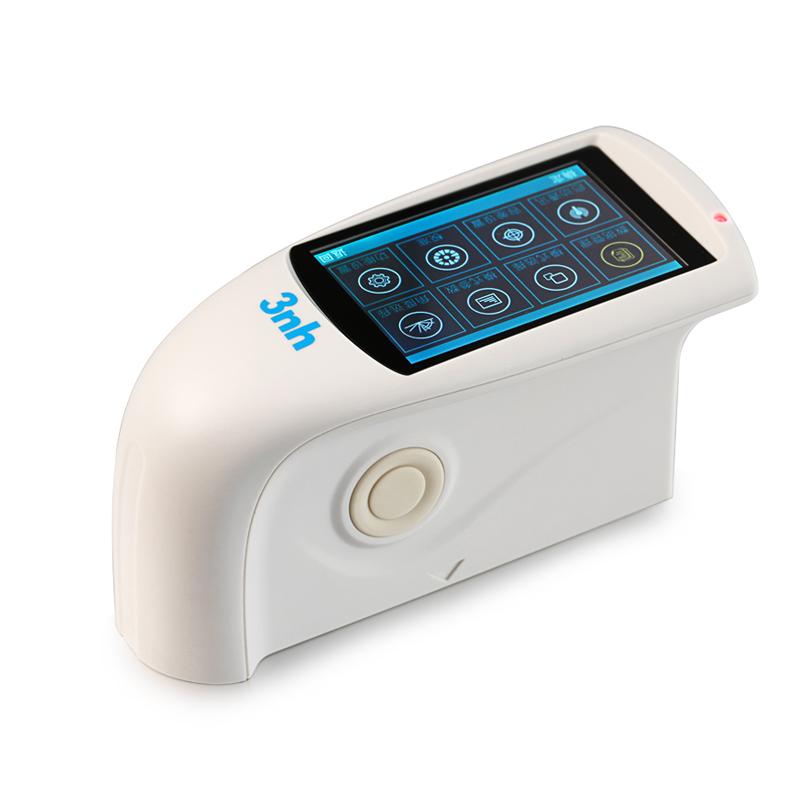

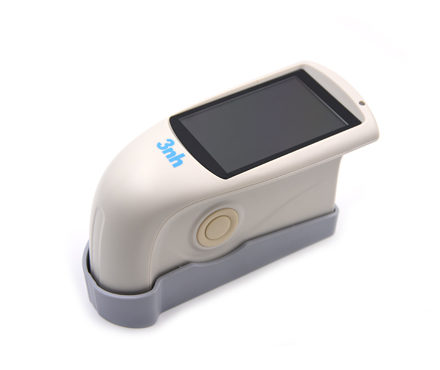

NHG60 glossmeter is an intelligent Touchscreen high-precision gloss measurement instrument with independent intellectual property rights of Sanenchi brand. The Measurement Angles is 60 degrees and the detection light spot specification is 9 * 15mm. The instrument fully complies with the Chinese national standard GB/T 9754 and the international standard ISO 2813, and has the characteristics of convenient use, accurate measurement, stable performance and high-end shape.
Features
1. With basic measurement, continuous measurement, statistical measurement, quality control measurement (only PC) Measurement mode, to meet a variety of use cases
2. Full Touchscreen operation, simple and convenient operation
3. Display screen, up to 3.5 inches, high resolution (320 * 480) full viewing angle display, clear interface image
4. High-end hardware configuration, incorporating a number of innovative technologies
5. Compliant with standards ASTM D523, ASTM D2457, GB/T 1381, GB/T 7706, GB/T 8807
6. Large-capacity storage space, capable of storing 1000 basic records, 5000 statistical records, and 5000 continuous records
7. With multi-function settings, it can meet the needs of different users
8. Ability to manually enter Glossiness data for customer convenience
Principle
The NHG60 glossmeter adopts the Optical inspection Measurement principle to accurately measure the Glossiness of the sample surface by detecting the light spot under the 60 degree Measurement Angles. The Measuring Area specification is 9 * 15mm.
Applications
Paints, Coatings, inks, Eletroplating, Plastic Electronics, Hardware and other industries
Standards
ISO 2813、ASTM D523、ASTM D2457、GB/T 9754、GB/T 1381、GB/T 7706、GB/T 8807
Steps
1. Power on and prepare the instrument
2. Measurement mode (basic measurement, continuous measurement, statistical measurement or quality control measurement)
3. Perform calibrating operations
4. Sample measurement
5. View and store measurement data
6. Can be connected to the computer through the USB interface for data transmission
Notice
• NHG60 Glossiness Meter is a precision opticalin strument, please keep and use it properly, avoid use and storage in humid, strong electromagnetic interference, strong light and dust environment (temperature 20 degrees Celsius, 1 standard atmospheric pressure, Humidity 50~ 70% RH)

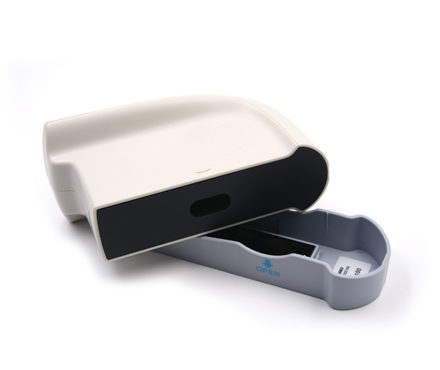

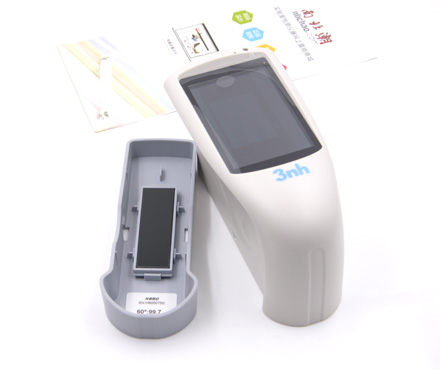

• The standard board is a precision Optical inspection component to avoid bumping the working surface with sharp objects, avoid soiling the working surface with dirt, and avoid exposure to the standard board in strong light. Regularly use a soft wipe cloth to smoke alcohol to clean the working surface of the standard board. It is better to wipe it in only one direction, do not wipe it back and forth, and ensure that the specific gravity does not have any fine particles. These particulate matter (PM) can damage the surface of the standard board when cleaning. (Note: acetone solution is prohibited)
• When calibrating, the dust on the working surface should be disposed of in time, and the intact and clean standard plate can be accurately calibrated
• NHG60 is powered by the built-in lithium battery. If you do not use the NHG60 Glossiness Meter for a long time, please charge the NHG60 Glossiness Meter every 2 weeks to protect the performance of the lithium battery and prolong the lithium Battery life
• Optical inspection of NHG60 Glossiness Meter internal cleaning It is recommended to return to the factory for cleaning once a year. Do not use cleaning tools to insert the instrument for cleaning, it will cause irreversible damage to NHG60 Glossiness Meter
