Overview

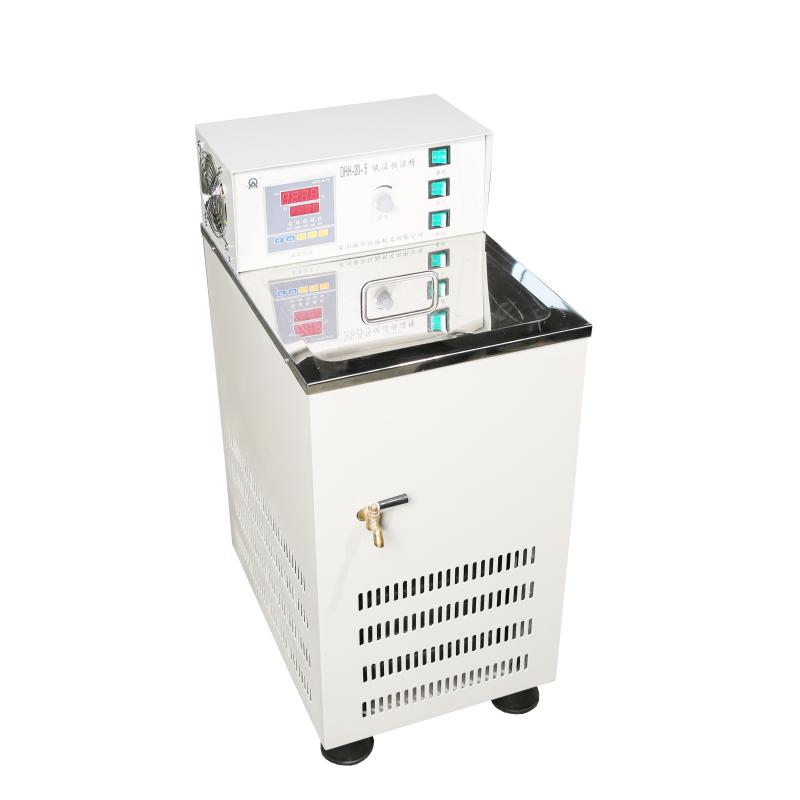

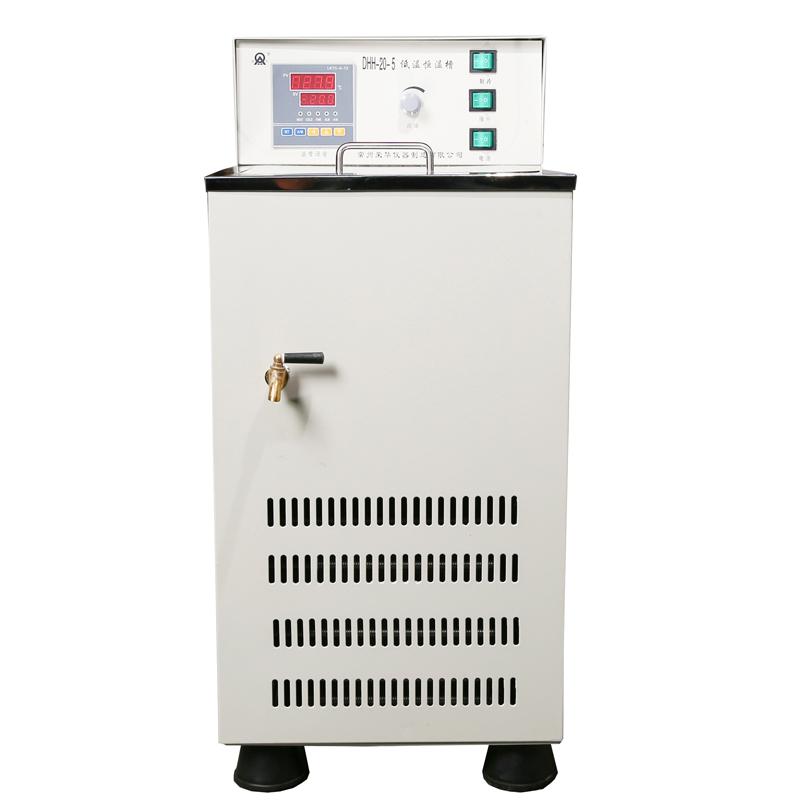

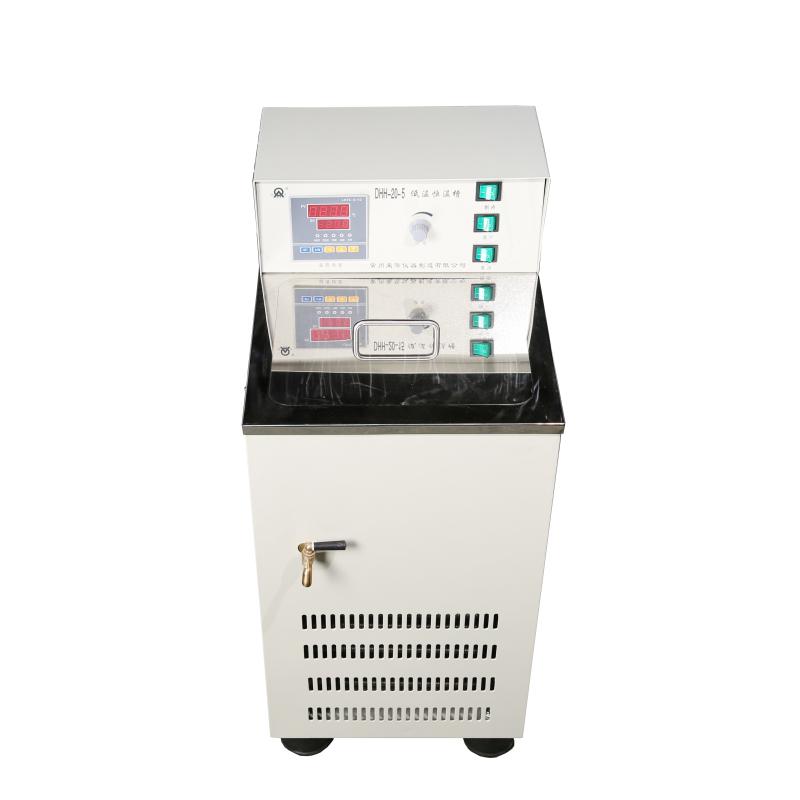

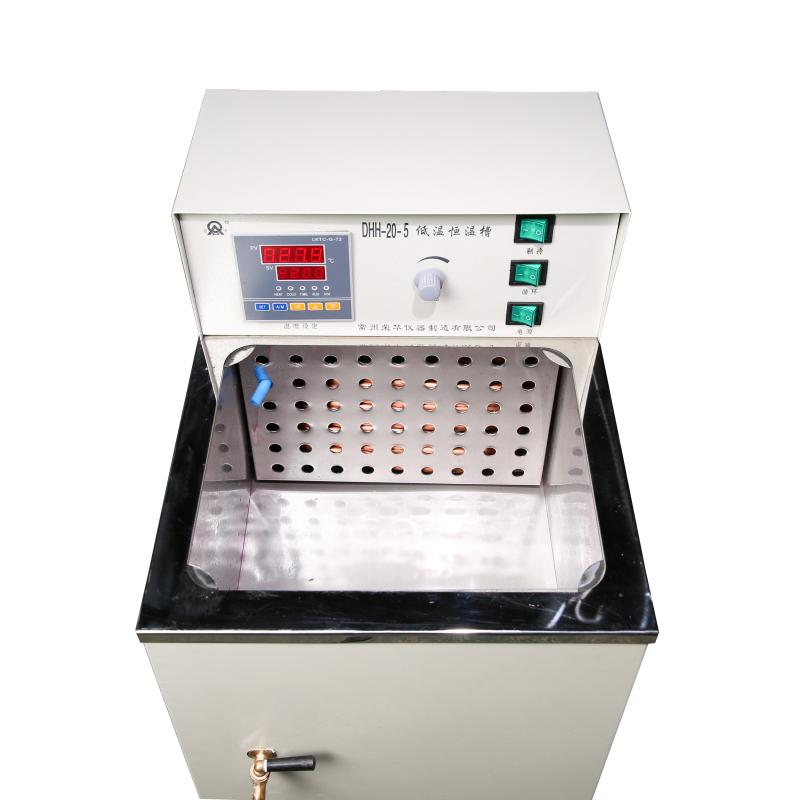

RONGHUA INSTRUMENT DHH-20-5 Low Temperature Circulating Bath is a thermostatic device with a Temperature range of -20 ° C to 100 ° C, providing 5L working volume, opening dimensions of 180 * 140mm, Tank depth of 200mm, Temperature Fluctuation of +/- 1 ° C.
Features
1. Wide Temperature range -20 ℃ to 100 ℃
2. Temperature Fluctuation controlled within +/- 1 ℃
3. Provide 5L standard working volume
4. Equipped with adjustable circulating pump, Flow rate 0~ 6L adjustable
5. Use alcohol as the refrigeration medium
6. Compact Dimension 470 * 350 * 760mm
Principle
The Low Temperature Circulating Bath reduces the temperature of the medium in the tank to a set value through the refrigeration system, and uses a circulating pump to make the medium flow evenly in the tank to maintain a constant low temperature environment. The Temperature Control system monitors and adjusts the temperature in real time to ensure that Fluctuation is within the range of +/- 1 ° C.
Applications
Laboratory temperature control, scientific research experiments, material testing, biological sample preservation, chemical reaction thermostatic
Standards
The product information does not mention the specific standards met
Steps
1. Place the equipment in a smoothly ventilated place
2. Connect the power supply and turn on the power switch
3. Set the required temperature value
4. Adjust the Flow rate of the circulating pump to the appropriate size
5. Wait for the temperature to reach the set value and put in the sample.
6. Turn off the power after use
Notice
• Make sure the equipment is placed smoothly before use
• Power supply voltage matching
• Regularly check the refrigeration medium level
Avoid use in humid environments
• Please disconnect the power supply when cleaning
• Non-professionals should not disassemble the equipment
