Overview

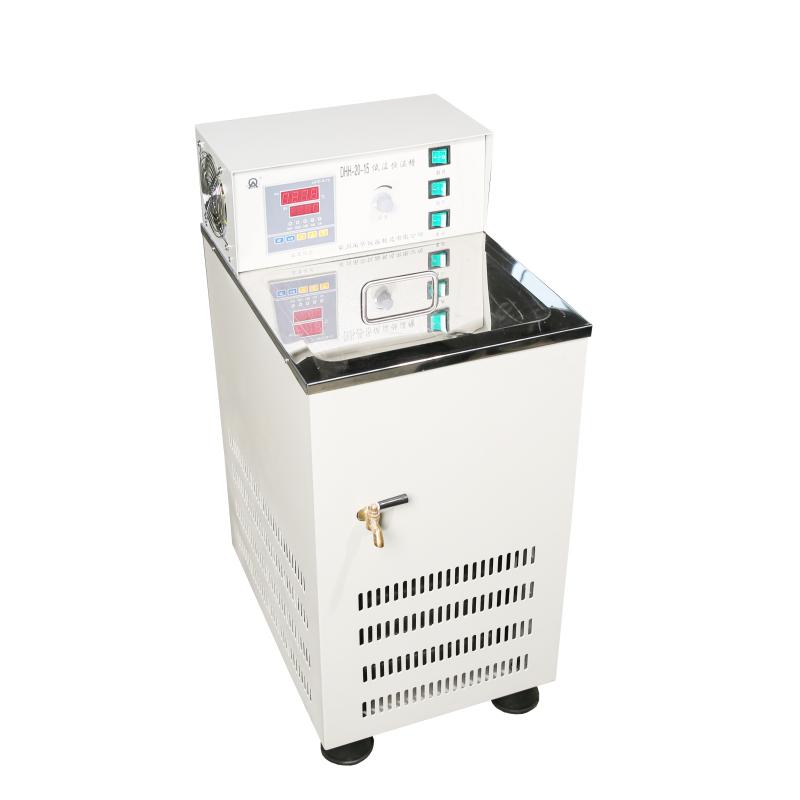

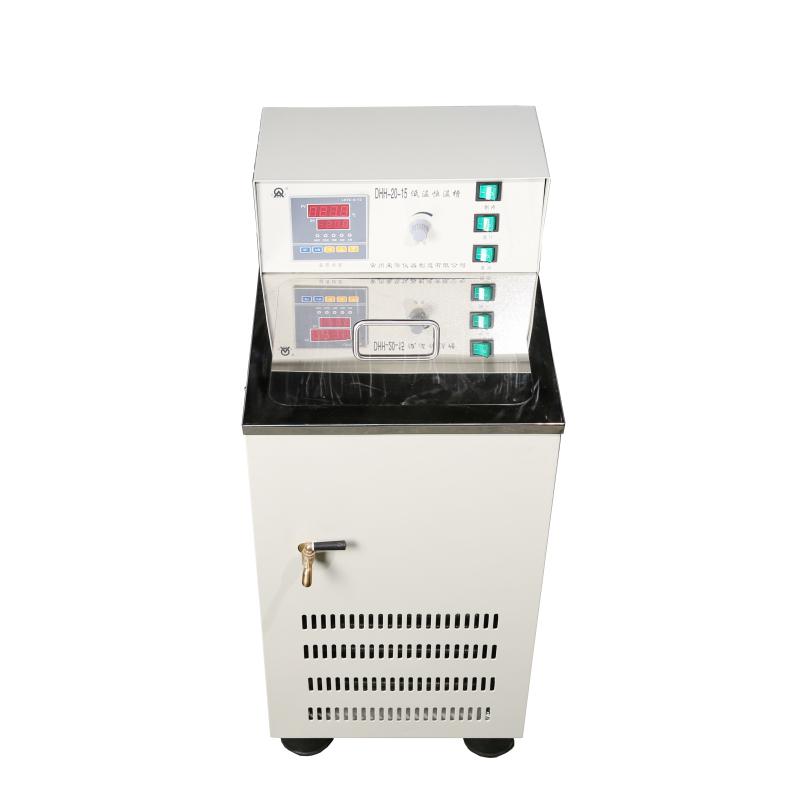

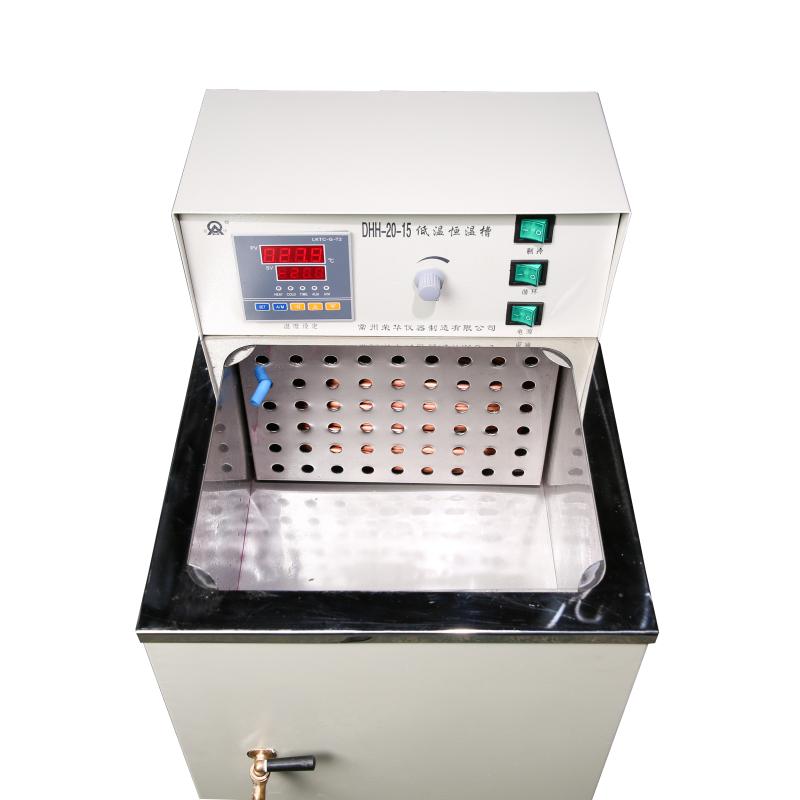

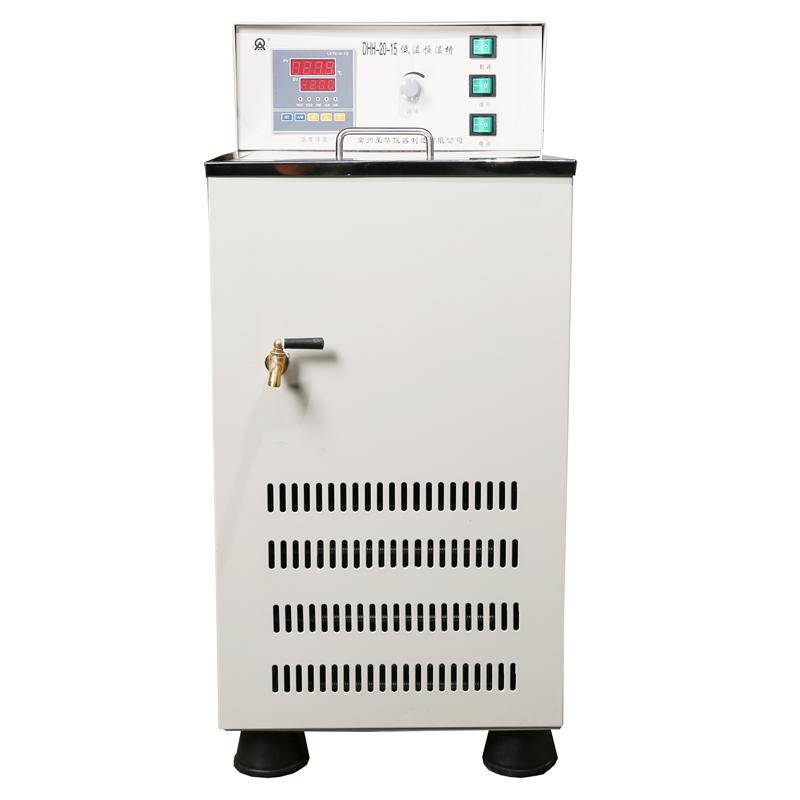

RONGHUA INSTRUMENT DHH-20-15 Low Temperature Circulating Bath is a thermostatic device with a Temperature range of -20 ° C to 100 ° C, Temperature Fluctuation of +/- 1 ° C, 15L working volume (300 * 250 * 200mm), Tank opening dimensions of 300 * 250mm.
Features
1. Wide Temperature range -20 ℃ to 100 ℃
2. Temperature Fluctuation controlled within +/- 1 ℃
3. Provide 15L large-capacity working capacity
4. Flow rate of circulating pump 0~ 6L adjustable
5. Use alcohol as the refrigeration medium
Principle
Low Temperature Circulating Bath chills down the medium (alcohol) in the tank to the set temperature through the refrigeration system, and uses a circulating pump to keep the medium flowing to ensure that the temperature is uniform and stable within the fluctuation range of +/- 1 ° C.
Applications
Laboratory temperature control, scientific research experiments, industrial testing
Standards
The product information does not mention specific compliance standards
Steps
1. Power on and turn on the device
2. Set the required temperature
3. Adjust the Flow rate of the circulating pump to the appropriate level
4. Wait for the temperature to stabilize and put in the sample.
5. Turn off the device and cut off the power after use
Notice
• Make sure the medium (alcohol) in the tank is sufficient before use
• Avoid operating outside the range of -20 ° C to 100 ° C
• Regularly check the working status of the circulating pump
• Do not block the ventilating port when the equipment is running
• Please disconnect the power supply first when cleaning
