Overview

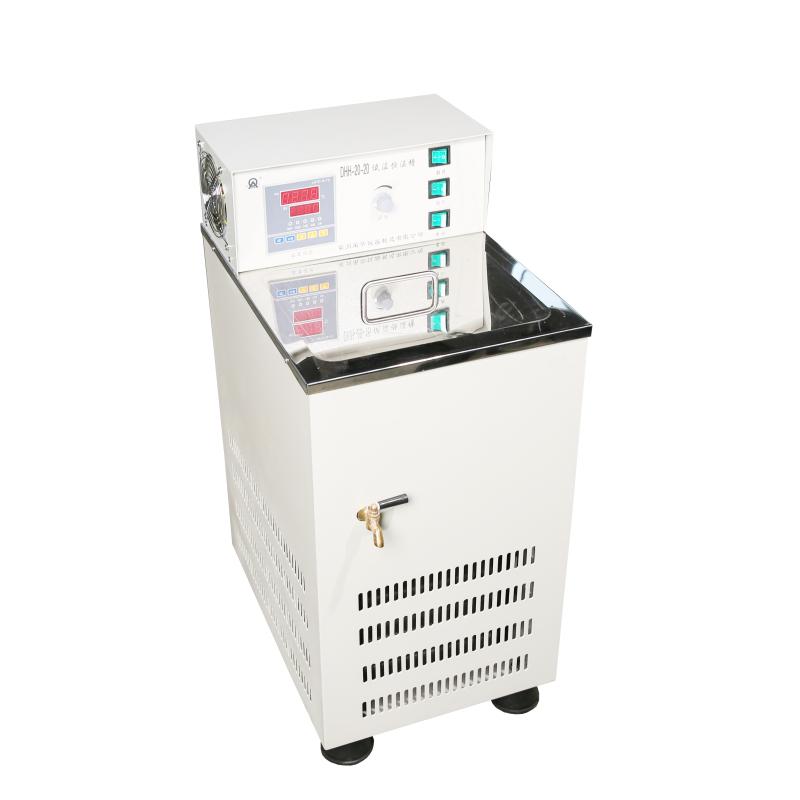

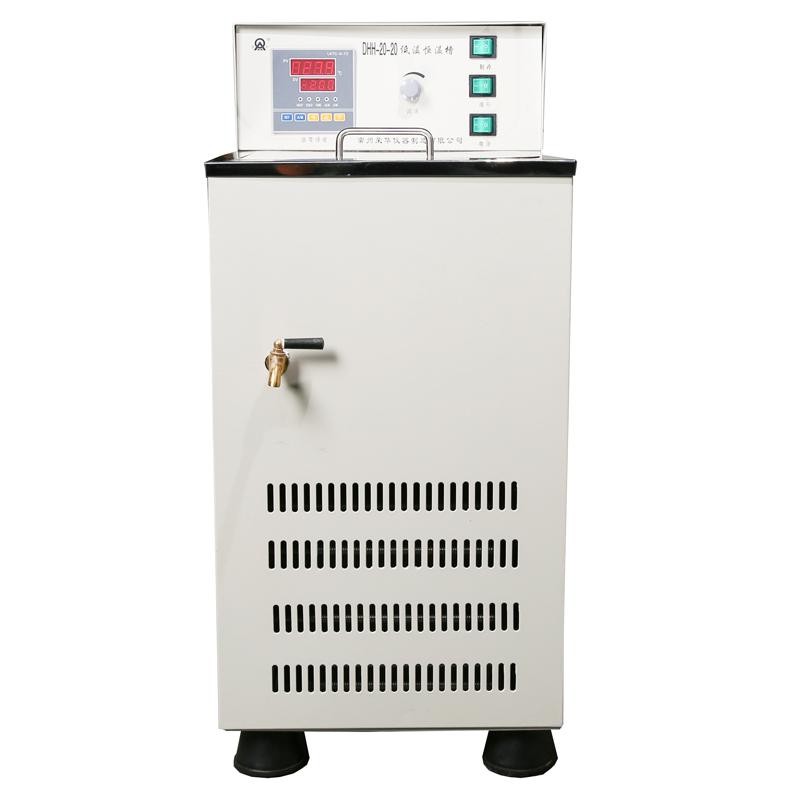

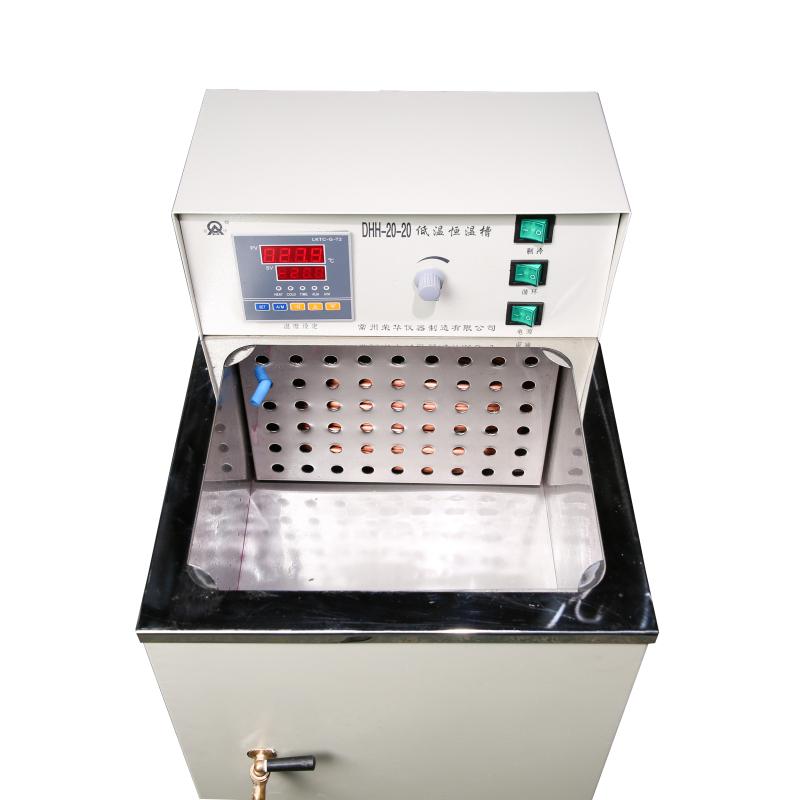

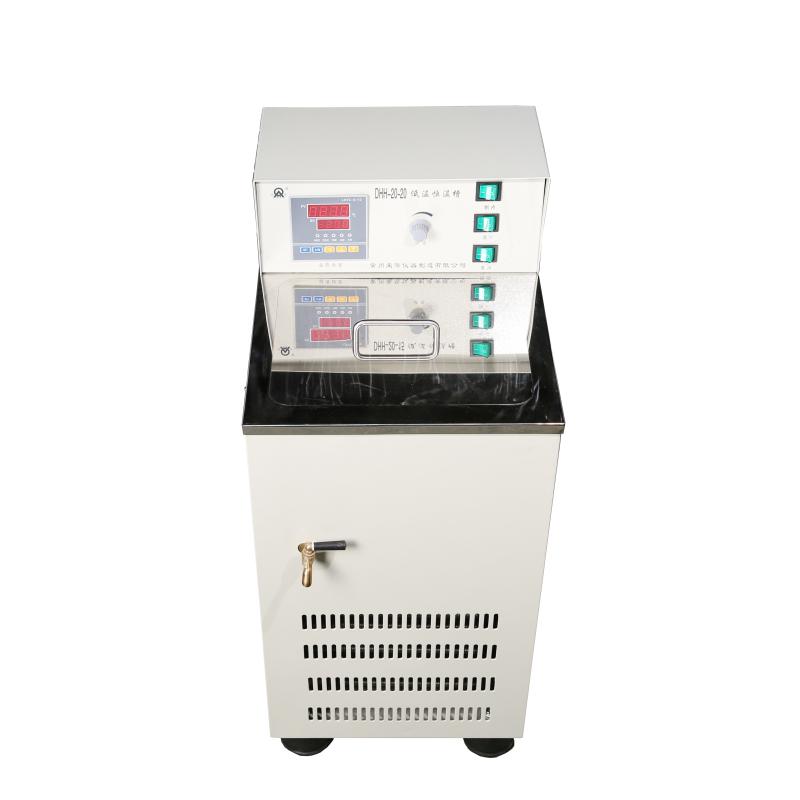

RONGHUA INSTRUMENT DHH-20-20 Low Temperature Circulating Bath is a thermostatic device with a Temperature range of -20 ° C to 100 ° C, Temperature Fluctuation of +/- 1 ° C, providing 20L working volume (300 * 250 * 260mm), opening dimensions of 300 * 250mm.
Features
1. Wide Temperature range -20 ℃ to 100 ℃
2. Temperature Fluctuation controlled within +/- 1 ℃
3. Provide 20L large capacity working capacity
4. Equipped with adjustable circulating pump, Flow rate 0~ 6L
5. Use alcohol as the refrigeration medium
Principle
The Low Temperature Circulating Bath reduces the temperature in the tank to a set low temperature through the refrigeration system and maintains a thermostatic state using the heating system. The circulating pump adjusts the Flow rate to ensure uniform temperature distribution in the tank for accurate temperature control.
Applications
Laboratory, Research, Industrial Testing, Materials Research, Biomedical
Standards
The product information does not mention the specific standards met
Steps
1. Place the equipment in a smoothly ventilated place
2. Connect the power supply and turn on the power switch
3. Set the required temperature value
4. Adjust the Flow rate of the circulating pump to the appropriate range
5. Wait for the temperature to stabilize and start using it.
6. Turn off the power after use
Notice
• Make sure the equipment is placed on a smooth surface before use
• Be careful to avoid liquid splashing during operation
• Regularly check the refrigeration medium level
• Please disconnect the power supply when cleaning
• Non-professionals should not disassemble the equipment
