Overview

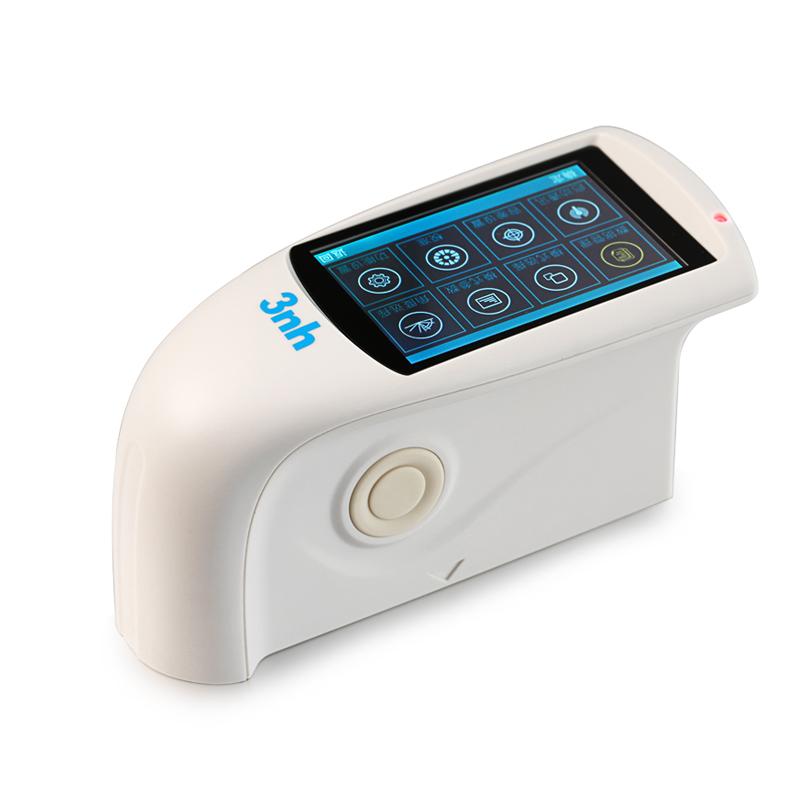

Sanenchi NHG268 glossmeter is a smart precision Glossiness Meter with three measurement Angles of 20 °, 60 ° and 85 °. It adopts full touch operation and large screen display. It is equipped with high-end quality management software. It is powered by lithium batteries and has a long service life. The instrument has various Measurement modes such as basic measurement, statistical measurement, continuous measurement, quality control measurement, etc., and can manually enter Glossiness values, which is simple and convenient to operate.
Features
1, with 20 °, 60 °, 85 ° three Measurement Angles, can be measured simultaneously;
2, 3.5 inch large capacitive touch screen, high resolution (480 * 320) full viewing angle display, full function touch operation;
3. PC-side quality management software is powerful.
4. Glossiness data can be entered manually for easy operation.
5. High hardware configuration, incorporating a number of innovative technologies.
6. Comply with ISO 2813, ASTM D 523, GB/T 9754 standards.
7. Good combination of aesthetic surface design and ergonomic structure.
8. Three Operating Modes, Multiple Function Settings to Meet Different Needs;
9. Large-capacity storage space, capable of storing 1,000 basic records, 5,000 statistical records, and 5,000 consecutive records.
Principle
The NHG268 glossmeter assesses Glossiness by measuring the reflection characteristics of light rays on the sample surface, covering different Gloss ranges at three angles of 20 °, 60 °, and 85 °. Calibration plates are built into the instrument for periodic calibration to ensure measurement accuracy. Measurement data is displayed on a color display and can be communicated with external devices via USB or RS-232 interfaces.
Applications
Paints, inks, Coatings, Eletroplating, Plastic Electronics, Hardware
Standards
ISO 2813、ASTM D 523、GB/T 9754
Steps
1. Long press the switch/measurement button for 3 seconds to turn it on;

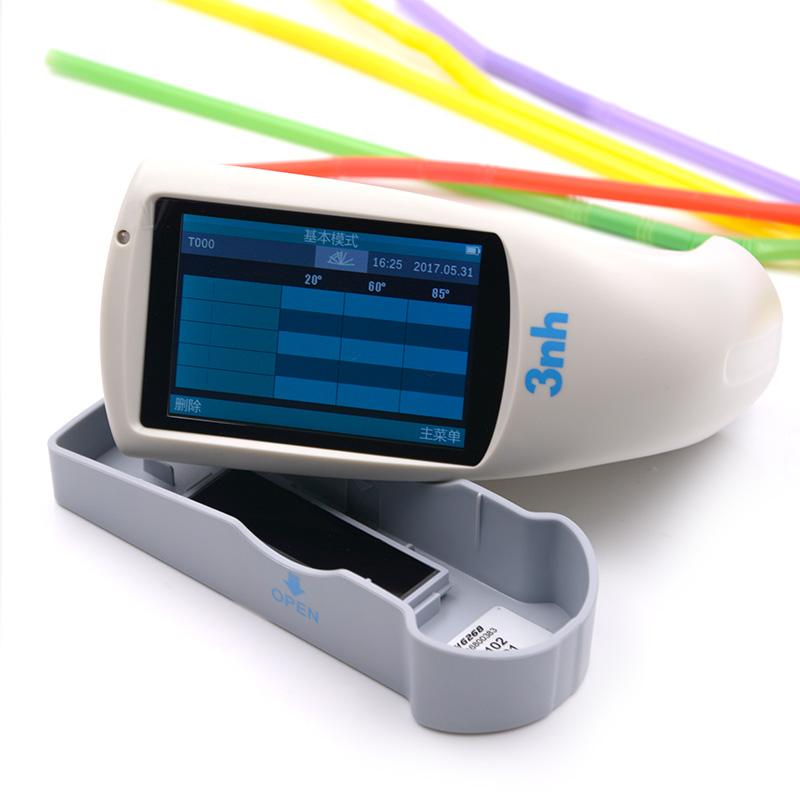

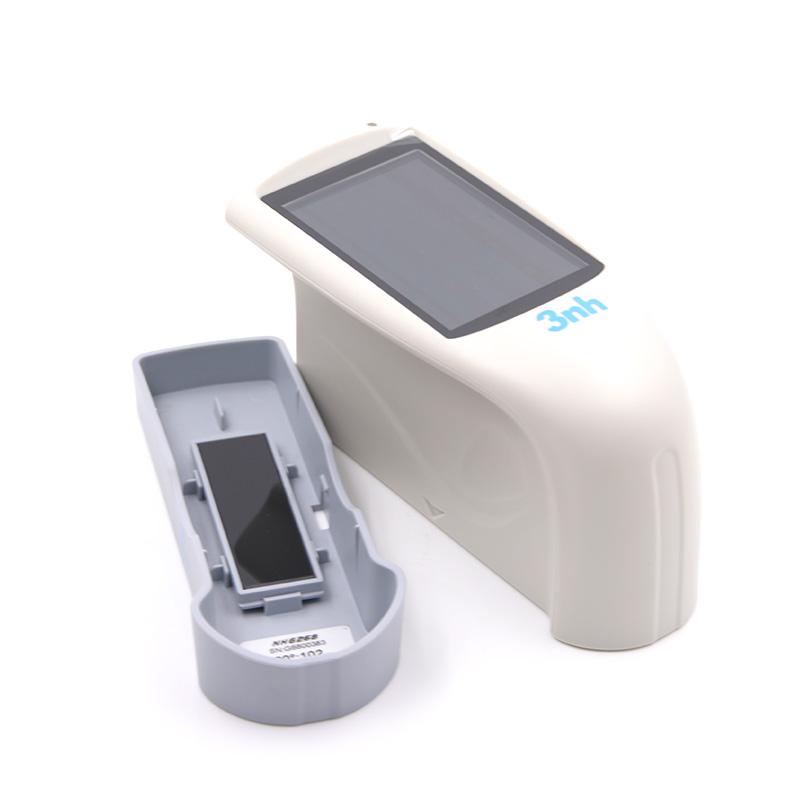

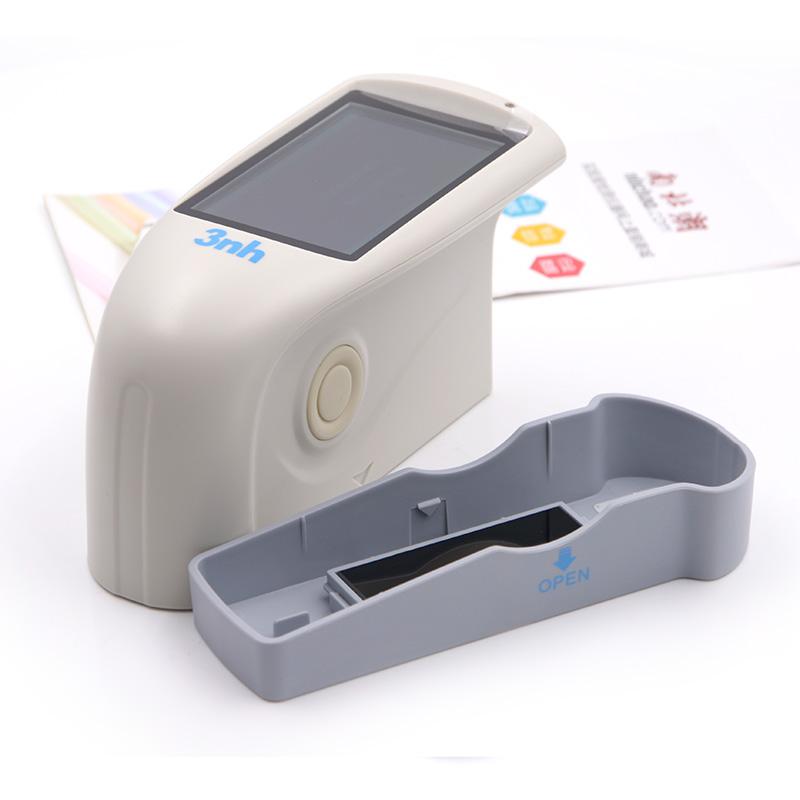

2. Calibrate the instrument with the built-in calibration plate of the protective cover;
3, short press the switch/measurement button for measurement;
4. Select Measurement mode (Basic, Statistical, Continuous or Quality Tube) through Touchscreen;
5, view the measurement data on the display screen;

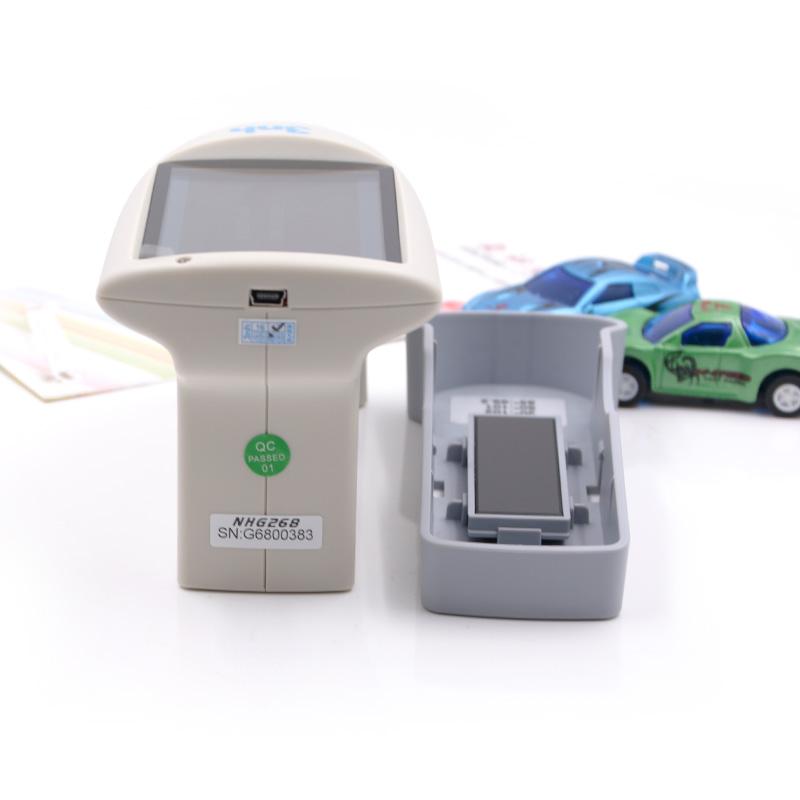

6. You can connect to a PC through the USB interface to use quality management software, or connect to a printer through RS-232.
7. After use, press and hold the switch/measurement button for 3 seconds to shut down.
Notice
• The green light is on when booting, and the light is off after booting; the red light warns when the power is insufficient
• The red light is always on during charging, and the green light is always on after being fully charged.
• Using External Power Adapter Specification is 5V2A
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 50 ℃
• relative humidity should be less than 85% RH without condensation
Calibrate instruments regularly with built-in Calibration plate to ensure accuracy
