Overview

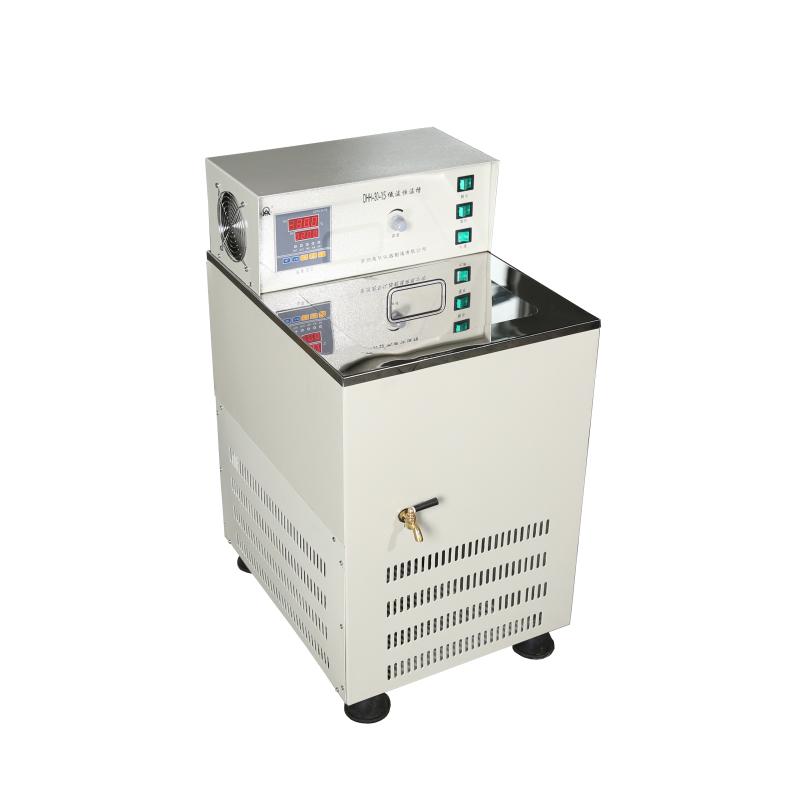

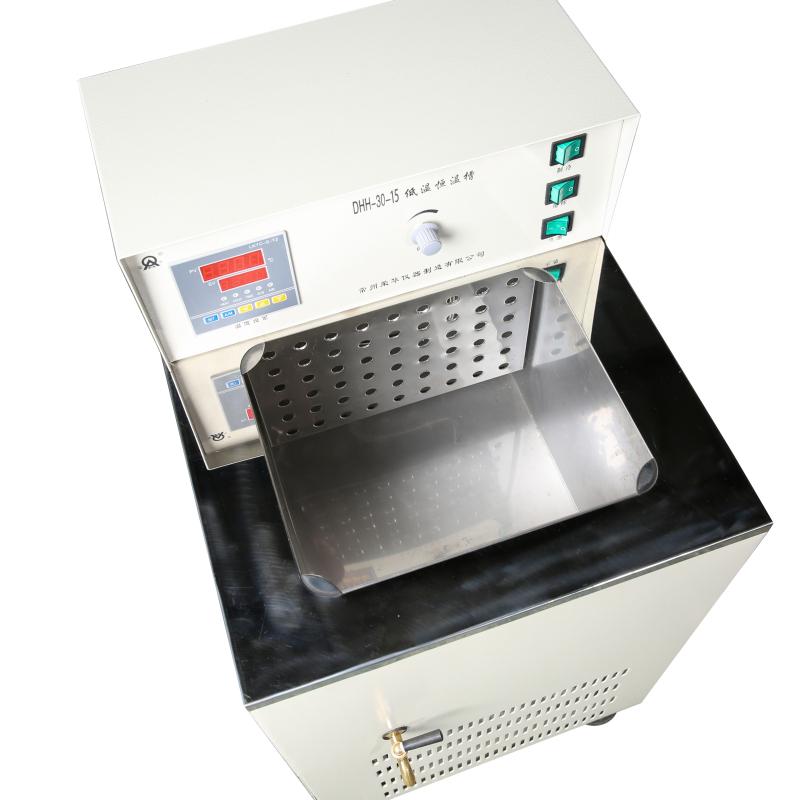

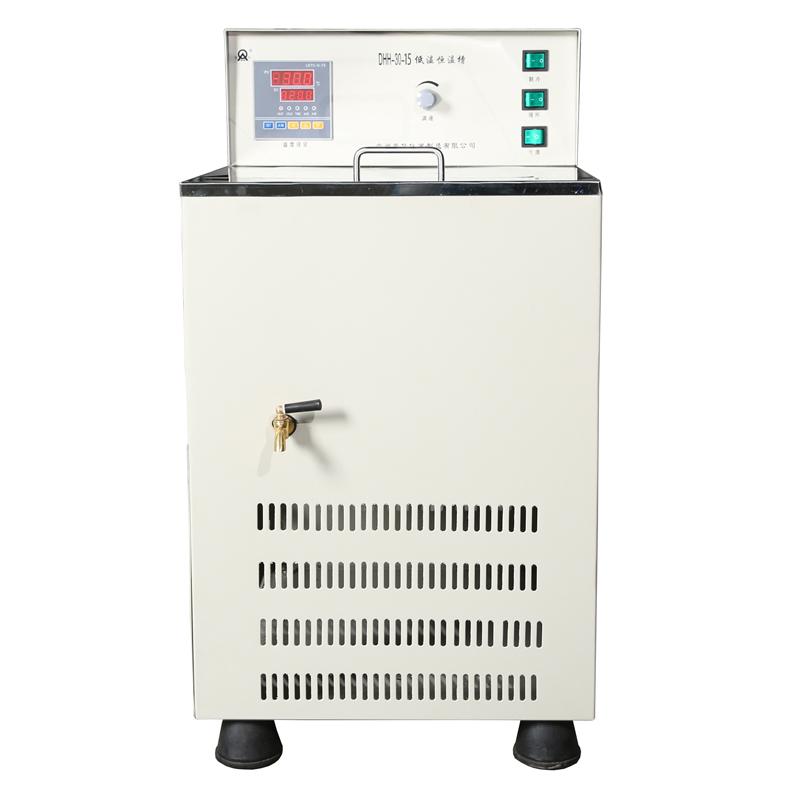

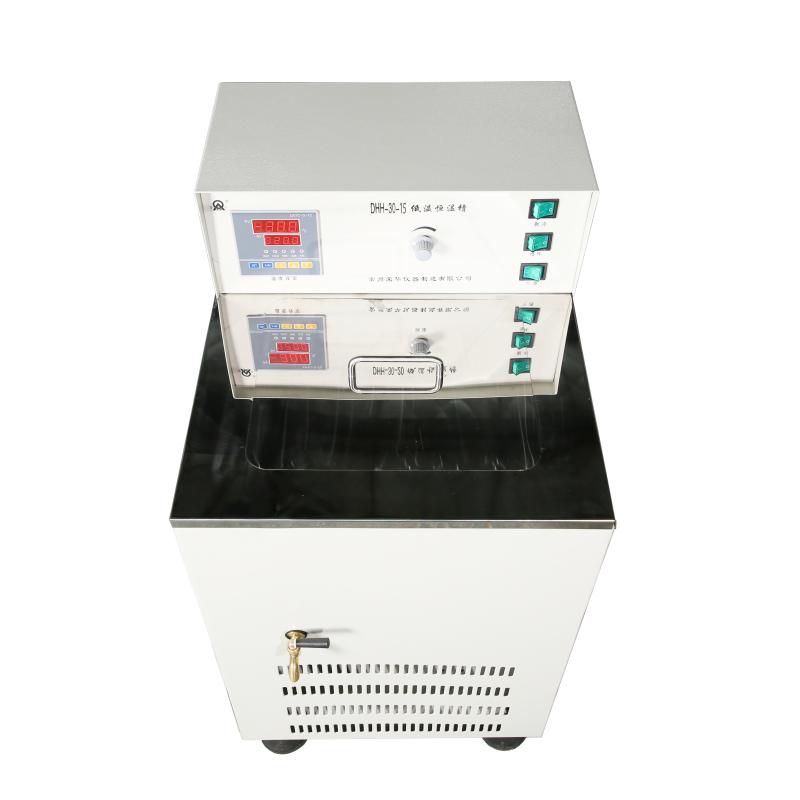

RONGHUA INSTRUMENT DHH-30-15 Low Temperature Circulating Bath is a thermostatic device with a Temperature range of -30 ° C to 100 ° C, Temperature Fluctuation of +/- 1 ° C, 15L working volume (300 * 250 * 200mm), opening dimensions of 300 * 250mm.
Features
1. Wide Temperature range -30 ℃ to 100 ℃
2. Temperature Fluctuation controlled within +/- 1 ℃
3. Provide 15L Large Capacity Tank
4. Flow rate of circulating pump 0~ 6L adjustable
5. Use alcohol as the refrigeration medium
Principle
The Low Temperature Circulating Bath chills down the medium in the Tank to the set temperature through the refrigeration system, and uses a circulating pump to keep the medium flowing to ensure uniform and stable temperature. The Temperature Control system monitors and adjusts in real time to maintain the target temperature.
Applications
Laboratory thermostatic experiments, sample thermostatic treatment, material testing, chemical reaction thermostatic control
Standards
The product information does not mention specific compliance standards
Steps
1. Place the equipment in a smoothly ventilated place
2. Connect the power supply and turn on the switch
3. Set the target temperature value
4. Start the circulating pump and adjust the Flow rate
5. Wait for the temperature to stabilize and put in the sample.
6. Turn off the power after use
Notice
• Ensure that the medium in the Tank is sufficient before use
Avoid operating equipment in humid environments
• Regularly check the running status of the circulating pump
• Do not block the ventilating port when the equipment is running
• Please disconnect the power supply first when cleaning
