Overview

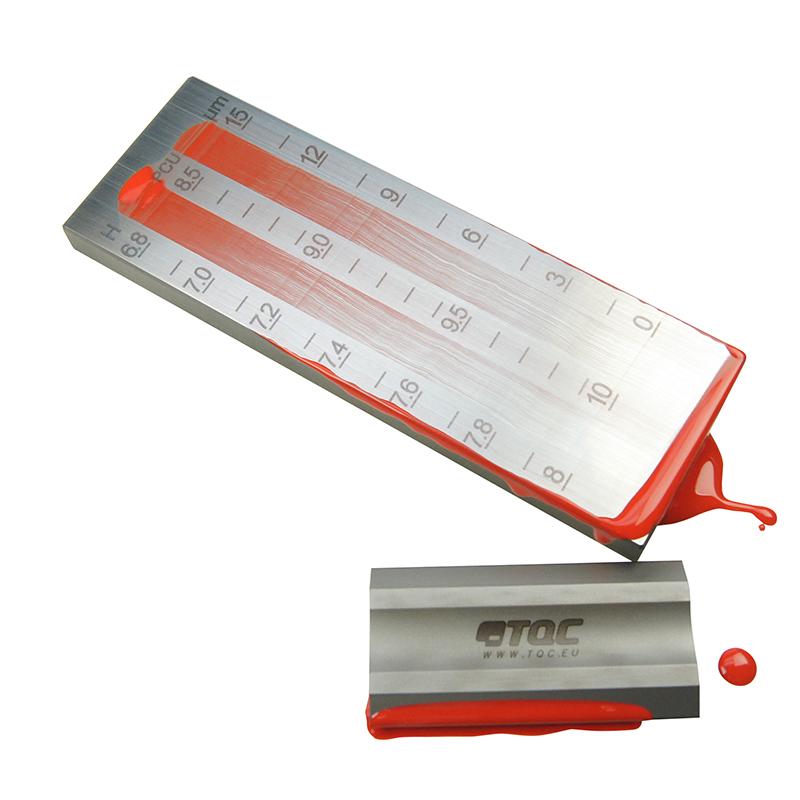

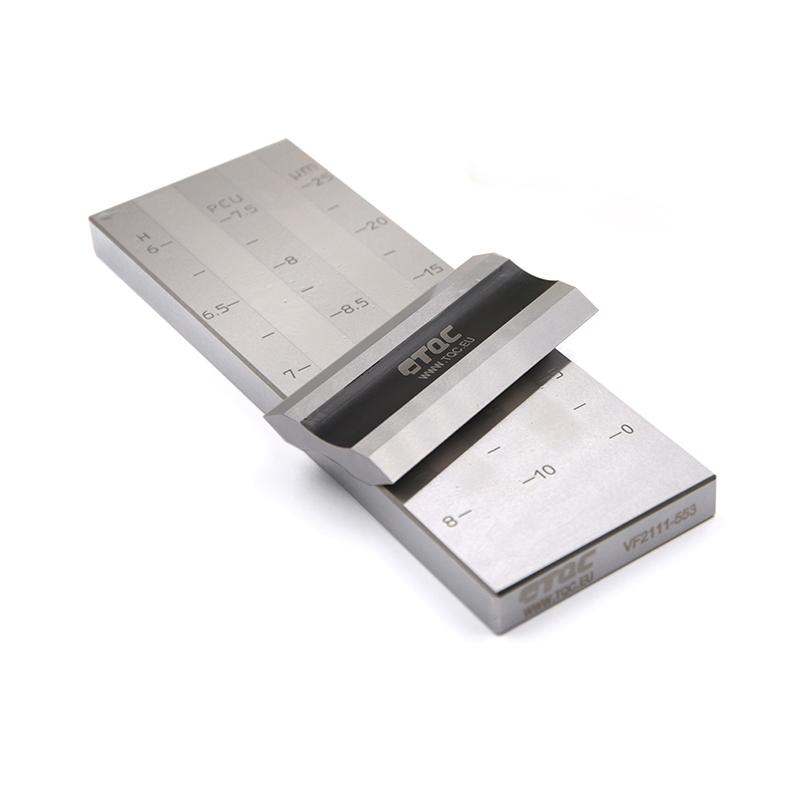

TQC VF2106 single-channe Fineness Gauge is a precision scraper fineness grindometer with a range of 0-50μm, hardened and polished tool steel with an accuracy of +/- 2μm. This product is widely used in the detection of particle size and fineness of grinding such as Coating colorants, paints varnish, pigment filler, etc.
Features
1. Precision instruments, accuracy +/- 2μm.
2. Ergonomic drawdown blade for easy grip.
3. Multiple models are available.
4. Using ASAB Stavax ESR stainless steel tool steel, Sub Zero vacuum hardening (+ 1756 ° C to -70 ° C), Hardness HRC 55.
5. Surface polishing treatment.
Principle

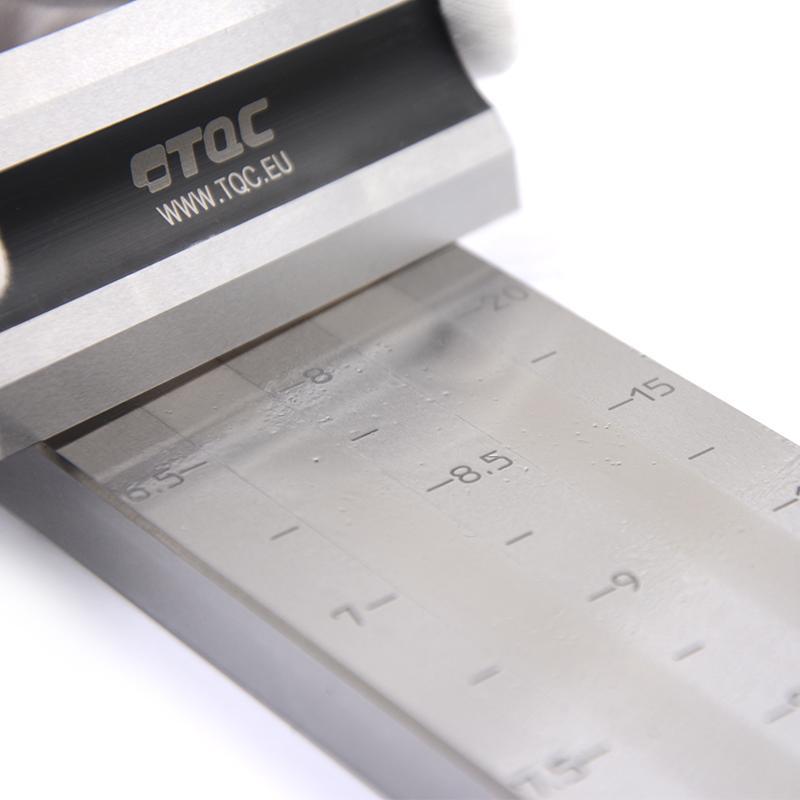

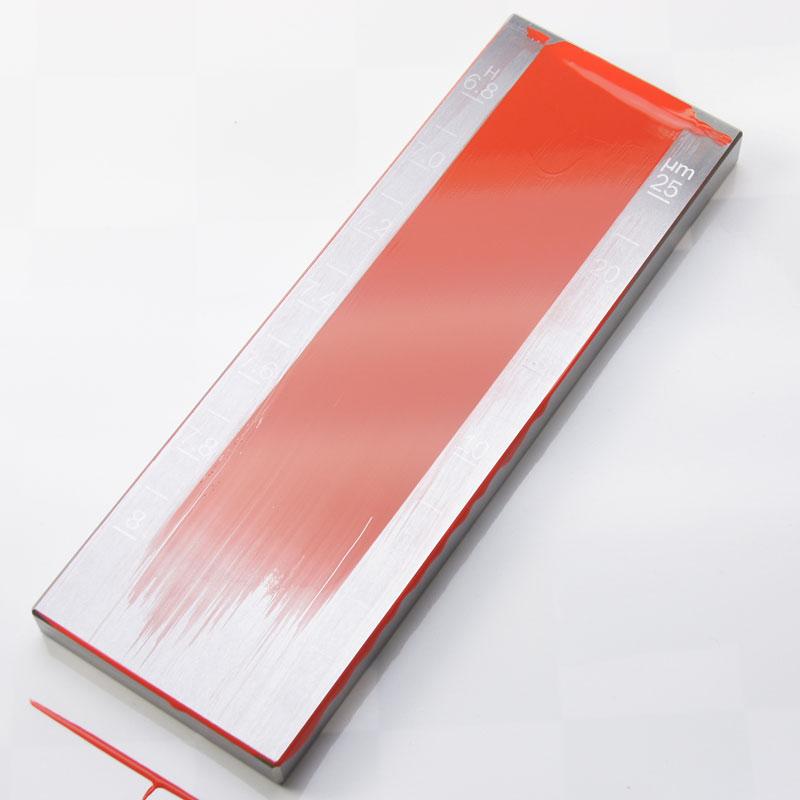

The Fineness Gauge scrapes the sample on the single-channe scraper by a drawdown blade, detects the particle size and fineness of grinding according to the groove depth change, and reads the fineness value using a precision scale.
Applications
Coating colorants, paints varnishes, pigment fillers and other particle size and fineness of grinding inspection
Standards
ASTM D 1210、ASTM D 1316、JIS K 5600-2-5、ISO 1524、DIN EN 21524、BS 3900-C6
Steps

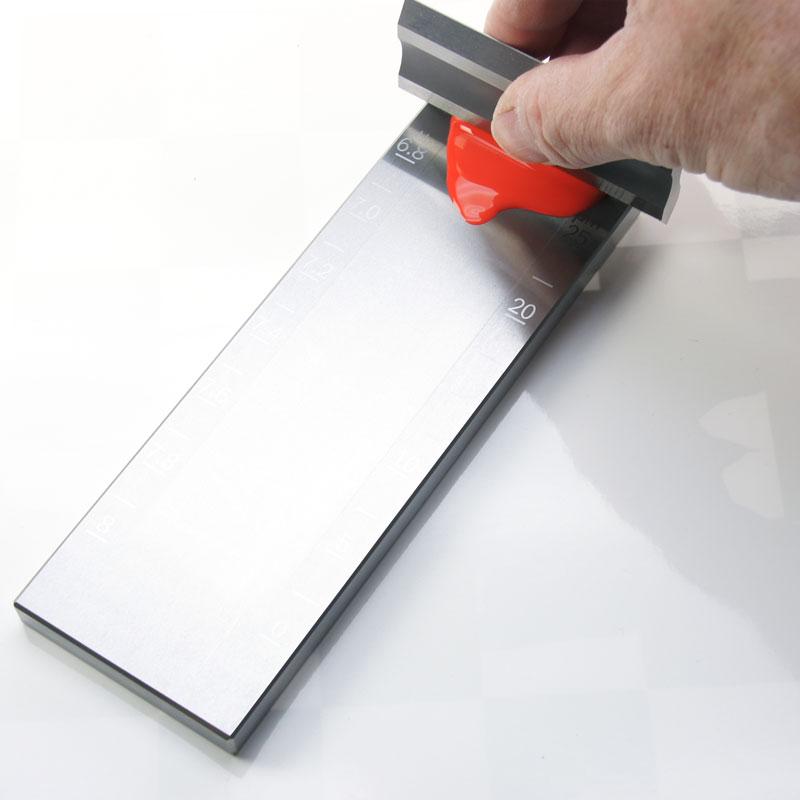

1. Prepare the sample and place it on the scraper.
2. Use a drawdown blade to scrape the sample evenly along the groove.
3. Observe and read the fineness scale value in the groove.
Notice
• Ensure that the scraper and drawdown blade are clean and free of contamination before use.
• Keep scraping evenly during operation to avoid excessive force.
• Periodically calibrated to maintain accuracy.

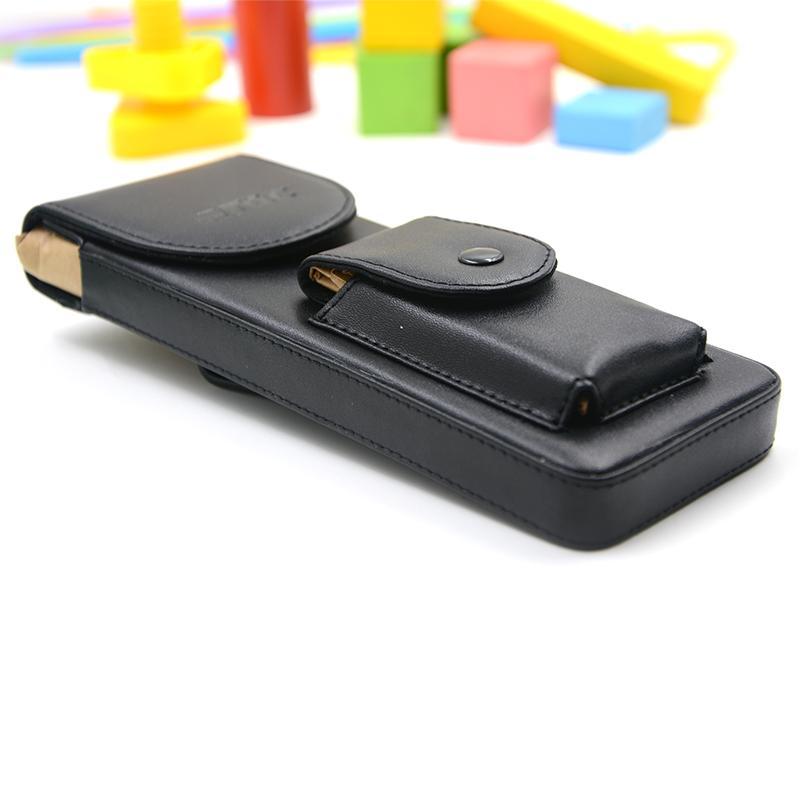

• Avoid moisture and corrosion environments during storage.
