Overview

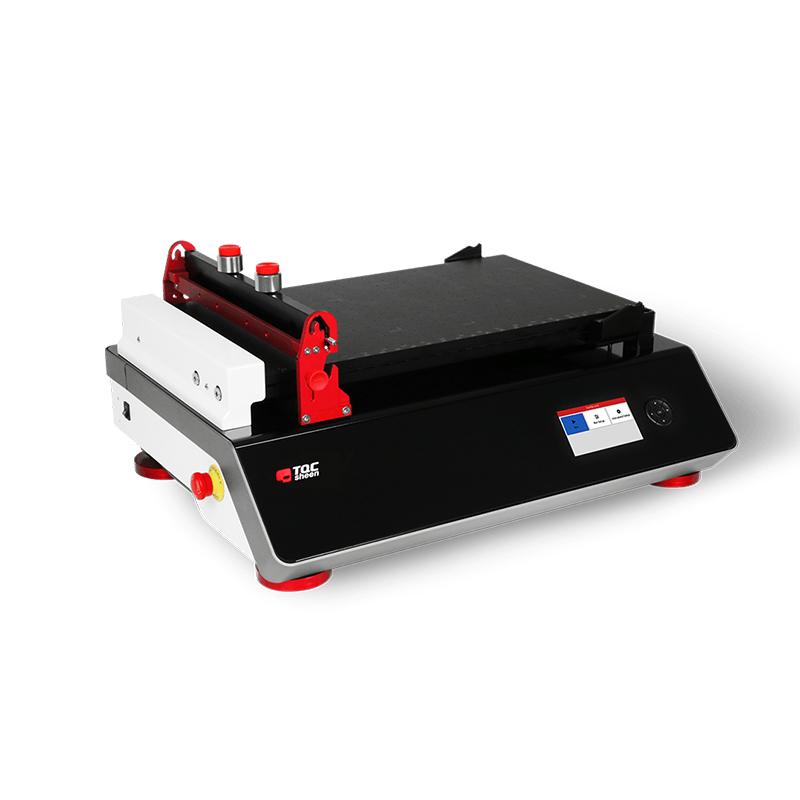

The TQC AB4220 Automatic Film Applicator features a reliable base design that allows film to be applied to test jams, panels or foils in a uniform and repeatability manner, effectively eliminating changes caused by human factors. This model comes standard with a perforated vacuum bed, suitable for laboratory precision film needs.
Features
1. Larger film and scruf space
2. Compatible with a wider range of film application tools
3. Optional drying time record
4. The preset range is optional
5. Easy and intuitive operation space (intelligent lighting interface)
6. Paper clip/vacuum can be operated manually
7. Full color LCD screen
8. Easy-to-update software
Principle
Automatic Film Applicators ensure uniform film thickness over the entire surface by precisely controlling variable factors such as speed, pressure, and draft direction. Using a standard block type film coating applicator or spiral rod type film applicator, combined with a Vacuum chuck system, achieves repeability of sample prepative.
Applications
Rheological performance testing, abrasion resistance testing, hiding power testing, Glossiness testing
Steps
1. Prepare the test substrate and place it on a vacuum bed
2. Select the appropriate film application tool
3. Set Spreader parameters through TripleI ® navigation tool
4. Start the automatic film program
5. Record drying time (optional)
6. Remove the sample after finishing the film
Notice
• Ensure that the maximum test cardboard thickness does not exceed 9mm
• The maximum thickness of the test substrate shall not exceed 35mm
• The length of the coating rod should be more than 345mm
• The diameter of the coating rod shall not exceed φ 10mm
• Miscellaneous film applicator width should be ≤ 300mm
• Miscellaneous film applicator height should be within 10~ 80mm
• Operating temperature must not exceed + 100 ° C Ambient Temperature
• Vacuum chuck system working properly before use
