Overview

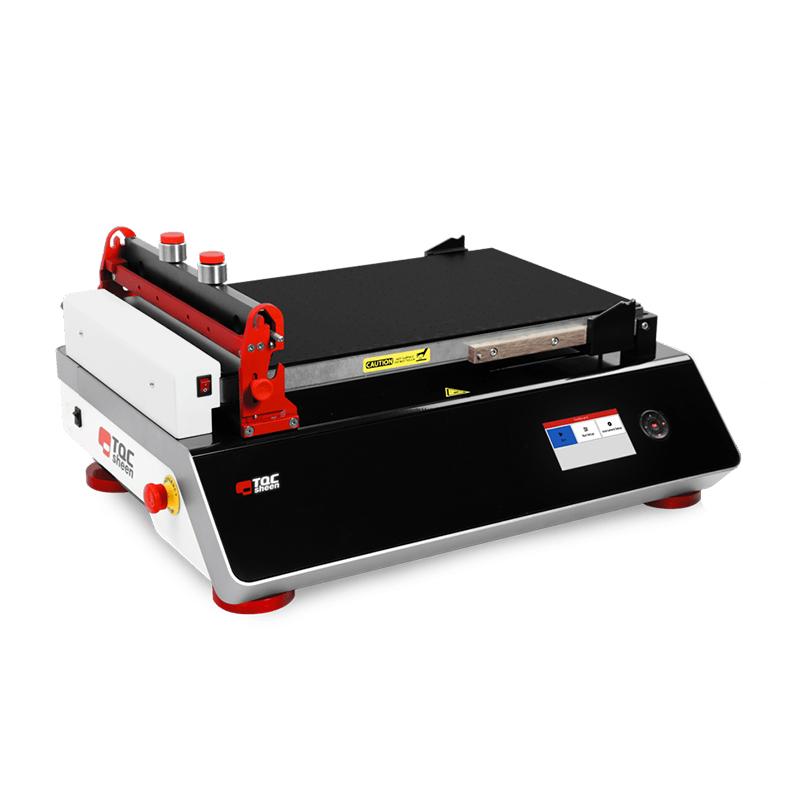

The TQC AB4405 Automatic Film Applicator is a professional device for applying film uniformly and repeatability to test jams, panels or foils, effectively eliminating human-induced changes. The device comes standard with a perforated heating vacuum bed and supports a 115VAC power supply for a reliable film base.
Features
1. Larger film and scruf space
2. Compatible with a wider range of film application tools
3. Optional drying time record
4. The preset range is optional
5. Easy and intuitive operation space (intelligent lighting interface)
6. Paper clip/vacuum can be operated manually
7. Full color LCD screen
8. Easy-to-update software
Principle
Automatic Film Applicator controls variables such as speed, pressure and draft direction to ensure uniform film thickness and eliminate irregularities such as shear rate and applicator weight. The device uses a standard block type film coating applicator or a spiral rod type film applicator, combined with TripleI ® intelligent lighting interface, to guide the operator through the film process and achieve repeability of the sample. Preparative.
Applications
Rheological Properties, Abrasion Resistance, Hiding Power and Glossiness of Applied Media
Steps
1. Set Spreader parameters through TripleI ® navigation tool
2. Select coating speed and stroke length
3. Use a paper clip or Vacuum chuck to secure the test substrate
4. Start the film process, the equipment automatically uniform Spreader
5. Optional record drying time
Notice
• Make sure the power supply matches (AB4405 is 115VAC)
• The length and diameter of the coating rod must be within the allowable range (minimum length 345mm, maximum diameter φ 10mm)
• The maximum test cardboard thickness does not exceed 9mm
• The application width does not exceed 325mm
• Pay attention to temperature control during operation, the heating bed can be raised to + 100 ° C above Ambient Temperature
