Overview

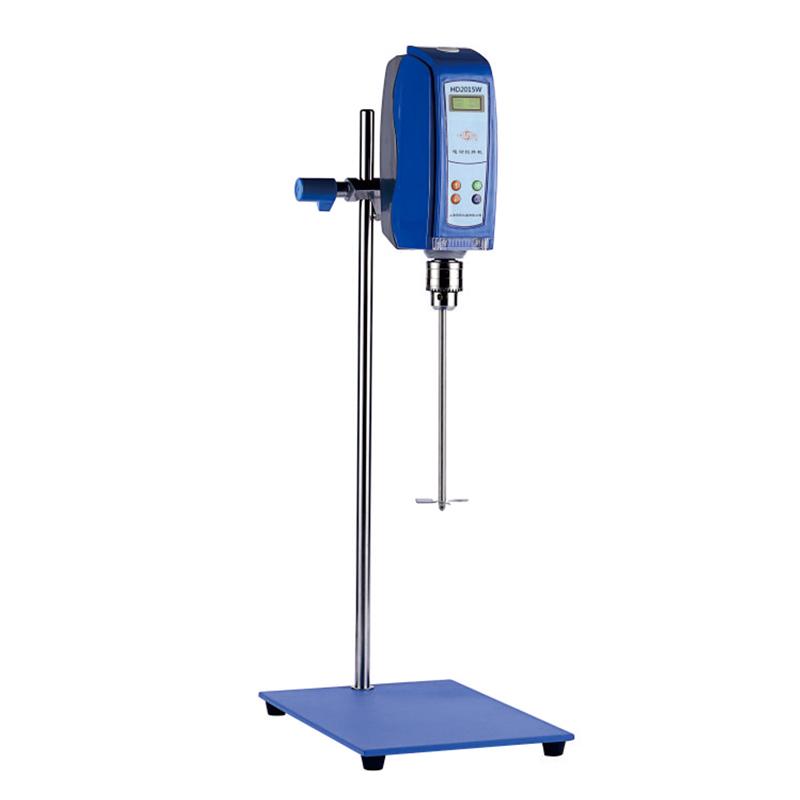

The vertical HD2015W powerbasic stirrer adopts digital control technology to replace the original analog control, realizes constant speed operation through deep closed loop, and can maintain constant power operation at low speed. The device supports tact switch speed regulation and can be reversed according to stirring needs.
Features
1. Adopt digital control technology to improve accuracy and Stability
2. Deep Closed Loop Constant Speed System, Constant Power at Low Speed
3. Tap switch speed regulation, easy to operate
4. Support reversal function to adapt to different mixing needs
5. Timing function can be set to 0-9999 minutes, flexible control Working time
Principle
The powerbasic stirrer enables deep closed-loop constant speed operation through a digital Control system, ensuring constant power output at low speeds. Speed regulation is carried out by tactile switches, allowing users to adjust Rotation speed on demand and supporting reverse operation to meet specific stirring requirements.
Applications
Laboratory mixing, Chemical production, Food processing, Pharmaceutical mixing, Material prepative
Standards
Power supply voltage Ac100V-230V
Steps
1. Plug in the power supply and the instrument enters standby state
2. Press the ↑ and? keys to set the Rotation speed, change 10 revolutions per press, and long press to accelerate the change
3. If you need to reverse, press the ↑ key first when it stops, and then press the M key. When the display screen shows -RS downwards, release the M key, and then release the ↑ key.
4. Timing setting: Long press the M key to enter the timing state when the shutdown is stopped, press the ↑ and? keys to set the time (minutes), and then press the M key to exit
5. Automatically shut down when overloaded, press the M key to enter standby, and then press the M key to restart.
Notice
• It is dangerous to turn the stirring head, pay attention to the body, clothing and hair
• Prevent the stirring liquid from splashing out
• After the timing time is set, it is saved in the machine, and it is timed every time it is turned on. If you do not need timing, please adjust the time to 0.
• When the stirring load exceeds Power, it will automatically shut down, and you need to press the M key to restart.
