SILE INTRUMENT HD2004W powerbasic stirrer constant speed digital control 20000mPa · s viscosity

Name: SILE INTRUMENT HD2004W powerbasic stirrer constant speed digital control 20000mPa · s viscosity
Brand: SILE INTRUMENT
SKU: NB013434
Price: 332.0 USD
Availability: InStock

$ 332.00Ex works

Adopt digital control constant speed technology, maintain constant power operation at low speed, Max. Torque 0.3Nm, maximum processing viscosity 20000mPa · s, support reversible and timing functions.

Model

Vertical HD2004W

Get Quote

Category : Laboratory Mixer

Brand : SILE INTRUMENT

SKU : NB013434

Service :The delivery and service By NBCLab.Com

Overview

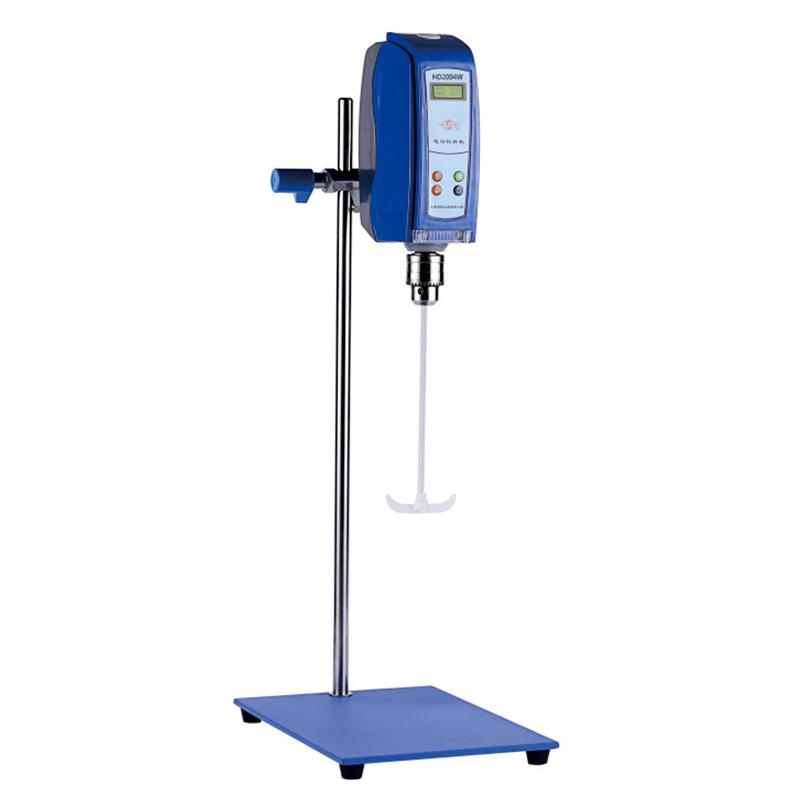

The vertical HD2004W powerbasic stirrer is a product of the SILE INTRUMENT brand. It adopts digital control technology and has a deep closed-loop constant speed function, which can realize constant power operation at low speed. The speed regulation adopts a touch switch and supports reverse operation to meet different mixing needs.

Features

1. Digital control technology is more accurate than analog control 2. Deep Closed Loop Constant Speed, Low Speed Constant Power Operation 3. Tap switch speed regulation, easy to operate 4. Reversible work to adapt to different mixing needs 5. Processing capacity up to 10L, Speed range 20~ 1600rpm 6. Timing function, range 0~ 9999min 7. Max. Torque 0.3Nm, Motor Power 40W 8. The clamping range of the rotating collet is ≤ 10 mm, and the maximum viscosity is 20000mPa · s.

Principle

The powerbasic stirrer achieves deep closed-loop constant speed through a digital Control system, ensuring constant Power output at low speeds. Rotation speed is adjusted by the user with a touch switch, the motor drives the stirring head swirl/spin, and the work can be reversed to adapt to different stirring conditions.

Steps

1. Plug in the power supply and turn on the power switch. 2. swirl/spin knob to adjust speed

Notice

• It is dangerous to turn the stirring head, pay attention to the body, clothing and hair • Prevent the stirring liquid from splashing out

Processing capacity
10L
stirring speed
20~1600r/min
Timer Range
0-9999min
Stick Size
Φ18*720mm
Dimension
350*250*770mm
Machine weight
9kg
Power supply Voltage
Ac100V-230V
Motor torque
0.3N·M
Motor Power
40W
Collet clamping Range
≤Φ10mm
Applicable medium viscosity
0-20000mpas

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
