Overview

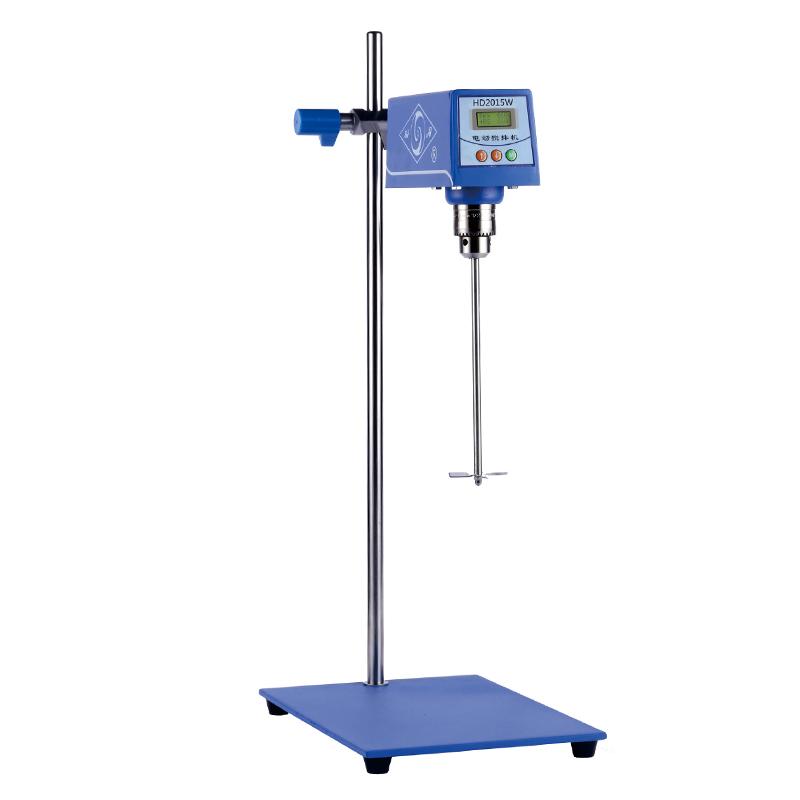

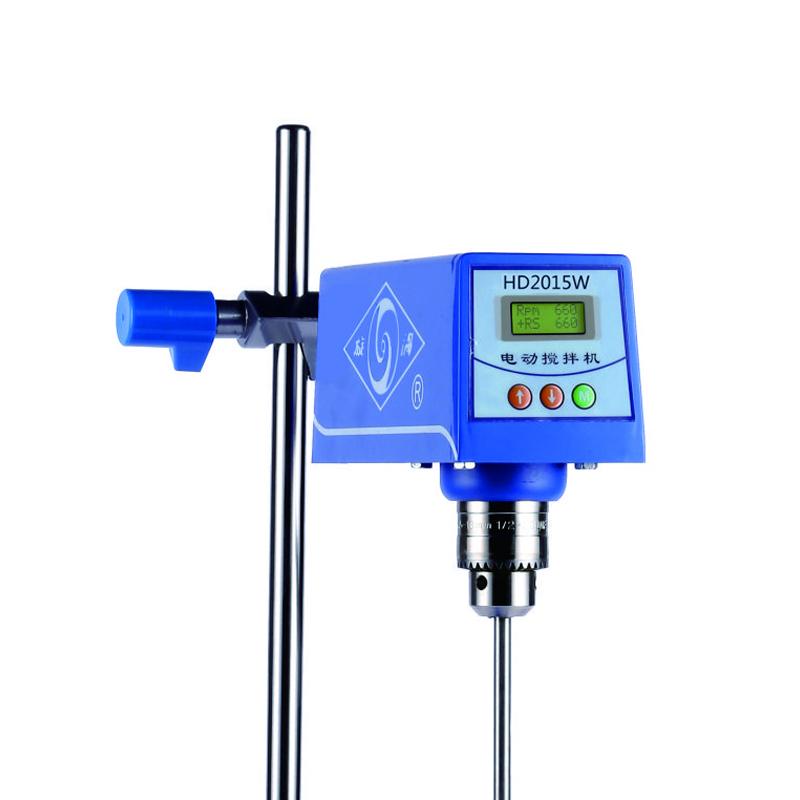

Horizontal HD2015W powerbasic stirrer is a SILE INTRUMENT brand product. It adopts digital control technology and has constant speed deep closed-loop function, which can realize constant power operation at low speed. Support tact switch speed regulation, and can reverse operation according to stirring needs.
Features
1. Digital control technology replaces analog control for more accurate operation
2. Constant speed adopts deep closed loop, constant power work at low speed
3. Tap switch speed regulation, easy to operate
4. Support reversal function to adapt to different mixing needs
5. Timer function can be set, Timer Range 0~ 9999 minutes
6. Automatic overload protection, safe and reliable
Principle
The powerbasic stirrer realizes Rotation speed adjustment through digital Control system, and adopts deep closed-loop technology to ensure constant speed operation. Power output is maintained at low speed, speed regulation is carried out by tact switch, and forward and reverse switching is supported to meet different mixing process requirements.
Applications
Laboratory mixing, Chemical production, Food processing, Pharmaceutical mixing, Material prepative
Steps
1. Plug in the power supply and the instrument enters standby state
2. Press the ↑ and? keys to set the Rotation speed, press the change 10 rpm, and long press to accelerate the change
3. If you need to reverse, press the ↑ key first when it stops, and then press the M key. When the display screen shows -RS downwards, release the M key, and then release the ↑ key.
4. Timing setting: Long press the M key to enter the timing state when the shutdown is stopped, press the ↑ and? keys to set the time (minutes), and press the M key again to exit
5. Automatically shut down when overloaded, press the M key to enter standby, and then press the M key to restart.
Notice
• It is dangerous to turn the stirring head, pay attention to the body, clothing and hair
• Prevent the stirring liquid from splashing out
• After the timing time is set, it is saved in the machine, and it is timed every time it is turned on. If you do not need timing, please adjust the time to "0".
• Stirrer automatically shuts down when overloaded, you need to press the M key to restart
