SILE INTRUMENT D2004W powerbasic stirrer DC brushless motor LED display

Name: SILE INTRUMENT D2004W powerbasic stirrer DC brushless motor LED display
Brand: SILE INTRUMENT
SKU: NB013440
Price: 243.0 USD
Availability: InStock

$ 243.00Ex works

DC brushless motor is used to achieve spark-free operation, Max. Torque 0.3Nm, supports a wide range of speed regulation from 50 to 1600rpm, and the stirringRod hole is designed to open up and down for easy operation. The maximum processing viscosity is 10000mPa · s.

Model

D2004W

Get Quote

Category : Laboratory Mixer

Brand : SILE INTRUMENT

SKU : NB013440

Service :The delivery and service By NBCLab.Com

Overview

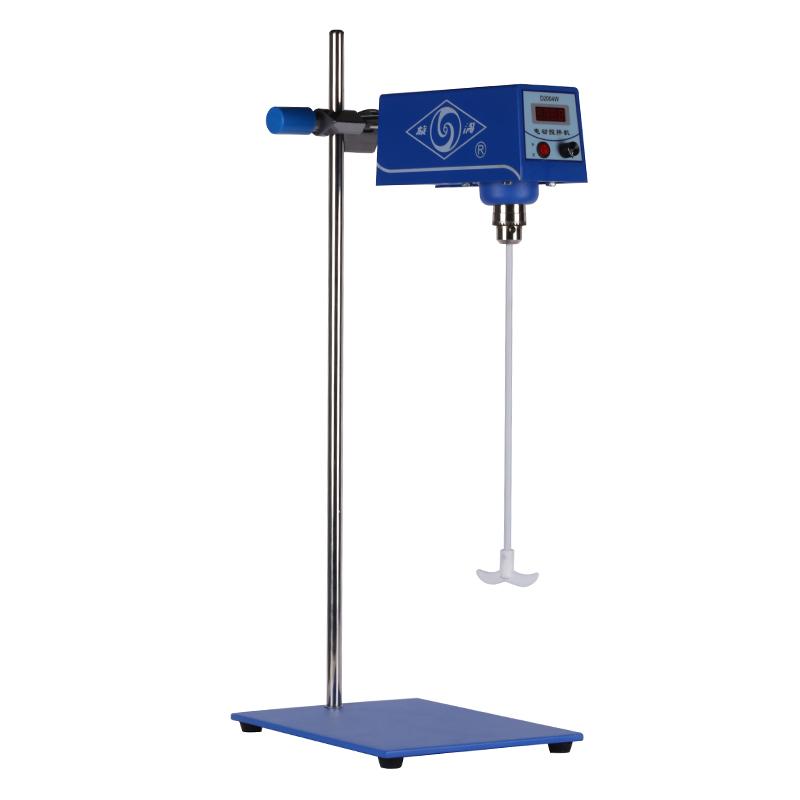

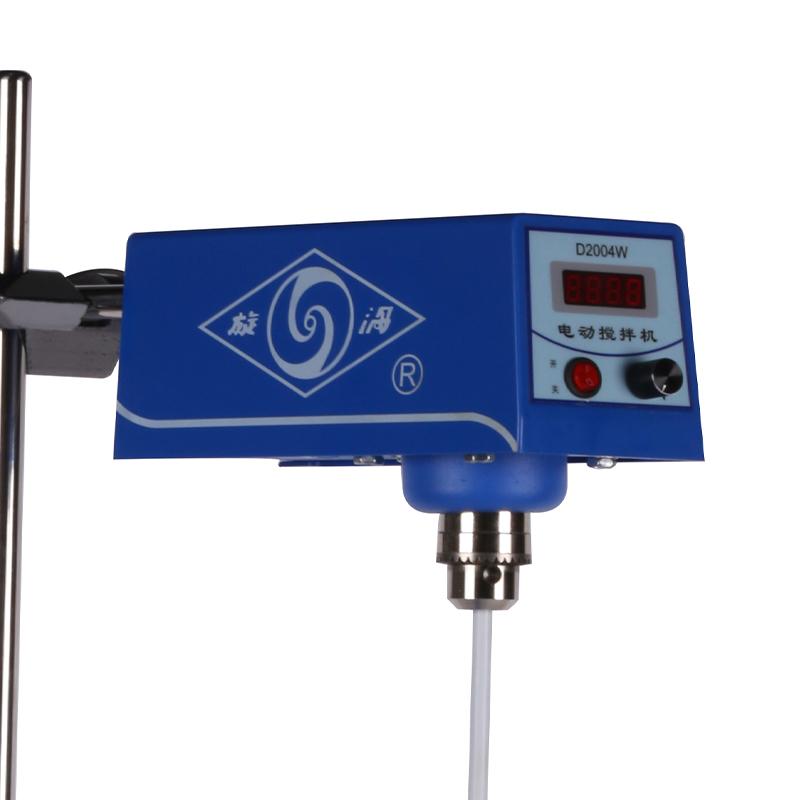

The powerbasic stirrer model is D2004W, produced by SILE INTRUMENT brand. Its stirringrod hole is opened up and down, which is convenient to use. Driven by a DC three-phase brushless motor, it has the characteristics of no spark, large force distance, high efficiency and good speed regulation. Rotation speed is displayed by LCD screen.

Features

1. The stirringrod hole is opened up and down, which is convenient to use 2. Driven by DC three-phase brushless motor 3. No sparks, large force distance, high efficiency 4. Good speed regulation 5. Rotation speed is displayed by LCD screen

Principle

The powerbasic stirrer drives the stirring head swirl/spin through a DC three-phase brushless motor, and the user adjusts the speed through the swirl/spin knob to realize stirring operations at different Rotation speeds.

Steps

1. Plug in the power supply and turn on the power switch. 2. swirl/spin knob to adjust speed

Notice

• It is dangerous to rotate the stirring head, so pay attention to your body, clothing and hair. • Prevent the stirring liquid from splashing out

Processing capacity
10L
Speed Range
50~1600rpm
Stick Size
Ф16*720mm
Dimension
320*220*770mm
Machine weight
10kg
Power supply Voltage
220V±15%
Max. Torque
0.3N·M
Motor Power
40W
Rotary collet clamping Range
≤Φ10mm
maximum viscosity
10000mPa·s
Rotation speed display
LED

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
