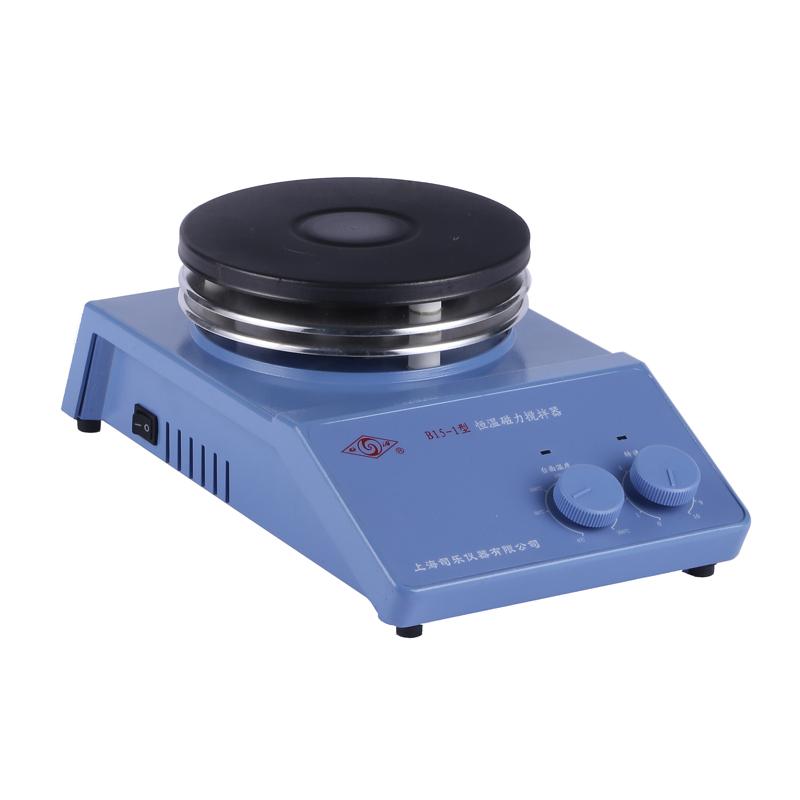

SILE INTRUMENT B15-1 Magnetic Stirrer thermostatic low speed 50 rpm start

Name: SILE INTRUMENT B15-1 Magnetic Stirrer thermostatic low speed 50 rpm start
Brand: SILE INTRUMENT
SKU: NB013444
Price: 256.0 USD
Availability: InStock

$ 256.00Ex works

Adopt DC three-phase motor constant speed control, low speed can start operation at 50 rpm, Max. stirring Capacity 10L, temperature control accuracy +/- 1 ℃, working disc size Φ 170mm, support continuous working mode.

Model

B15-1

Get Quote

Category : Magnetic Stirrer

Brand : SILE INTRUMENT

SKU : NB013444

Service :The delivery and service By NBCLab.Com

Overview

The thermostatic Magnetic Stirrer adopts DC three-phase motor constant speed control, and the stirring performance is better, especially at low speed, it can start running at 50 rpm.

Features

1. Adopt DC three-phase motor constant speed control, better mixing performance 2. Low speed can start operation at 50 rpm 3. Max. Capacity of stirring up to 10L 4. stirring speed range 0~ 1800rpm 5. Heating power 800W 6. Temperature control accuracy +/- 1 ℃ 7. Motor torque 80mN · M 8. Continuous working mode

Principle

The Magnetic Stirrer is driven by DC three-phase motor, and the stirrer in the container is swirled/spun by magnetic coupling principle to realize the stirring and mixing of the solution.

Steps

1. Place the container containing the solution in the center of the workbench 2. Put an appropriate stirrer in the container (cylindrical stirrer for flat-bottomed container, spinning chute stirrer for spherical container) 3. Turn it on and run, the switch is on the left side of the fuselage 4. Adjust the speed knob, the stirring Rotation speed should be gradually accelerated from slow to fast 5. If the stirrer is not in the center of the container, you can turn on the Stirrer first to make it idle and then shut down, and the stirrer will automatically suck into the center.

Notice

• Containers must not be made of iron or magnetic materials • The bottom thickness of the container should not be greater than 10mm and should be smooth • Accelerate too fast and it is easy for the stirrer to escape • The stirrer needs to be sucked into the center

Max. stirring Capacity
10L
Speed Range
0~1800r/min
Heating power
800W
Temperature Range
Room temperature~ 250℃
Temperature control accuracy
±1℃
Working disk Size
Φ 170mm black plated stainless steel
Dimension
330*190*125mm
Machine weight
3.4kg
Power supply Voltage
Ac220V±10%50Hz
Operating Mode
continuous
Motor torque
80mN·M
Temperature Range
0~360℃
Sensor indexing number
PT100
Countertop safety temperature
400℃
