Overview

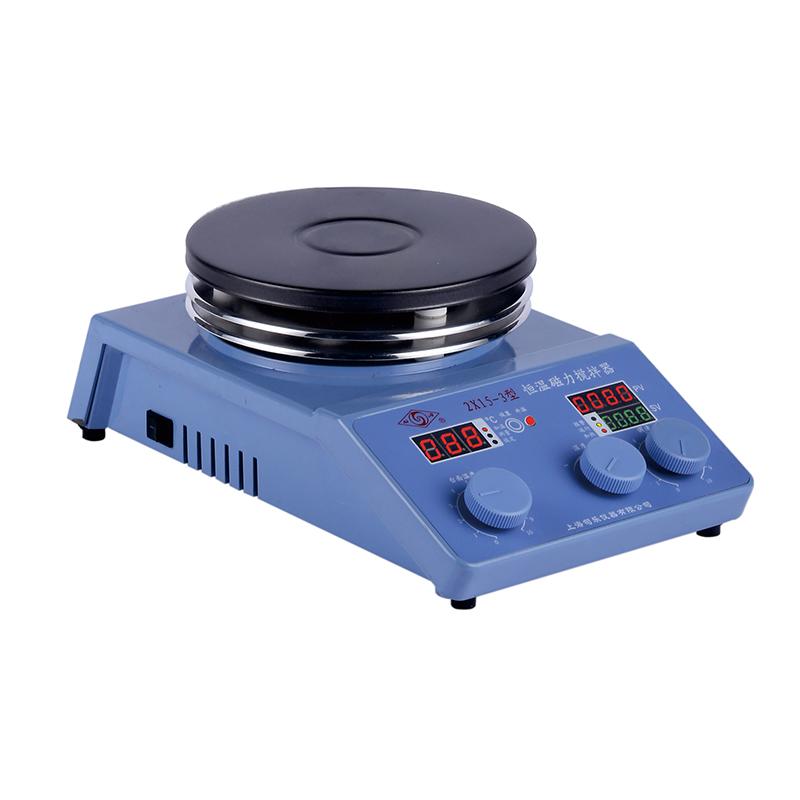

The product is a SILE INTRUMENT brand 2X15-3 model thermostatic Magnetic Stirrer, which adopts a dual temperature control system for countertop temperature and liquid temperature, and is independently controlled by thyristor and solid state relay to ensure that the heating process is safe and reliable, and will not go out of control.
Features
1. Dual temperature control system: table temperature and liquid temperature are independently controlled, using thyristor and solid state relay respectively to enhance safety.
2, Precise temperature control: Temperature control accuracy of +/- 1 ℃, Temperature range covering RT +~ 250 ℃.
3. Large capacity stirring: Max. stirring Capacity is 10L, and the stirring speed can be adjusted from 0 to 1700rpm.
4. Flexible Timer Range 0~ 9999 minutes, supports continuous working mode.
5. Safety protection: Safety protection temperature is 400 ° C to prevent overheating.
Principle
The thermostatic Magnetic Stirrer realizes the stirring function by magnetically driving the stirrer swirl/spin, the temperature control system is based on the dual detection of the table temperature and the liquid temperature, and the heating will only be started when neither of the two has reached the set value. The table and the liquid temperature are controlled separately by the thyristor and the solid state relay to ensure accuracy and safety.
Applications
Laboratory, chemical industry, biopharmaceutical, education and research
Steps
1. Stirring operation: connect the power supply, turn on the power switch, and adjust the speed control knob.
2. Installation of temperature sensor: Fix the temperature sensor, make the probe head contact the bottom plane of the bath pot, and insert the plug into the rear socket of the fuselage.
3. Temperature setting: a point press the temperature button, the display screen displays sp uplink; b swirl/spin temperature key adjusts the downlink number to the desired temperature; c point press the temperature button again, the uplink display the temperature in the container, and the downlink display the set temperature.
4. Countertop temperature setting: When the setting light is on, adjust the countertop temperature knob, generally set to about 2 times the liquid temperature value; press the button to switch to check the countertop temperature.
5. Turn off the heating: adjust the countertop temperature knob to 0.
Notice
• Ensure that the temperature sensor is installed correctly and the probe head contacts the bottom plane of the bath pot.
• The table temperature setting is generally recommended to be about 2 times the liquid temperature setting value, and adjusted according to the amount of liquid.
• If no heating is required, adjust the countertop temperature knob to 0 in time.
• Safety protection during operation The temperature limit is 400 ° C.
• Power supply voltage must meet Ac220V +/- 10% 50Hz requirements.
