Overview

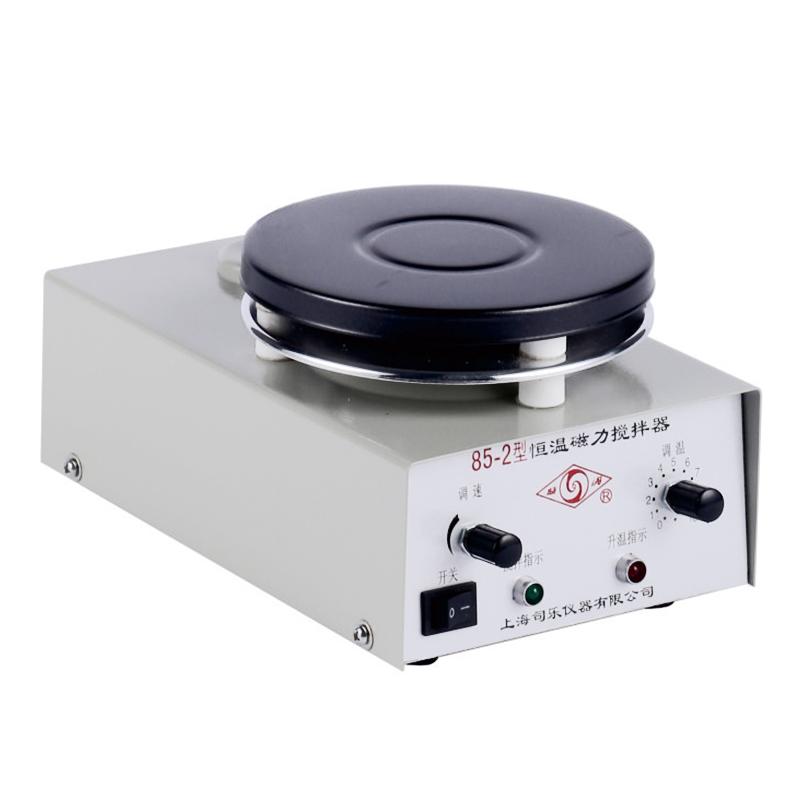

This machine is a high-power Magnetic Stirrer designed and produced by SILE INTRUMENT. It adopts a special DC brushless motor and has the characteristics of large torque, no electromagnetic interference, strong stirring force and automatic thermostatic.
Features
1. Special DC brushless motor, high torque
2. No electromagnetic interference
3. Strong stirring force
4. With automatic thermostatic function
5. Max. Capacity of stirring up to 10L
6. stirring speed range 100~ 2000rpm
7. Heating power 340W
8. Temperature control accuracy +/- 1 ℃
Principle
The stirring function is realized by swirling/spinning the stirrer in the container through magnetic coupling, and the heating and thermostatic control are realized by the heater heating and temperature control system.
Steps
1. Lay the instrument flat, place the container containing the solution in the center of the instrument disc, and put in the appropriate stirrer
2. Plug in the power supply, turn on the power switch, and adjust the stirring speed
3. If you need to heat up, insert the two-pin plug into the jack of the thermometer at the back of the machine to adjust the Heating power
4. If you need automatic thermostatic, you need to self-distribute the electric contact mercury-filledthermometer, and achieve automatic thermostatic after setting the temperature
5. Unplug the power supply after use, clean the appearance, and keep it after chilling down
Notice
• The power supply needs to be reliably grounded
• The solution in the container should not be overfilled to avoid overflow when stirring
• This machine cannot be used as a heater alone
• Electric contact mercury-filledthermometer Glass instrument, extremely fragile
• Need to gradually accelerate or decelerate when adjusting speed
• Containers cannot be made of ferromagnetic materials
• If the container is too heavy, it needs to be supported to avoid deformation of the instrument
