Overview

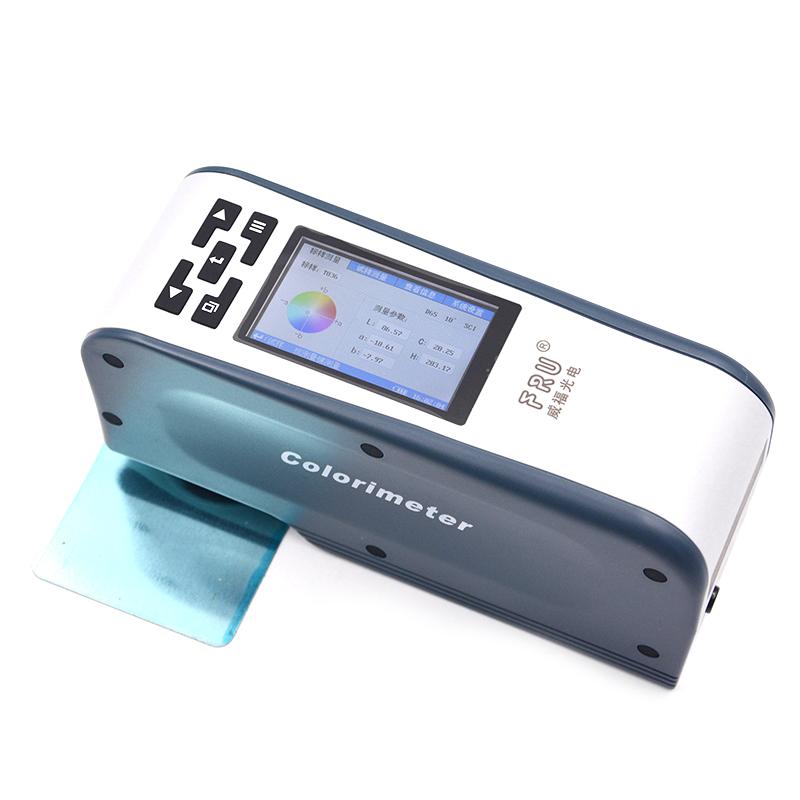

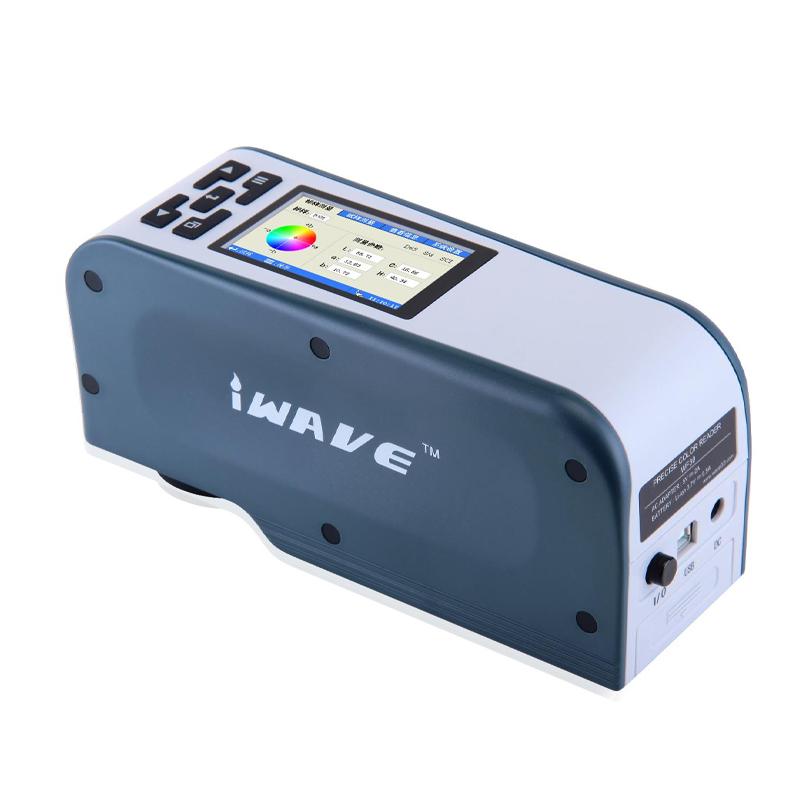

IWAVE WF30-8mm color difference meter is a general-purpose color difference meter of WF30 series, with a color measurement diameter of 8mm. This instrument is a Portable precision color difference meter produced by Shenzhen IWAVE. It has the characteristics of large LCD screen, simple operation, reliable and stable measurement, automatic boot calibrating, fast measurement, etc. It is suitable for paints, plastics, printing, rubber, toys, lame plating and other fields.
Features

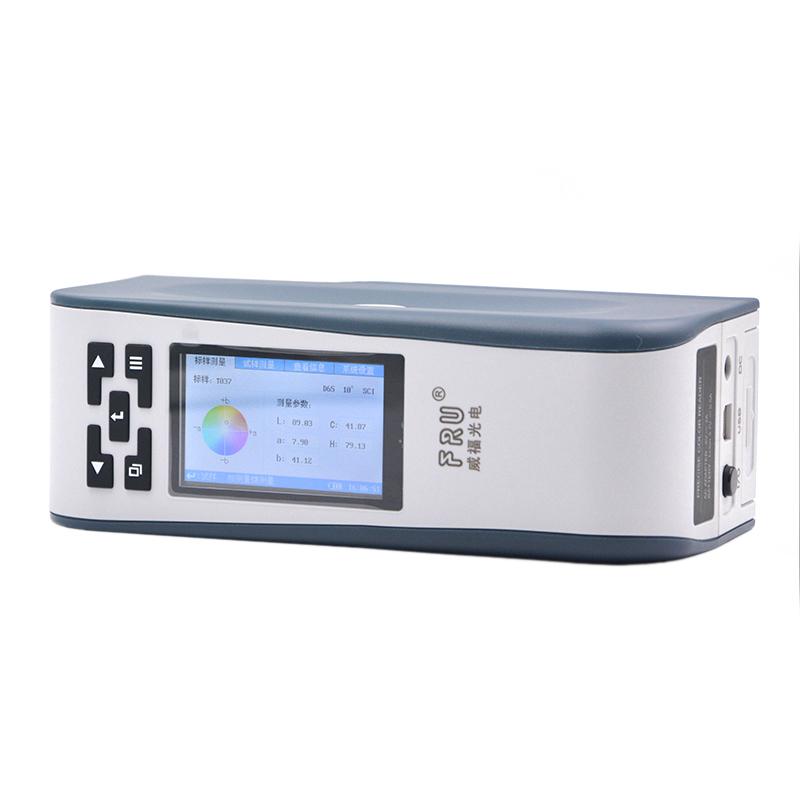

1. Large LCD display
2. Easy to operate
3. Reliable and stable measurement
4. Automatic boot calibrating
5. Fast measurement
6. Portable design
7. High measurement Repeatability (Delta E * ab < 0.05)
8. Long life Illuminant (5 years more than 1.60 million measurements)
9. Data storage (100 master standard data, 200 sample data under each master standard)
10. Measurement light source options (D50, D65, F11)
11. Support multiple display modes (CIELAB, CIELCH)
Principle
Using 8 °/d lighting mode, using LED blue light excitation as an illumination Illuminant, the reflected light signal is received by the photodiode array Sensor, and color measurement is performed according to the CIE 10 ° viewing angle standard.
Applications
Paints, plastics, printing, rubber, toys, lame plating
Standards
CIE 10 ° viewing angle standard
Steps
1. Automatic calibration
2. Measurement light source (D50, D65, F11)
3. Align with the measured object
4. Perform measurement (Measurement time 0.5s)
5. View measurement results (CIELAB, CIELCH display mode)
6. Save measurement data
Notice
• Operating Ambient Temperature: 0 ° C -40 ° C (32 ° F -104 ° F)
Operating environment relative humidity: less than 85% no condensation
• Storage Ambient Temperature: -20 ℃ -50 ℃
Storage environment relative humidity: less than 85% no condensation
• Make sure the battery is fully charged before use
• Regular cleaning of measurement caliber
• Avoid strong vibrations and collisions
