IWAVE WF30-16mm color difference Meter large diaMeter color difference Meter 16mm color measurement diaMeter

Name: IWAVE WF30-16mm color difference Meter large diaMeter color difference Meter 16mm color measurement diaMeter
Brand: IWAVE
SKU: NB001351
Price: 1427.0 USD
Availability: InStock

$ 1427.00Ex works

16Mm large diaMeter design, suitable for streak or large area pRoduct color measurement; Repeatability Delta E * ab is less than 0.05, Measurement time is only 0.5 seconds, to ensure stable light leakage.

Model

Get Quote

Category : Colorimeter

Brand : IWAVE

SKU : NB001351

Service :The delivery and service By NBCLab.Com

Overview

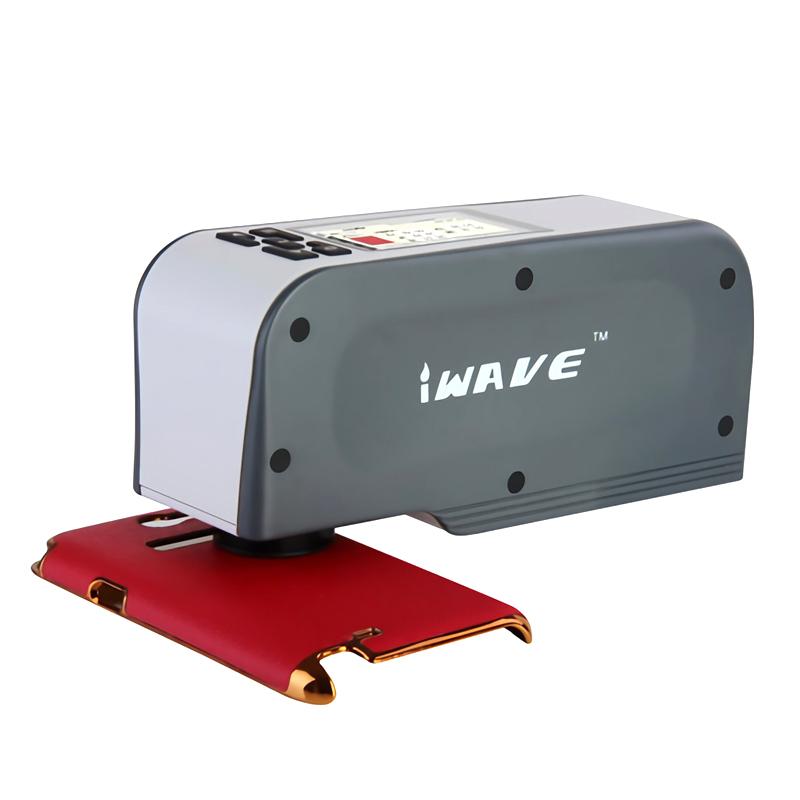

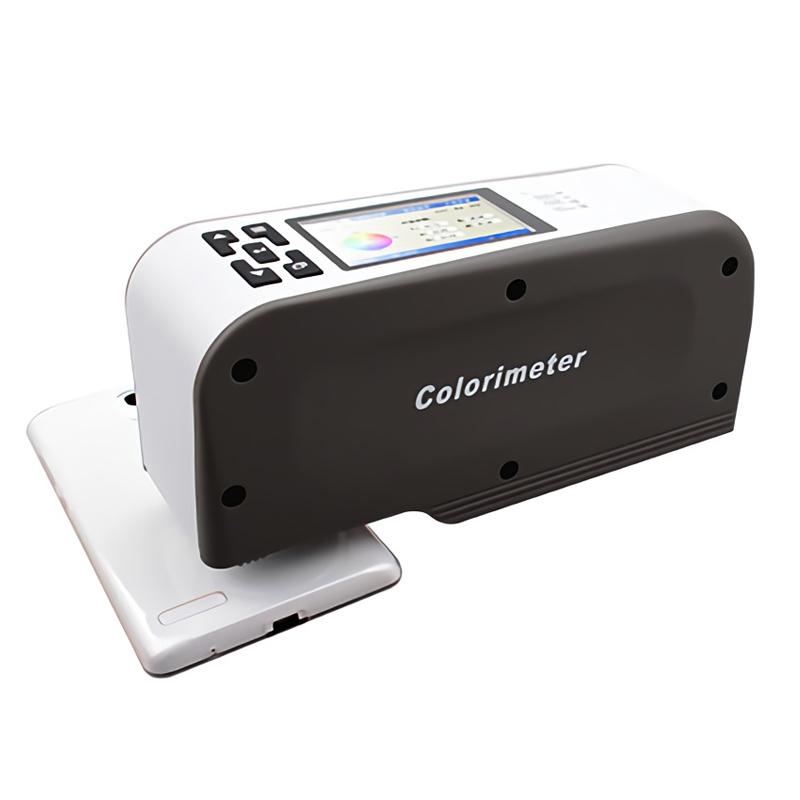

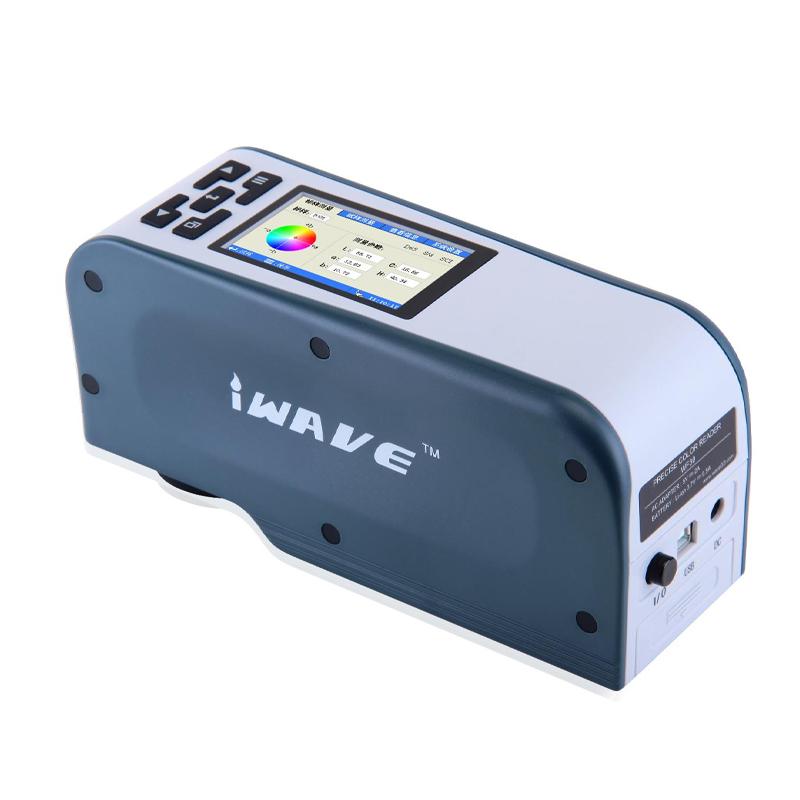

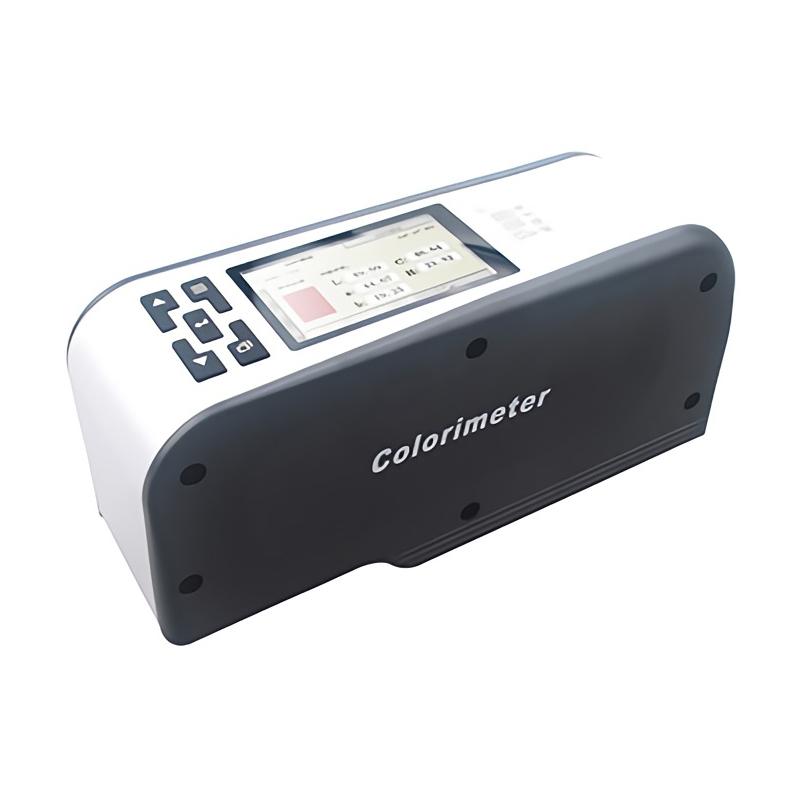

IWAVE WF30-16mm large diameter color difference meter is a color difference measuring instrument with a large measurement diameter in the WF30 series. It is specially used for color difference measurement of Spinning & weaving fabrics, leather and leather goods, and wood furniture. The color difference measurement diameter is 16mm. Due to its large diameter design, it is especially suitable for the measurement of striped fabrics, leather or wood products and large area color measurement products. It has the characteristics of professional practicality, High Accuracy and automatic correction. The horizontal body design ensures stable measurement and no light leakage, which improves the measurement accuracy.

Features

1.16Mm large diameter design, suitable for measurement of striped or large area products 2. High Accuracy measurement, Repeatability Delta E * ab < 0.05 3. Automatic correction function 4. horizontal body design, stable measurement and no light leakage 5. Measurement light source and Color difference formula 6. Data storage with 100 master standards and 200 sample data 7. Long life lithium battery, fully charged can be measured 5000 times 8. Multilingual Operating interface and Multiple Interfaces

Principle

The IWAVE WF30-16mm color difference meter adopts 8 °/d illumination mode and photodiode array Sensor, excites the illumination Illuminant through LED blue light, and performs measurement at the standard observation angle CIE 10 °. The instrument calculates the excellence value by measuring the reflected light on the surface of the object, supports SCI and SCE light-containing mode, and uses the Delta E * ab Color difference formula for color difference analysis. Measurement time is only 0.5 seconds.

Applications

Spinning & weaving fabric, leather goods, wood furniture

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Lighting method
CIE recommended method: 8/d
Sensor
photodiode array
Measurement Range
L:0~100
Measurement light source
D50、D65、F11(TL84)
Measurement time
0.5s
Measurement caliber
Φ16mm
Repeatability
Delta E < 0.05 (the average deviation of the whiteboard is measured 30 times)
Operating language
Simplified Chinese, English
Interface
USB 2.0 (USB-B Type), RS-232 (115200bps)
viewing angle
CIE 10°
Illuminant
LED blue excitation
Color difference formula
ΔE*ab
data storage
100 master standard data, 200 sample data under each master standard
Battery capacity
Lithium battery can be measured 5000 times after being fully charged
display mode
CIELAB、CIELCH
Operating environment
0 ° C -40 ° C (32 ° F -104 ° F); relative humidity below 85% No condensation
Storage environment
-20 ° C -50 ° C (-4 ° F -122 ° F); relative humidity below 85% No condensation
Dimension
199*68*90mm
weight
700g
Light-containing method
SCI SCE
Inter-instrument Agreement
ΔE<0.2
Lamp life
More than 1.60 million measurements in 5 years
display screen
TFT true color display 2.8inch @(16:9) resolution: 400x240
packing Size
400*240*340mm
Optional Accessories
Liquid test kits, powder test kits, micro printers

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
