Overview

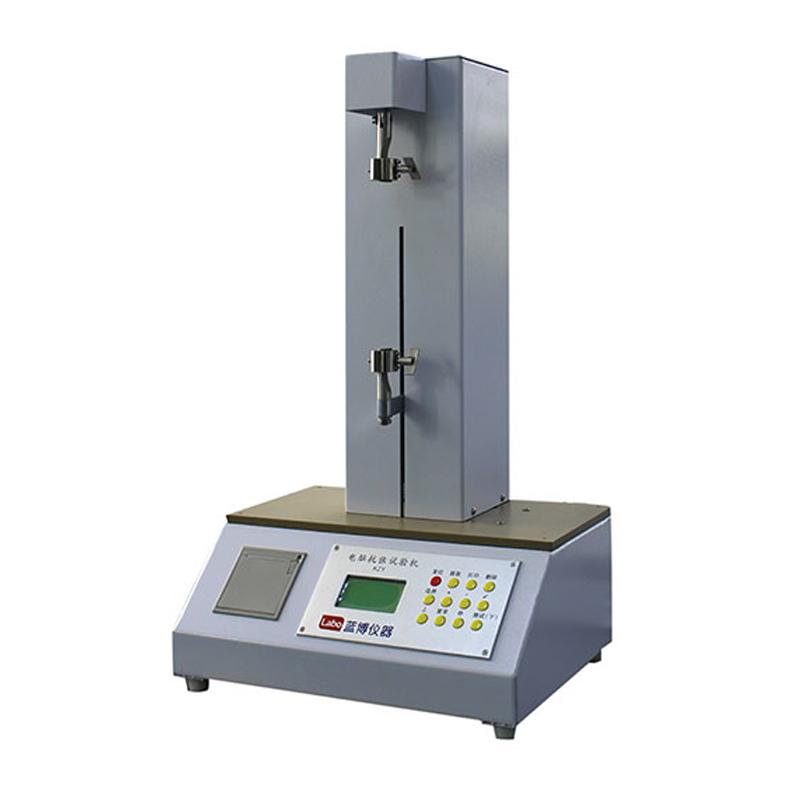

LB-KZY30 Sheet Tensile Strength Tester is a LABO brand product, used for the measurement of Tensile Strength performance indicators of paper and Cardboard, including Tension Resistance, Tensile Strength, Elongation, Break Length, Tensile Energy Absorption, Tensile Index, Tensile Energy Absorption Index. The instrument automatically calculates and prints the test results, and the test is sensitive, high accuracy, accurate and reliable. It adopts the international general vertical tensile Measuring method, which conforms to ergonomic design and has an intuitive user interface.
Features
High Accuracy Force Sensor, Factory Precision Control < 0.5%, better than ISO +/- 1%.
2. Using stepper motor, precision ball screw drive, reasonable design, precision processing, to ensure high repeatability and durability.
3. Programmable design supports later upgrades to ensure the professional level of the instrument.
4. LCD Chinese display, friendly man-machine interface, fully automatic testing, with data statistical processing and micro-printer output functions.
5. Test speed and clip distance can be preset, and the test is fast and effective.
6. The Force Sensor is located above and connected to the upper chuck, which is convenient for users or third parties to use the standard weight for Indication Error calibrating.
Principle
The instrument adopts the international universal Vertical Tensile Measuring method, drives the precision ball screw drive through the High Accuracy Force Sensor and stepper motor, applies the tensile force to the paper, Cardboard and other sheet materials, automatically measures and calculates the relevant performance indicators of Tensile Strength, and the results are output through the printer.
Applications
Toilet Paper, Tissue Paper, Low Basis Weight Paper
Standards
GB/T12914、GB/T453、GB/T22898、GB/T24328.3、GB/T24328.4、ISO1924-1,-2,-3、ISO12625-4,-5、TAPPI T494、T456、SCAN P38,P67、PAPTAC D34、DIN 53112/1、APPITA/AS 1301.448
Steps
1. Preset clip distance and Test speed.
2. Place the sample between the upper and lower chucks.
3. Start the test, the instrument automatically completes the tensile measurement.
4. The instrument automatically calculates and displays the results.
5. Use a micro printer to output test data.
Notice
• power requirements AC220V +/- 22V 50Hz 0.5A, should be reliably grounded.
• The adjustable range of the upper and lower chuck spacing is 10 to 200mm, and the commonly used spacing includes 50mm, 90mm, 100mm, 180mm, and 200mm.
• The force value range is 0.3~ 30N, and the resolution is 0.1N.
• Measurement range 0~ 215mm, Precision +/- 0.1mm.
• Stretching speed range 1~ 220mm/min, error +/- 1%.
• Fixture positioning error +/- 0.5mm or +/- 0.1mm.
• Return speed is 450mm/min.
• The service life of Chinese measurement and control LCD screen is about 50,000 hours.
• Net weight 31kg, Dimension 400 * 230 * 700mm.
