Overview

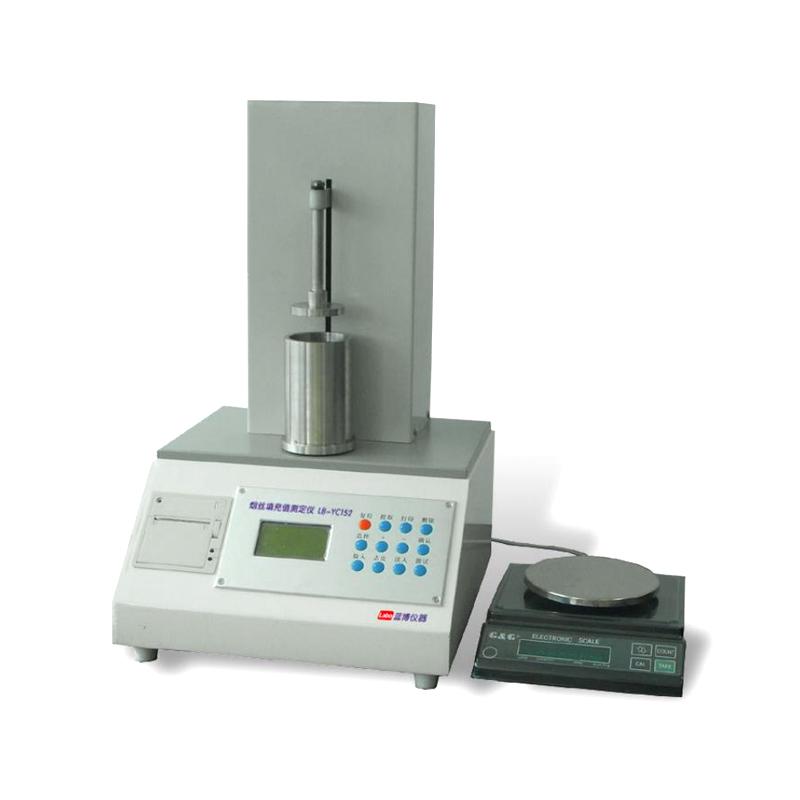

The LABO LB-YC152 cut tobacco filling value tester is used to detect the filling ability of cigarette shreds (including leaf shreds, expanded leaf shreds, thin sheet shreds, etc.) and expanded infarcts. The performance indicators are at the international professional level and can replace similar imported products.
Features
1. High Accuracy Length Sensor, resolution 0.001mm, better than standard requirements
2. Precision ball screw drive, stable and durable performance
3. measurement head pressure, speed, time adjustable, applicability
4. LCD Chinese display, automatic testing, data statistical processing and printout
5. Connect Electronic Balance, sample weight is not limited to 10g
6. Built-in calibrating program, with standard length measuring block, easy to calibrate
Principle
The High Accuracy Length Sensor measures the compression height of cut tobacco under specific pressure, and automatically calculates the filling value combined with the weight of the sample to achieve accurate determination of the filling capacity of cut tobacco.
Applications
Cigarette filament filling ability test, expansion filament filling ability test
Standards
Length Precision +/- 0.01mm, Repeatability < 0.03mm
Steps
1. Connect Electronic Balance and power on
2. Measurement parameters (pressure weight, speed, time)
3. Place samples
Step 4 Start automated testing
5. View and print test results
Notice
• Power supply voltage should be AC220V +/- 22V 50Hz and reliably grounded
• Instrument should be calibrated before use
• Pay attention to the allowable error range of pressure weight and time measurement
• Keep the inner diameter of the barrel to 60 +/- 0.1mm specifications
• Regularly check sensor accuracy and Repeatability
