Overview

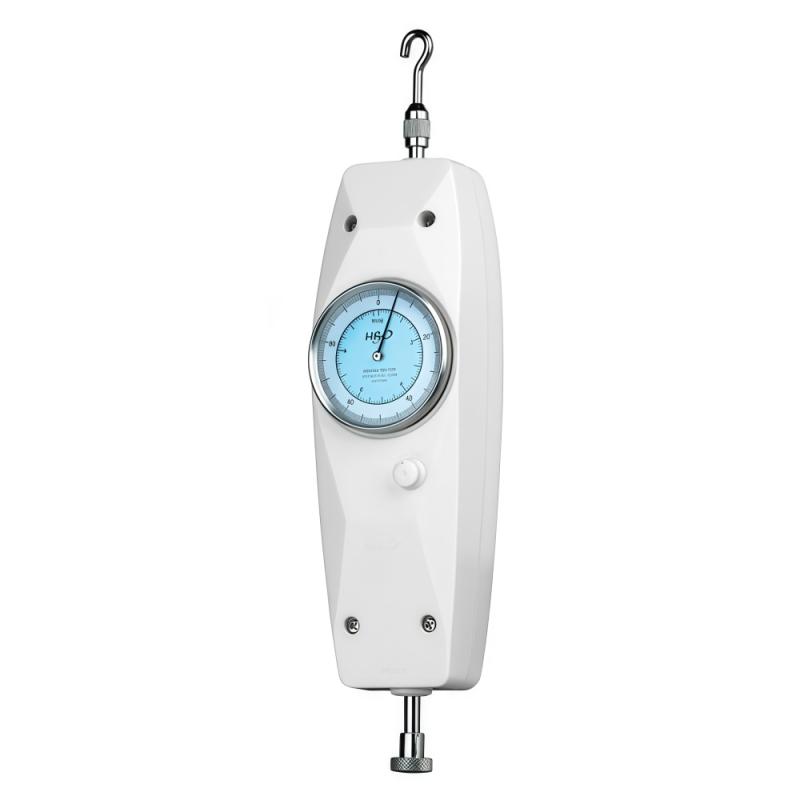

HBO NK-10 Dial Force Gauge is a small Portable Force Gauge with a white housing design for high accuracy, simple operation and easy portability. The product can display both Newton and kilogram units at the same time, and is equipped with a switch button to realize peak load measurement and continuous load value measurement switching. The maximum Measured value is 10kg.
Features
1. Appearance design adopts white hard plastic shell, Handheld design, small size, simple structure and easy operation
2. Dial indication, convenient, accurate and high accuracy
3. With dual display of two units (N, kgf), no unit conversion is required
4. Peak hold and load real-time value indication can be switched freely, making it easy to use

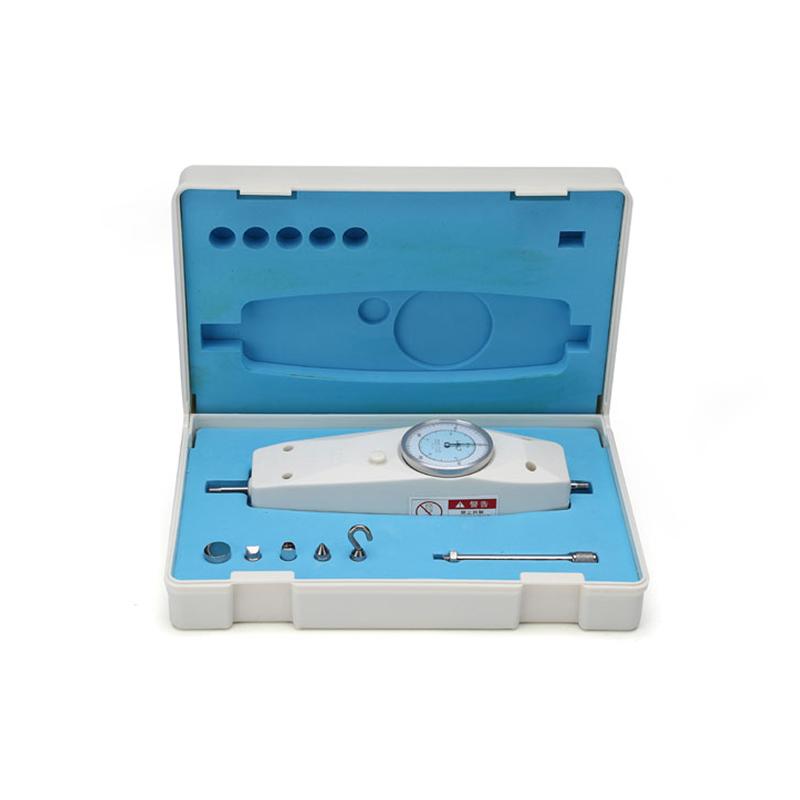

5. Reliable and beautiful Encasement, easy to transport, store and maintain
Principle

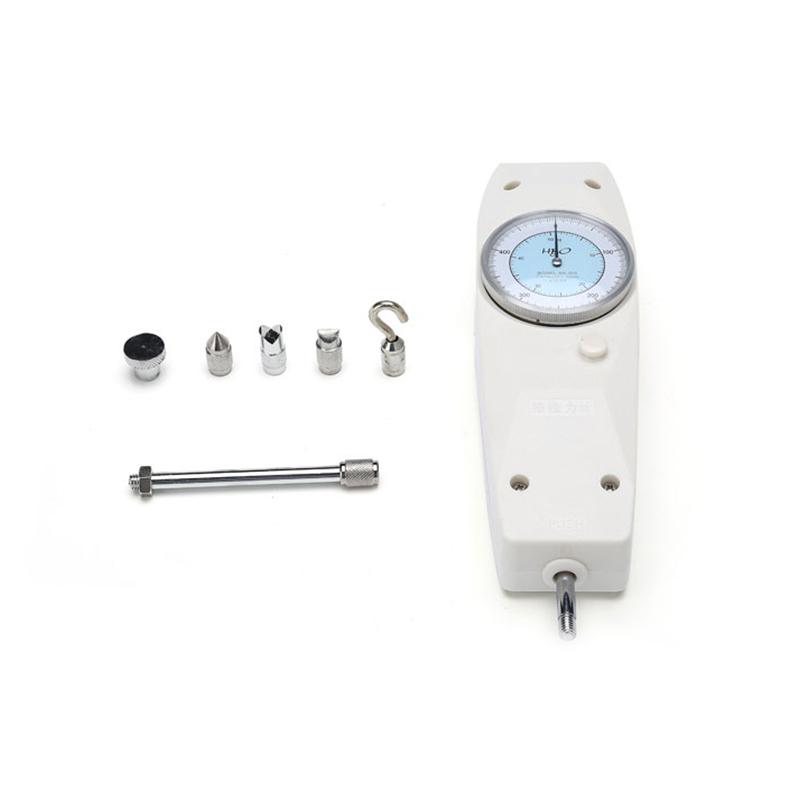

The HBO NK-10 Dial Force Gauge applies force through the push-pull rod, and the force acts on the internal mechanical structure to drive the pointer to indicate the Measured value on the dial. Users can switch between peak hold mode or continuous load value Measurement mode by switching the knob to achieve different measurement requirements.
Steps
1. Select Measurement mode (peak hold or continuous load value) by switching knob
2. Apply force to the push-pull rod
3. Read the Measured value indicated by the pointer on the dial
4. Use the dial adjustment ring to make necessary adjustments
Notice
• The working environment should be free of seismic source and corrosion medium
• Operating temperature 20 ℃ +/- 10 ℃
• Transportation temperature is -27 ℃~ 70 ℃
• relative humidity range of 15%~ 80% RH
