Overview

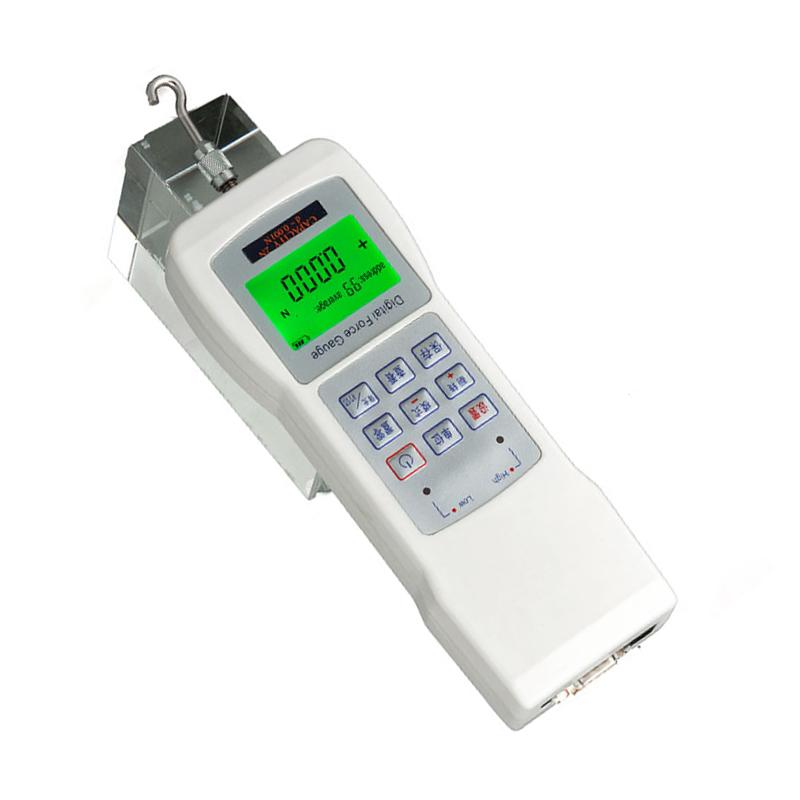

HBO HG-50 Force Gauge is a digital Force Gauge with a maximum load value of 50N and a built-in Sensor design, which is convenient to carry and versatile. It is suitable for push-pull load testing, plug-in force testing and failure testing of various products. It can be combined with different machines or fixtures to form a small experimental machine for convenient measurement and powerful functions.
Features
1. High Accuracy High resolution, Stability, sampling speed 120HZ
2. Special Instrument Toolbox, with EVA Shockproof Encasement, easy to transport, store and carry

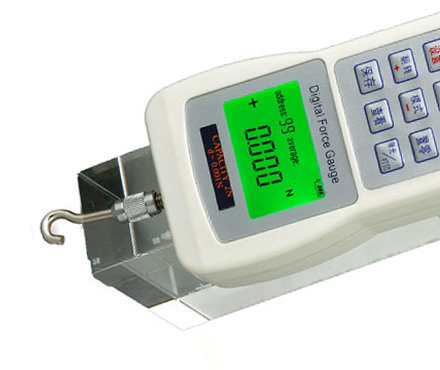

3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
8. Store 99 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
9. Peak hold time can be set (0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (0~ 99 minutes)
12. Limit protection: range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the electric testing device, realize the functions of stop, reset, preset force value stop, fatigue test and so on
15. Host computer software: Chinese WINDOWS interface
16. Linear dispersion display of test results: real-time force value-time, peak force value-number, first peak-number
17. Qualification Judgment: According to the preset Standard value, the qualified and batch inspection pass rate is automatically judged
18. Automatic storage: Test data and Linear dispersion are automatically stored to the computer, with unlimited storage
19. Test data can be queried and exported in excel format
20. Test reports can be prepared and printed according to user requirements
Principle
The HG-50 Force Gauge displays the load value directly through the LCD screen through the built-in Sensor measurement. Adopts ADC conversion technology, the conversion speed is 15Hz~ 480Hz, supports a variety of test modes and unit conversions, and combines upper and lower limit comparison and alarm functions to achieve accurate push-pull force testing.
Applications
Push-pull load test, insertion force test, failure test
Standards
Precision 0.5, Indication Error ≤ +/- 0.5%
Steps

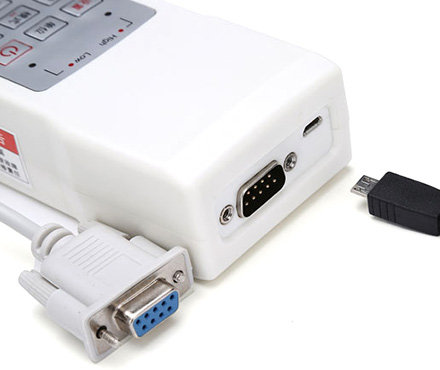

1. Connecting contacts Connecting rod and Communication interface
2. Set test mode, unit, upper and lower limits and other parameters as needed
3. Perform a push-pull test and observe the display reading
4. Use keystroke operations, such as storing data or switching modes
5. After the test is completed, the data can be exported or a report can be generated through the host computer software
Notice
* Charge in time when the battery is low, and automatically shut down when the battery is empty
* Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
* relative humidity should be kept at 15%~ 80% RH
* The surrounding environment should be free of vibration and corrosion medium
* Use dedicated charger, AC input 220V/50HZ, DC output 5V/1A
* Pay attention to the limit protection function to avoid over-range use
