Overview

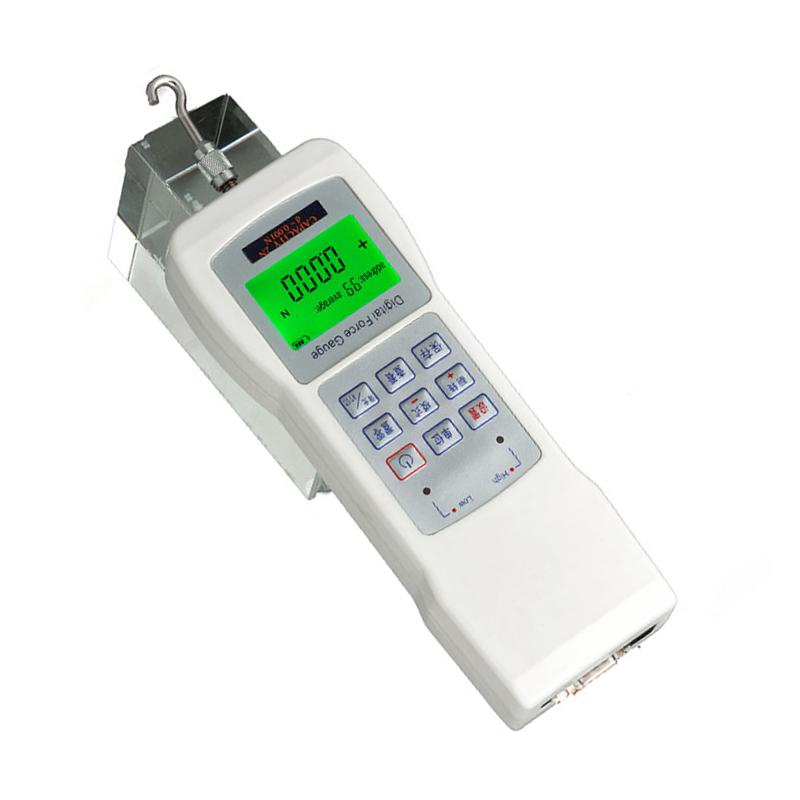

The HG-100 Portable Force Gauge is a general-purpose Portable push-pull load test instrument produced by HBO. It belongs to the HG series digital display Force Gauge, with a maximum measurement load of 100N. The product has the function of Data storage, which can store 99 sets of test data. Measurement accuracy is high and Stability is good. The sampling speed reaches 120Hz, and various units such as N, kgf, and lbf are automatically exchanged without manual conversion. In addition, the Force Gauge can be connected to a PC to transmit and store test data for management.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120Hz

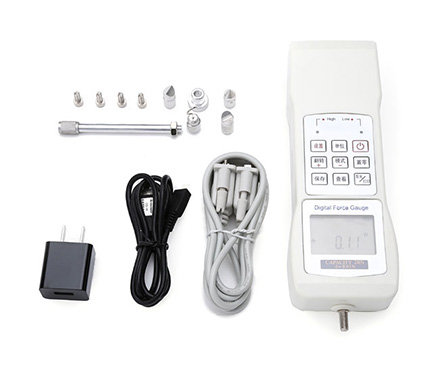

2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry

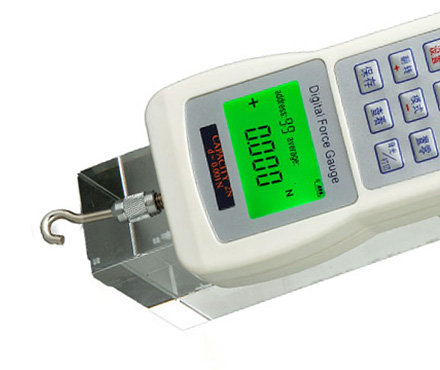

3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The HG-100 Portable Force Gauge detects push-pull loads through built-in or external Sensor structures, uses ADC conversion technology to convert physical signals into digital signals, and the sampling speed ranges from 15Hz to 480Hz. The instrument displays measurement results in real time through a segment LCD display, supports multiple test modes and automatic unit conversion, and can perform data management and analysis through the upper computer software.
Applications
Push-pull load test, insertion force test, failure test of various products
Standards
Level 0.5 Precision, Indication Error ≤ +/- 0.5%
Steps
1. Connect the power supply or use the built-in lithium battery for power supply.
2. Select the test mode as required (real-time force tracking mode, peak holding mode, or first peak mode).
3. Set parameters such as unit, upper and lower limit comparison value, peak retention time, etc
4. Perform a push-pull force test, and the instrument automatically displays and stores data
5. Data can be transferred through PC connection, Data analysis and management using PC software
6. After the test is completed, you can export the data in excel format or generate a test report
Notice
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• relative humidity should be kept at 15%~ 80% RH
• The working environment should be free of vibration and corrosion medium
• Make sure the battery is fully charged before use and charge it with a matching charger
• Pay attention to range limit protection to avoid overload use
• Regularly calibrate instruments to ensure Measurement accuracy
