Overview

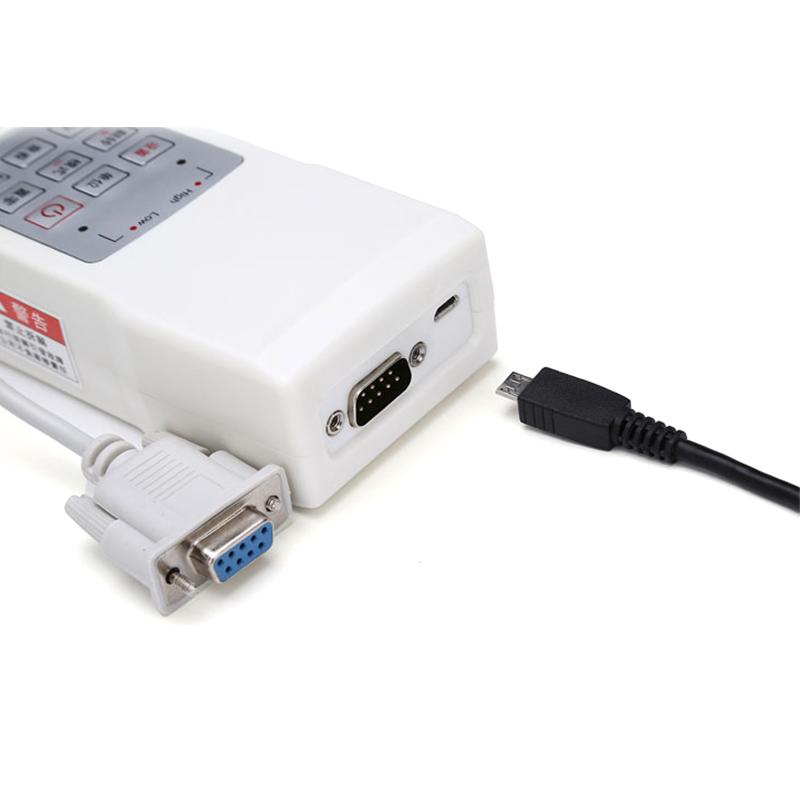

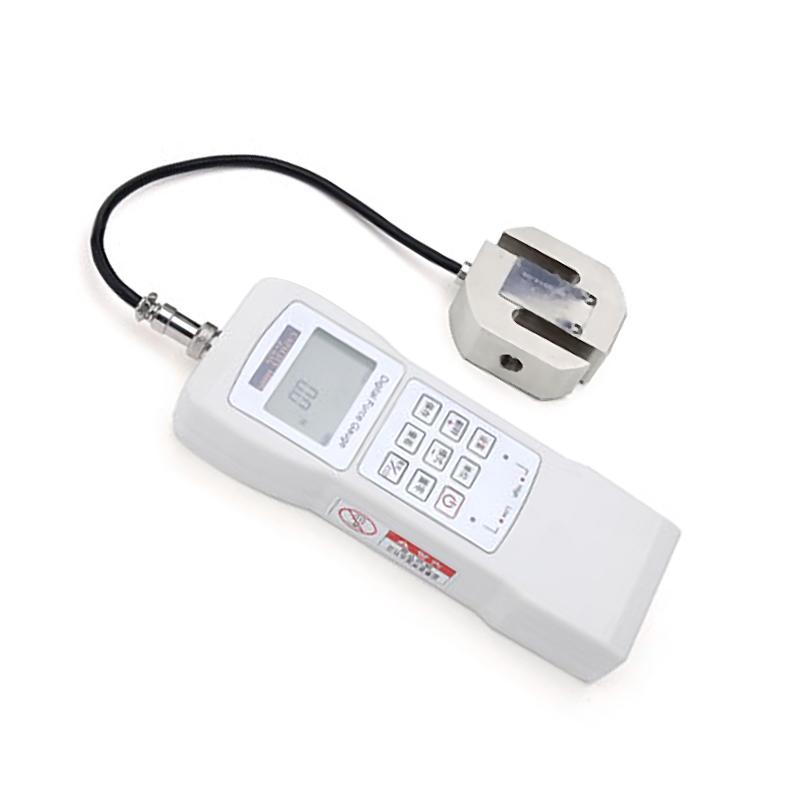

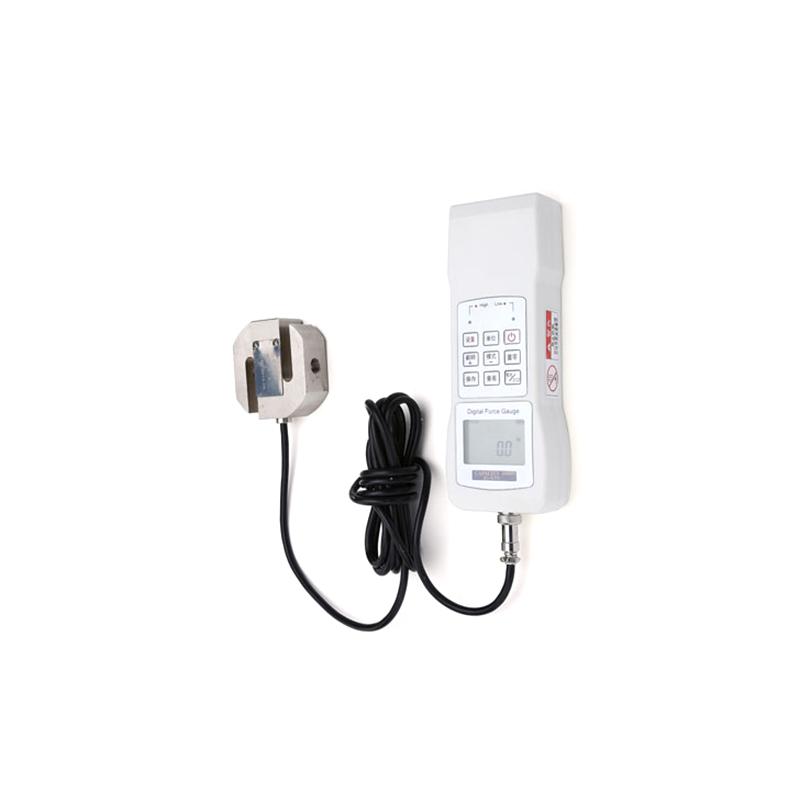

The HG-5000 Precision Force Gauge is the HG series digital display Force Gauge produced by HBO. It uses a segmented LCD screen to display measurement data and has a green backlight function. The product is an external Sensor type with a serial output interface, which can be connected to print test data or host computer operation management data. The maximum Measured value is 5000N.
Features
1. High Accuracy High resolution, Stability, sampling speed 120HZ

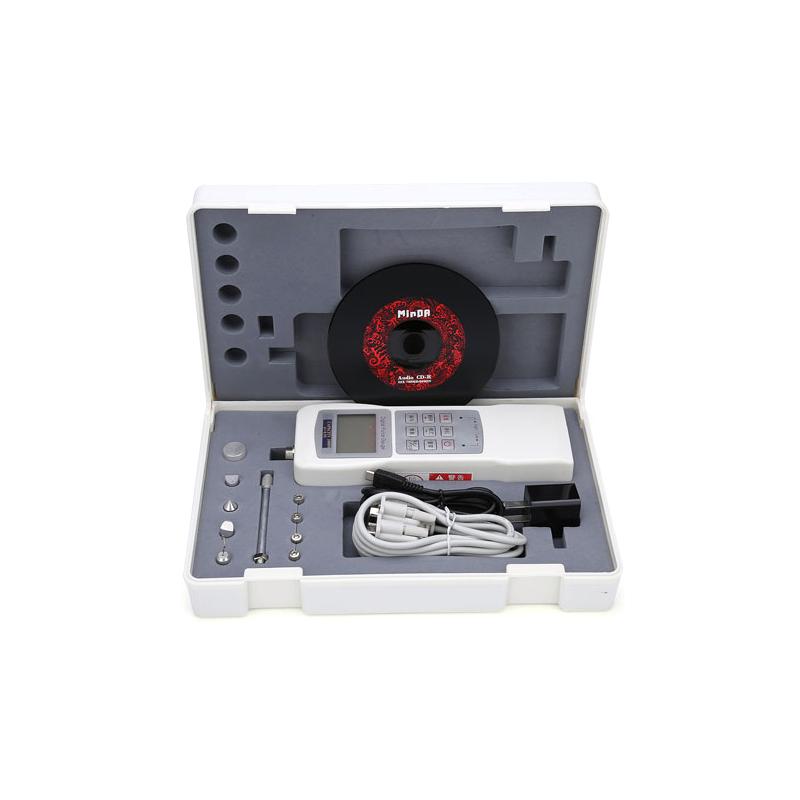

2. Special Instrument Toolbox with EVA Shockproof Encasement, easy to transport, store and carry
3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
8. Store 99 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
9. Peak hold time can be set (0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (0~ 99 minutes)
12. Limit protection: range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging Extends Battery life
14. Cooperate with the electric testing device to realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
15. Host computer software: Chinese WINDOWS interface
16. Linear dispersion display of test results: real-time force value-time, peak force value-number, first peak-number
17. Qualification Judgment: According to the preset Standard value, the qualified and batch inspection pass rate is automatically judged
18. Automatic storage: Test data and Linear dispersion are automatically stored to the computer, with unlimited storage
19. Test data can be queried and exported in excel format
20. Test reports can be prepared and printed in user format
Principle
HG-5000 Precision Force Gauge collects push-pull force data through an external Sensor, which is converted by ADC and displayed on a segment LCD screen. It supports a variety of test modes and unit conversions, and connects printing equipment or host computers through serial output interfaces for data management and analysis.
Applications
Industrial Testing, quality control, Materials Testing, Product Research & Development
Standards
Precision 0.5, Indication Error ≤ +/- 0.5%
Steps
1. Connect Sensor and Power
2. Power on and set parameters such as unit and test mode
3. Perform a push-pull force test and observe the display data
4. Use the upper and lower limit comparison function to determine the eligibility of the data
5. Store test data or connect to the host computer to export the report
6. Shut down or set automatic shutdown after the test is completed
Notice
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• relative humidity should be kept at 15%~ 80% RH
• The surrounding environment should be free of vibration and corrosion medium
• Charge with a special charger, input AC 220V/50HZ, output DC 5V/1A
• Avoid exceeding the maximum Measured value of 5000N to prevent damage to the equipment
• Regularly check whether the limit protection function is normal
