Overview

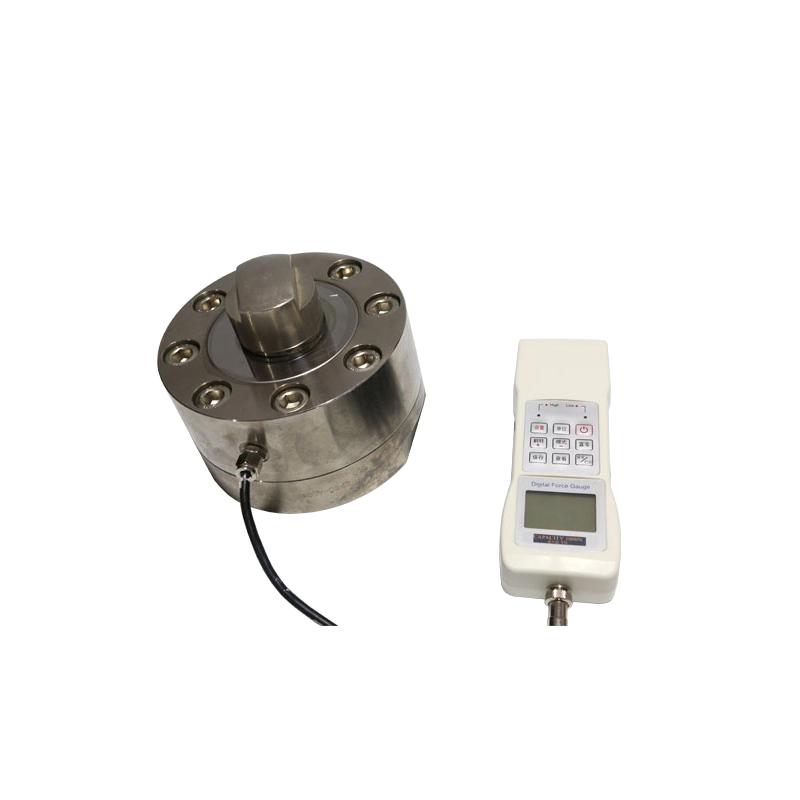

The HBO HG-1000K is a wheel amplitude dynamometer with an external Sensor design and a green backlit segment LCD display. The instrument is powered by an intelligent charger and supports serial connection to a printer or PC for data printing, management and analysis. The dynamometer is simple in structure and easy to operate. The maximum tensile load value is 1000KN and the load Graduation is 0.5KN.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ
2. Special Instrument Toolbox with EVA Shockproof Encasement, easy to transport, store and carry
3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
8. Store 99 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
9. Peak hold time can be set (0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (0~ 99 minutes)
12. With range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging and Extend Battery life
14. With the electric testing device table, realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: Automatically judge the qualification rate according to the preset Standard value
18. Automatic storage of test data and Linear dispersion to computer, unlimited storage
19. Test data can be queried and exported in excel format
20. Test reports can be prepared and printed in user format
Principle
The HG-1000K wheel amplitude dynamometer detects the push-pull load through an external Sensor and converts the signal into a digital display. The instrument adopts ADC conversion technology, the sampling speed can be adjusted from 15Hz to 480Hz, and the intelligent processing unit is combined to realize data collection, storage and analysis. Support a variety of test modes and unit conversions, communicate with external devices through serial ports, and complete data management and report generation.
Applications
Auto Parts, Fire Equipment, Chemicals, Machinery, Construction, Electronics
Steps
1. Connect External Sensor and Power Supply
2. Turn on the instrument and set parameters such as unit and test mode
3. Conduct push-pull load testing or failure testing
4. Monitor force values in real time or use peak hold function
5. Store test data and export to PC
6. Use PC software to analyze data and generate reports
Notice
• Operating temperature in the range of 0~ 40 ℃
• Avoid use in environments with vibrating or corrosive media
• Storage temperature should be kept at -20~ 70 ° C
• relative humidity control at 15%~ 80% RH
• Charge with original charger to extend Battery life
• Regularly check whether the limit protection function is normal
• Special Toolbox for Shipping and Storage Shockproof Encasement
