Overview

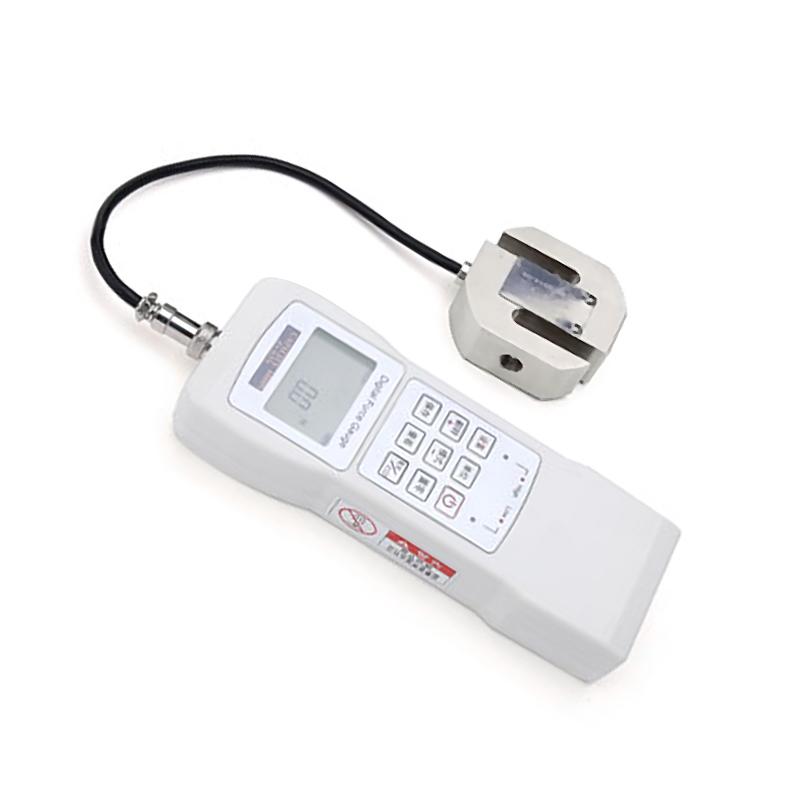

HBO HG-50K Digital Display Force Gauge is an external Sensor type conventional digital display Force Gauge with small size, light mass, easy portability and high Measurement accuracy. The product has a maximum load value of 50KN, which can realize peak hold and peak automatic release functions by setting the time, automatic shutdown function without operation, and can freely set the gravity acceleration value for more accurate control operation.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ

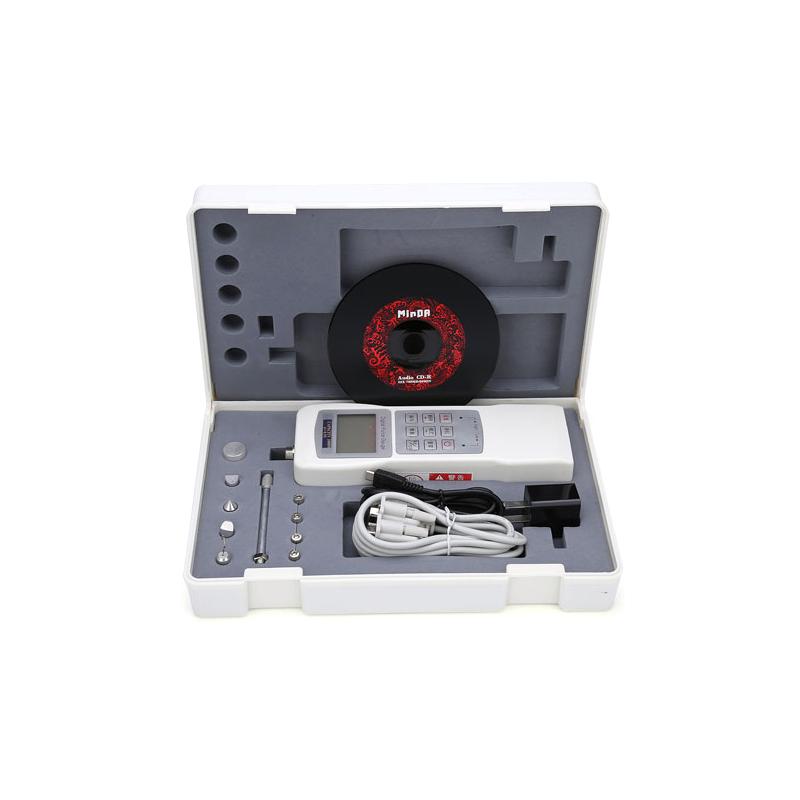

2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
HG-50K Digital Display Force Gauge detects the force value through an external Sensor, converts the analog signal into a digital signal and displays it on the segment LCD. It supports a variety of test modes, including real-time force value tracking, peak holding and first peak mode, and performs data qualification judgment by setting upper and lower limit comparison values. Accurate measurement and control are achieved with sound alarm and level signal output.
Applications
Industrial Testing, quality control, Materials Testing, Product Research & Development
Standards
Precision 0.5, Indication Error ≤ +/- 0.5%
Steps
1. Connect the Power Adapter or use the built-in lithium battery for power supply
2. Set the test mode, unit, upper and lower limit values, peak holding time, gravitational acceleration value and other parameters by pressing the button
3. Connect the contact rod for force value test
4. Observe the display window reading and judge the upper and lower limit status according to the indicator lights
5. Store test data, export data or generate reports via Communication interface
6. Turn off the power or set the automatic shutdown after use
Notice
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• relative humidity should be within the range of 15%~ 80% RH
• The surrounding environment should be free of vibration and corrosion medium
• Avoid using more than the maximum load value of 50KN
• Regularly charge to extend Battery life with original charger (AC Input: 220V/50HZ, DC Output: 5V/1A)
• Pay attention to the status of the upper and lower limit indicators, the red light indicates that it is out of range
• Special Toolbox and EVA Shockproof Encasement for Transportation and Storage
