Overview

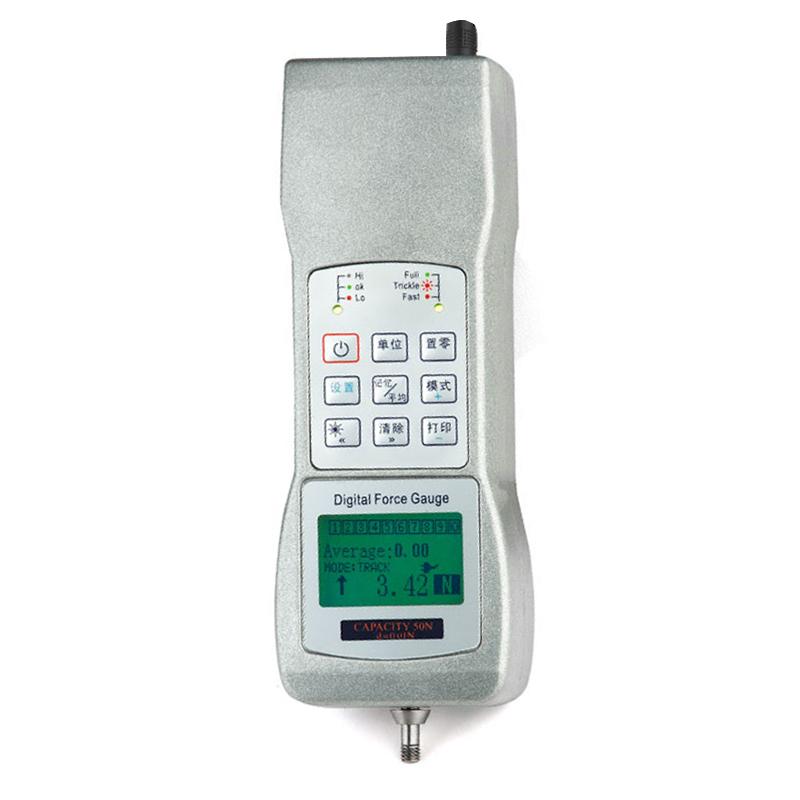

HBO HF-2 Digital Display Force Gauge is a universal Portable tension pressure measuring instrument of HF series. It adopts electronic Sensor technology and the built-in Sensor corresponds to the measurement load value of 2N. The product is small in size and convenient to carry. It has the advantages of high accuracy, easy operation, high Sensitivity and reliable data. It is suitable for tensile pressure load test, insertion force test and failure test of various products. It can be combined with machine and fixture to form a small testing machine. Equipped with special host computer software, it can realize Data storage, analysis, export, query and printing functions, and is widely used in mass detection, physical experiment, engineering test and other fields.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display optional, display content can be flipped 180 degrees
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data, automatically calculate the average value, MAX Maximum and MIN Minimum of the stored data
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (0~ 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection

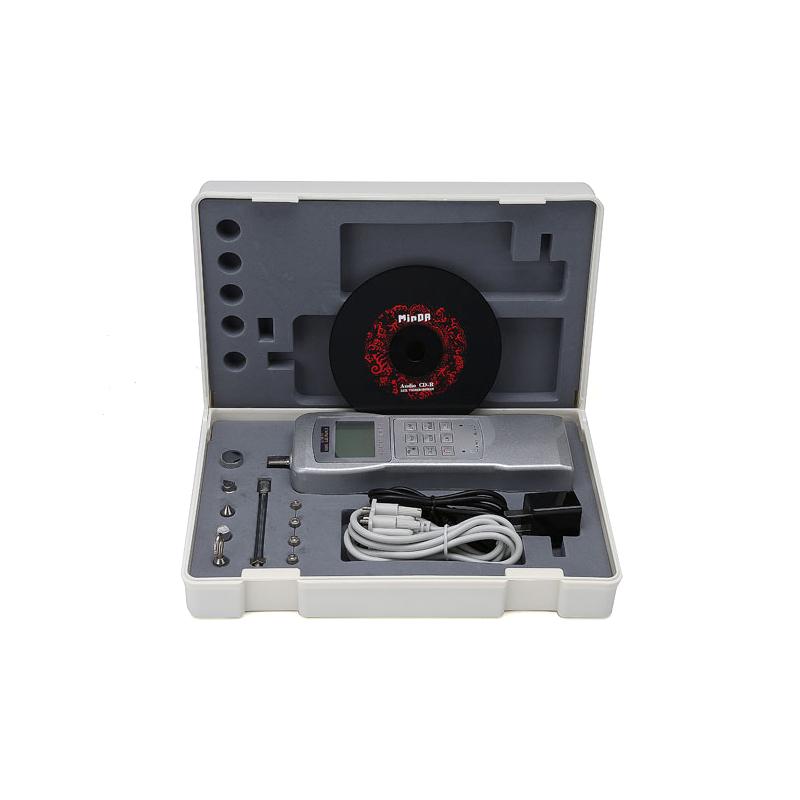

14. Special Instrument Toolbox with EVA Shockproof Encasement
15. Smart Charging for Safe Charging and Extended Battery life
16. With the electric testing device, it can realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
17. Host computer software: Chinese WINDOWS interface
18. Linear dispersion of multiple coordinates
19. Qualification judgment function, can do batch inspection pass rate statistics
20. Test data and Linear dispersion are automatically stored to the computer, and the number of storage is unlimited
21. Test data can be queried and exported in excel format
22. Test reports can be prepared and printed according to user requirements
Principle
The HF-2 Digital Display Force Gauge adopts electronic Sensor technology, which detects the applied push-pull force through the built-in Sensor, converts the mechanical force into an electrical signal, and displays the measurement results in digital form after processing. It has a variety of test modes such as real-time force tracking, peak holding, and first peak holding, which can accurately measure parameters such as push-pull load and insertion force.
Applications
Push-pull failure test, push-pull load test, insertion force test, mass test, physical experiment, engineering test
Standards
JJG work dynamometer National Measurement verification regulations
Steps

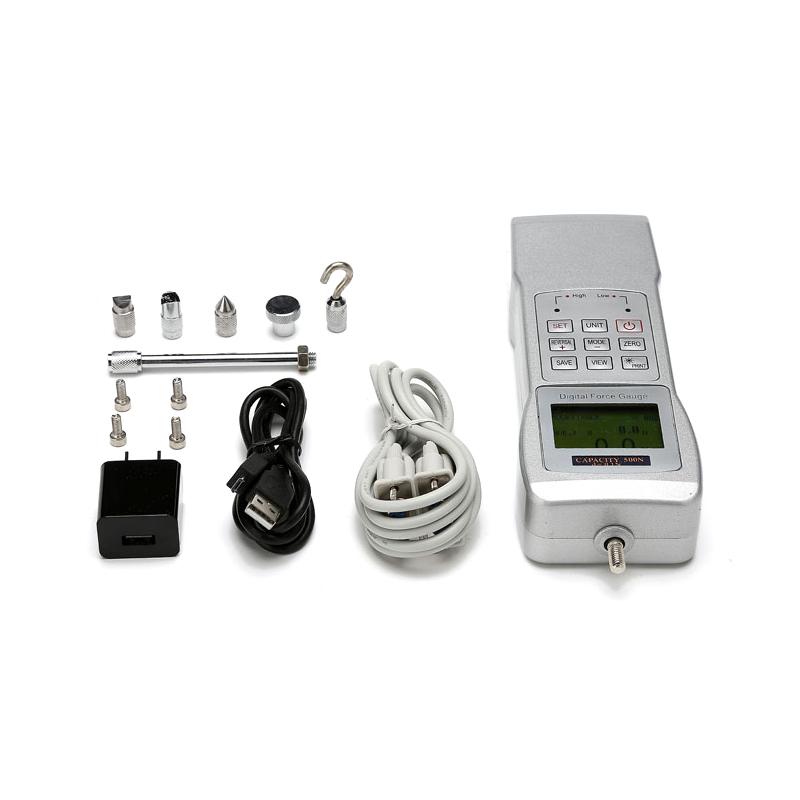

1. Connecting contacts Connecting rods and test fixtures
2. Turn on the power and select the display language and unit
3. Set the test mode as required (real-time force tracking, peak holding, first peak, button pressure-rebound mode)
4. Set the upper and lower limit comparison value, peak holding time, gravity acceleration value and other parameters
5. Perform the test operation and observe the display window reading
6. Test data is automatically stored and can be connected to the computer through the Communication interface
7. Data analysis, export and report generation using PC software
Notice
• The working environment should be free of vibration and corrosion medium
• Operating temperature range is 0~ 40 ℃
• Storage Temperature range -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• Avoid over-range use and pay attention to the limit protection function
• Charge with a dedicated charger
• Use a special instrument toolbox for transportation and storage
• Periodically calibrated to ensure Measurement accuracy
