Overview

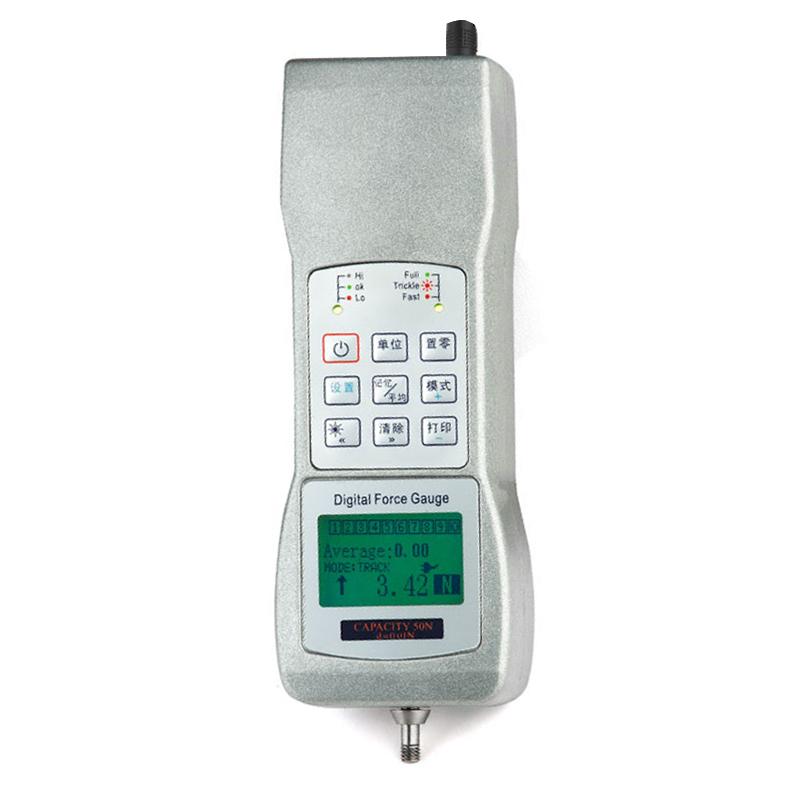

HF-100 small Force Gauge is a built-in Sensor type Force Gauge with a maximum load value of 100N. It is powered by nickel-metal hydride battery and has a liquid crystal digital display design, which can view test data in real time. It has a Communication interface to connect to the printer, supports the first peak hold mode, and can be freely switched in three units: N, kgf, and lbf. This product is a general-purpose Portable tensile pressure measuring instrument. It adopts electronic Sensor technology and is suitable for tensile pressure load test, plug-in force test, failure test, etc. of various products. It can be combined with a machine and a fixture to form a small testing machine. It has the advantages of high accuracy, easy operation, high Sensitivity, and reliable data.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English optional, display content can be flipped 180 degrees
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (0~ 99 minutes)
13. Limit protection: over-range sound alarm and mechanical two-level limit protection

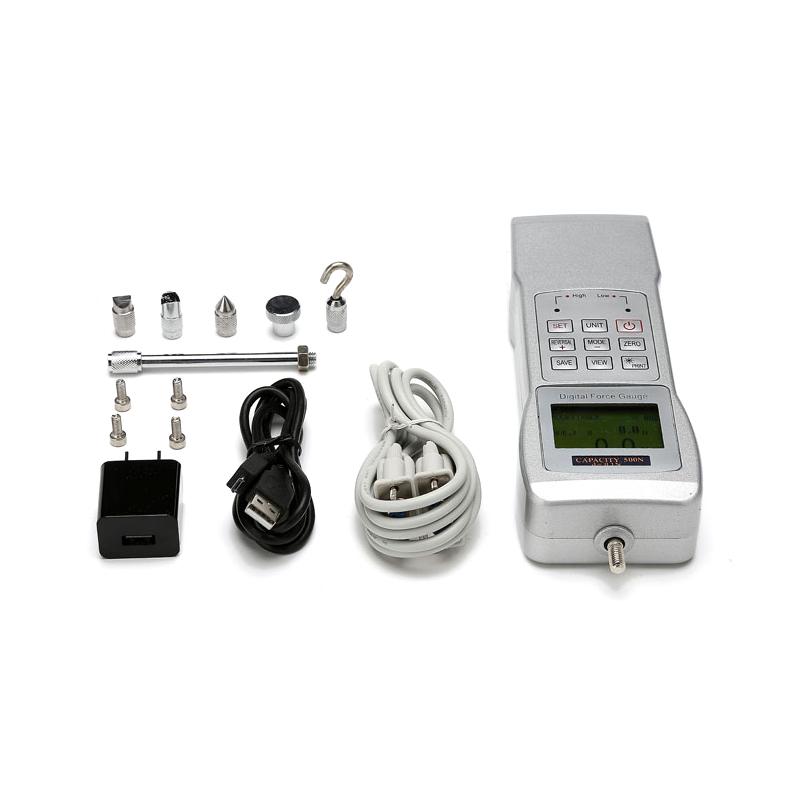

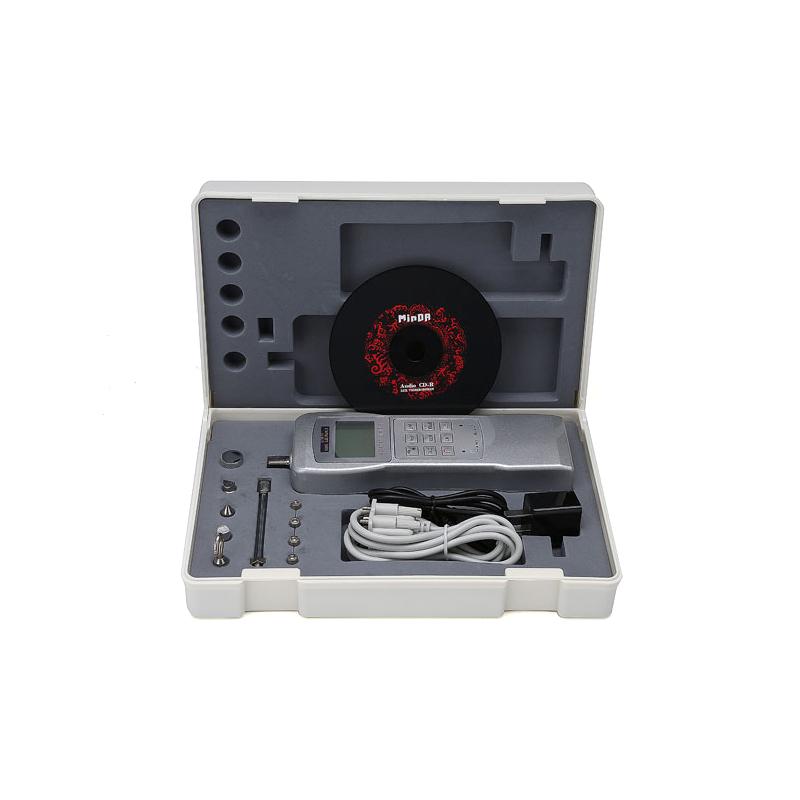

14. Special Instrument Toolbox with EVA Shockproof Encasement
15. Use intelligent charging, safe charging to extend Battery life
16. With the electric testing device to achieve a variety of practical functions
17. Host computer software: Chinese WINDOWS interface
18. Linear dispersion of multiple coordinates
19. Qualification judgment function: judge the pass rate according to the preset Standard value
20. Automatic storage of test data and Linear dispersion to computer
21. Test data can be queried and exported in excel format
22. Test reports can be prepared and printed according to user requirements
Principle
The HF-100 Small Force Gauge adopts electronic Sensor technology, which detects the push-pull signal through the built-in Sensor, and displays the measurement data in real time on the LCD screen after conversion by ADC. The instrument supports a variety of test modes, which can accurately measure mechanical parameters such as pull and thrust, and connects with external devices through Communication interface to realize data collection and analysis.
Applications
Mass inspection, physical experiment, engineering test
Standards
JJG work dynamometer National Measurement verification regulations
Steps
1. Measurement mode, force unit and other basic parameters
2. Start the test after setting the basic parameters, hold the Force Gauge firmly with both hands, and keep the direction of pushing or pulling force consistent with the axis of the test rod during the test process
3. After the test is completed, slowly unload the load, turn off the power supply, remove the test head, clean the Force Gauge and various components and put them back in the toolbox
Notice
• During the test process, the direction of pushing or pulling force should be consistent with the axis of the test rod
• Slowly unload the load after the test is completed
• Turn off the power after use
• Clean the test head after removing it
• The instrument should be put back in the special toolbox for storage
• Environmental requirements No vibration and corrosion around
• Operating temperature range 0~ 40 ℃
• Storage temperature is -20~ 70 ℃
• relative humidity range of 15%~ 80%
