Overview

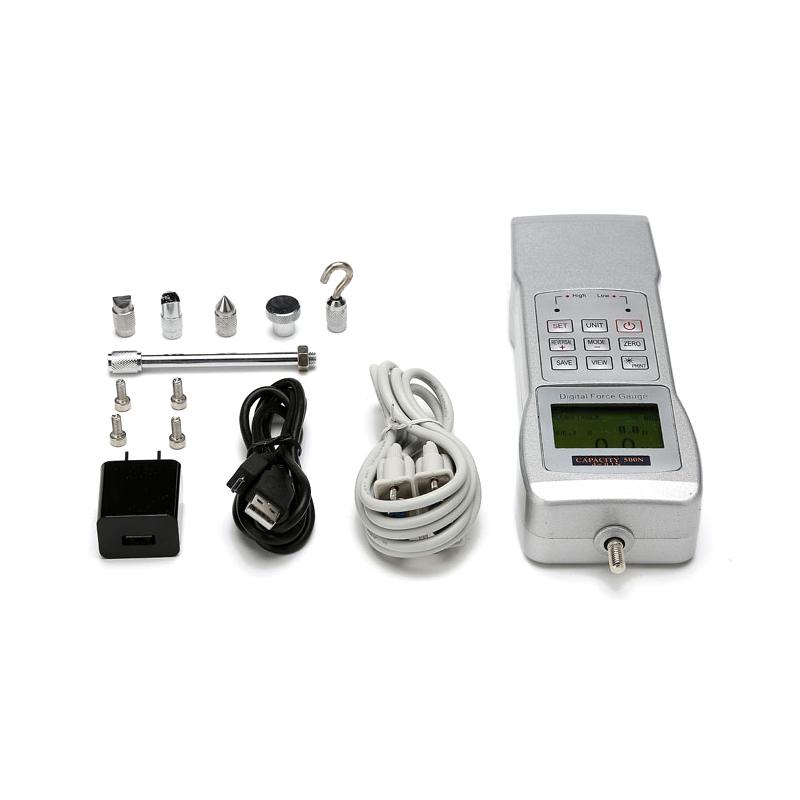

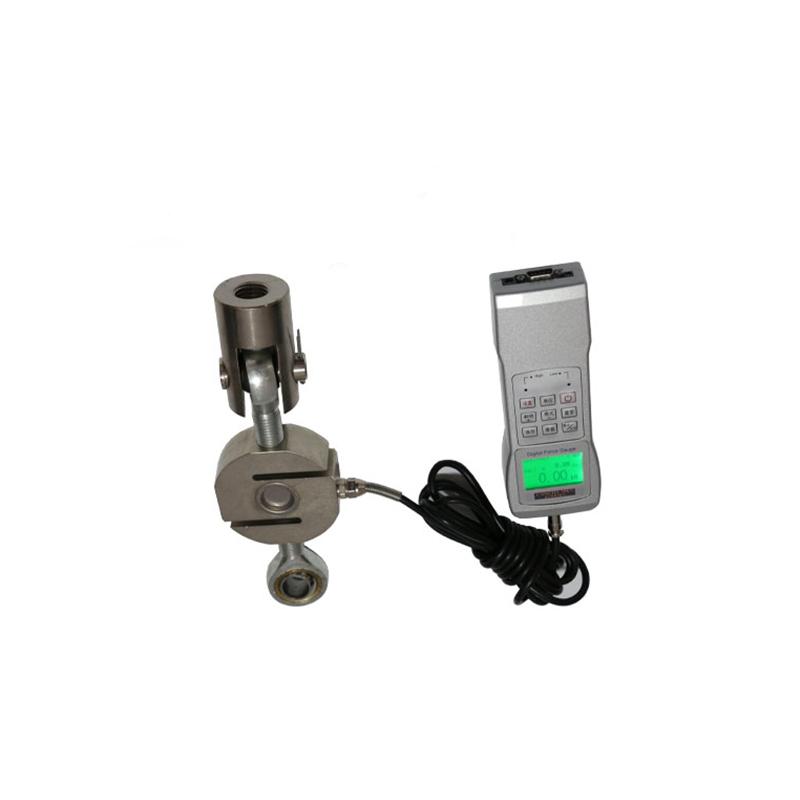

HBO HF-1k Force Gauge is a digital display Force Gauge with an external Sensor design, which is compact and easy to carry. As an upgrade of the HG series, it has a larger Storage capacity and a unique first peak holding function. The maximum load value is 1000N, the load Graduation is 0.5N, and it adopts electronic Sensor technology. It is suitable for tensile pressure load test, insertion force test and failure test. It can be combined with various machine fixtures to form a small testing machine. It has the advantages of high accuracy, easy operation, high Sensitivity and reliable data. It conforms to the National Measurement verification regulations of JJG working force gauge. Equipped with special host computer software, it can realize Data storage, analysis, export, query and printing functions.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface in Chinese and English is optional, and the display content can be flipped 180 degrees
4 point array LCD display with green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value for data qualification judgment, support sound alarm and level signal output
9. Store 200 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. The automatic shutdown time without operation can be set (0~ 99 minutes)
13. With over-range sound alarm and mechanical two-level limit protection

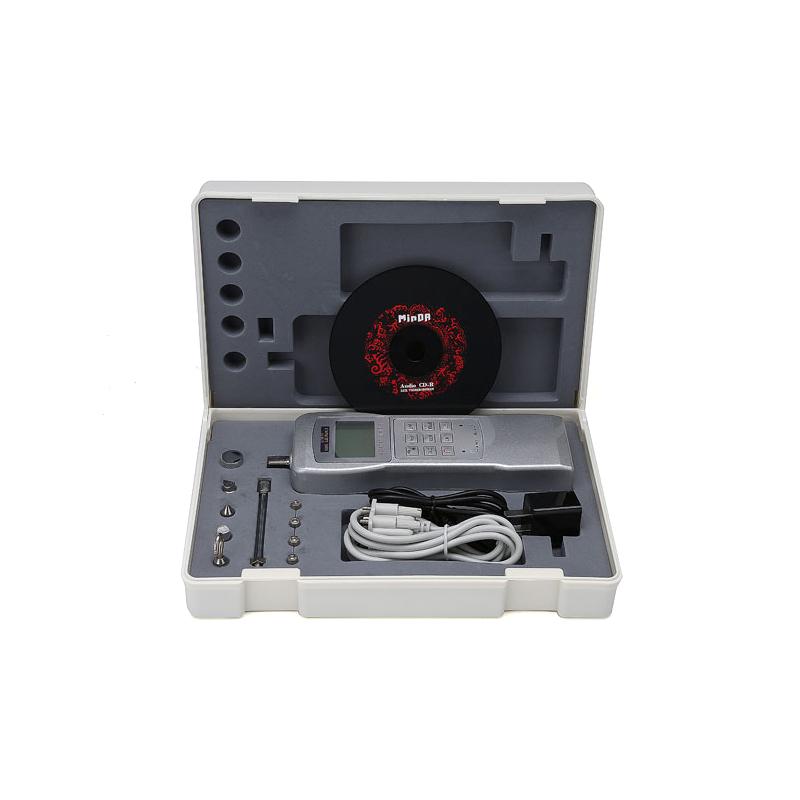

14. Special Instrument Toolbox with EVA Shockproof Encasement
15. Smart Charging System for Safe Charging and Extended Battery life
16. With the electric testing device, it can realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
17. Software support Chinese WINDOWS interface
18. Linear dispersion of test results
19. Qualification judgment function, which can detect the pass rate in batches
20. Test data and Linear dispersion are automatically stored to the computer in unlimited quantities
21. Test data can be queried and exported in excel format
22. Test reports can be prepared and printed according to user requirements
Principle
The HF-1k Force Gauge uses electronic Sensor technology for tensile pressure measurement. The external Sensor detects the change of force, converts the mechanical force into an electrical signal, and displays the measurement result in real time on the LCD screen after internal processing. The instrument supports four Operating Modes: Peak Hold Mode to record the maximum force value during the test; First Peak Hold Mode to record the first peak; Weight Tracking Mode to display the current force value change in real time; Key Special Mode to test key pressure and resilience.
Applications
Mass inspection, physical experiment, engineering test
Standards
JJG work dynamometer National Measurement verification regulations
Steps
1. Select the appropriate Measurement mode according to the test requirements
2. Connect Sensors and Test Fixtures
3. Set parameters such as unit, upper and lower limit comparison value, etc
4. Start testing and observe the display data
5. Save the data after the test is completed
6. Data analysis via Communication interface
Notice
• The working environment should be free of vibration and corrosion medium
• Operating temperature range is 0~ 40 ℃
• Storage Temperature range -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• Avoid over-range use and pay attention to limit protection
Recharge regularly to maintain battery performance
• Use specialized toolboxes for transportation and storage
• Ensure software compatibility when connecting to a computer
